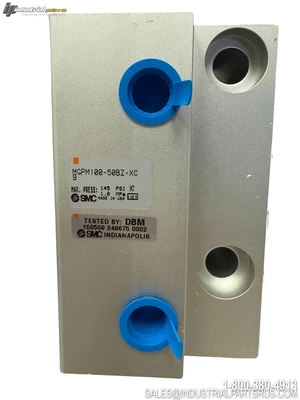

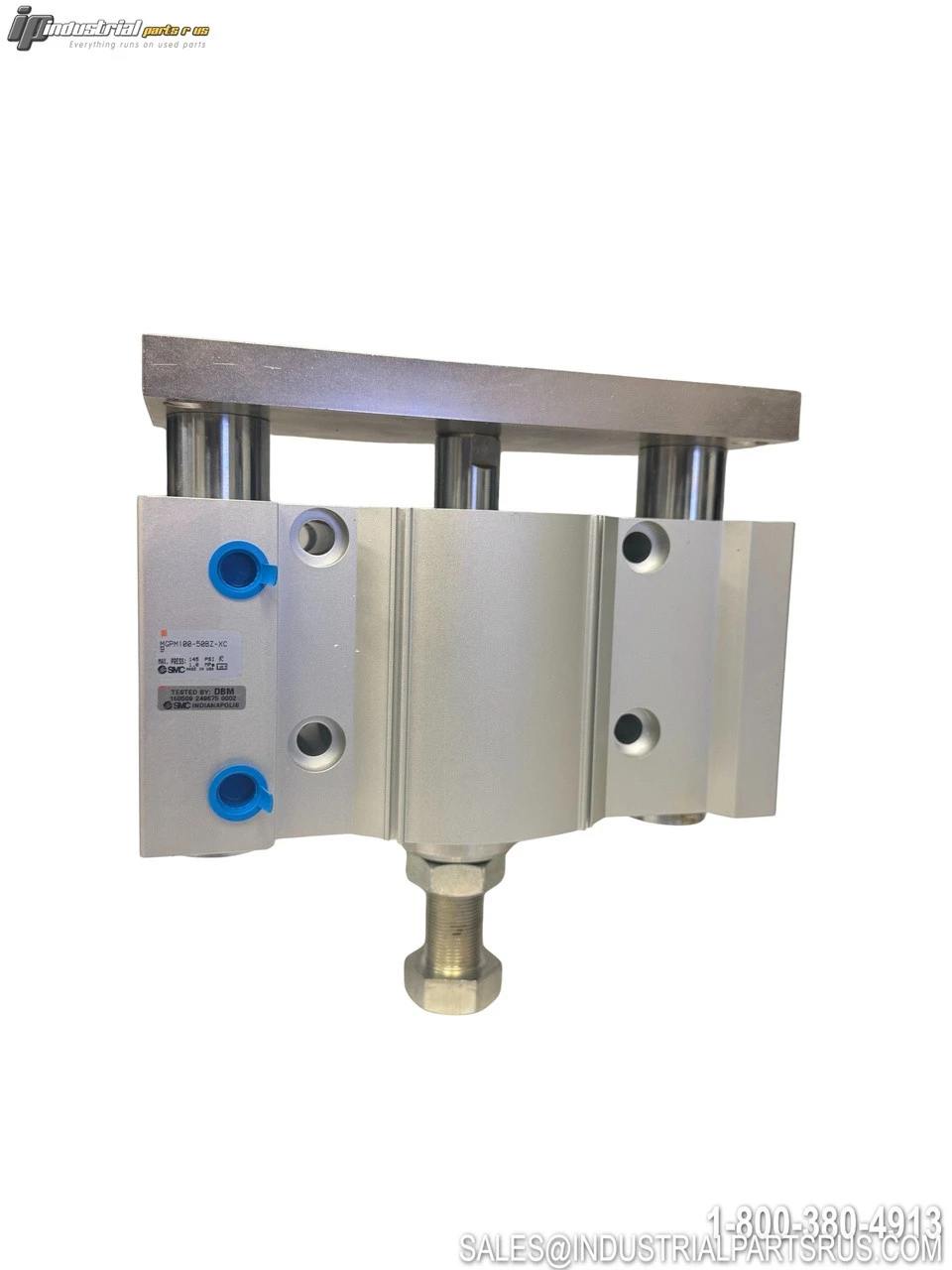

NEW SMC MGPM100-50BZ-XC
Overview
Description
The SMC MGPM100-50BZ-XC is an MGP Compact Guide Cylinder designed for pneumatic linear actuation applications. The MGPM is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator's rod and seals. The MGPM-Z is designed for high side load applications found in material handling, lifting and stopping and utilizes an ultra-compact design by incorporating the cylinder body as part of the guide body.
Specification
Value
Brand
SMC
Model/Part Number
MGPM100-50BZ-XC
Product Series
MGP Compact Guide Cylinder
Bore Diameter
100mm
Stroke Length
50mm
Cylinder Type
Double-acting Compact Guide
Bearing Type
Slide Bearing
Operating Pressure
0.1-1.0 MPa (14.5-145 psi)
Piston Speed
50-500 mm/s
Port Thread Type
Rc3/8" (per series standard)
Non-rotating Accuracy
±0.04° (100mm bore)
Operating Temperature
-10 to +60°C
Seal Material
NBR (Nitrile)
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 10.00 LBS | 10.00 LBS |
|---|
SKU: AI0390
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 10.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: MGPM100-50BZ-XC
Shelf: B-14
Bore Diameter: 100 mm
Model: MGPM100-50BZ-XC
MPN: MGPM100-50BZ-XC
Type: Pneumatic Cylinder
