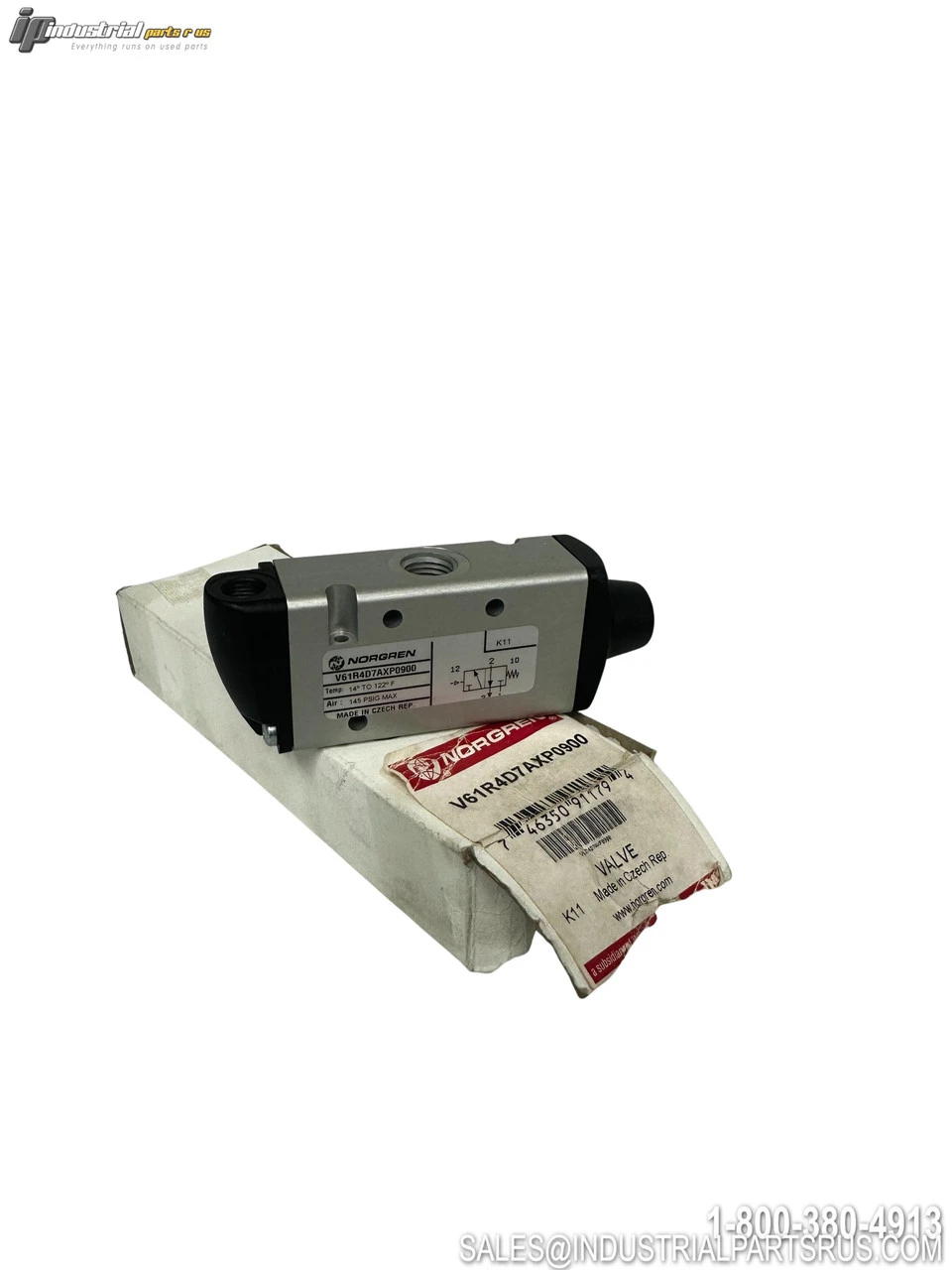

NEW NORGREN V61R4D7AXP0900
Overview
Description
The Norgren V61R4D7AXP0900 is a 3/2-way normally closed pneumatic valve from the V61 series, designed for manifold sub-base mounting with single air pilot actuation and spring return operation. This valve features aluminum bar stock construction with NBR and FPM seals for reliable performance in compressed air applications.
Specification
Value
Brand
Norgren
Model/Part Number
V61R4D7AXP0900
Series
V61
Valve Configuration
3/2-way
Normal Position
Normally Closed (NC)
Actuation Type
Air Pilot/Spring Return
Port Size
1/4" NPT
Number of Ports
3
Connection Type
Female Threaded NPT
Flow Coefficient (Cv)
1.32
Operating Pressure
-13 to +145 PSI
Pilot Pressure
+36 to +145 PSI
Body Material
Aluminum Bar Stock
Seal Material
NBR and FPM
Mounting Type
Manifold Sub-base
Preferred Orientation
Horizontal
Media
Compressed Air
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 3.00 LBS | 3.00 LBS |
|---|
SKU: AI0367
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Norgren
Part Number: V61R4D7AXP0900
Shelf: K-44
Model: V61R4D7AXP0900
MPN: V61R4D7AXP0900
Type: Pneumatic Valve
