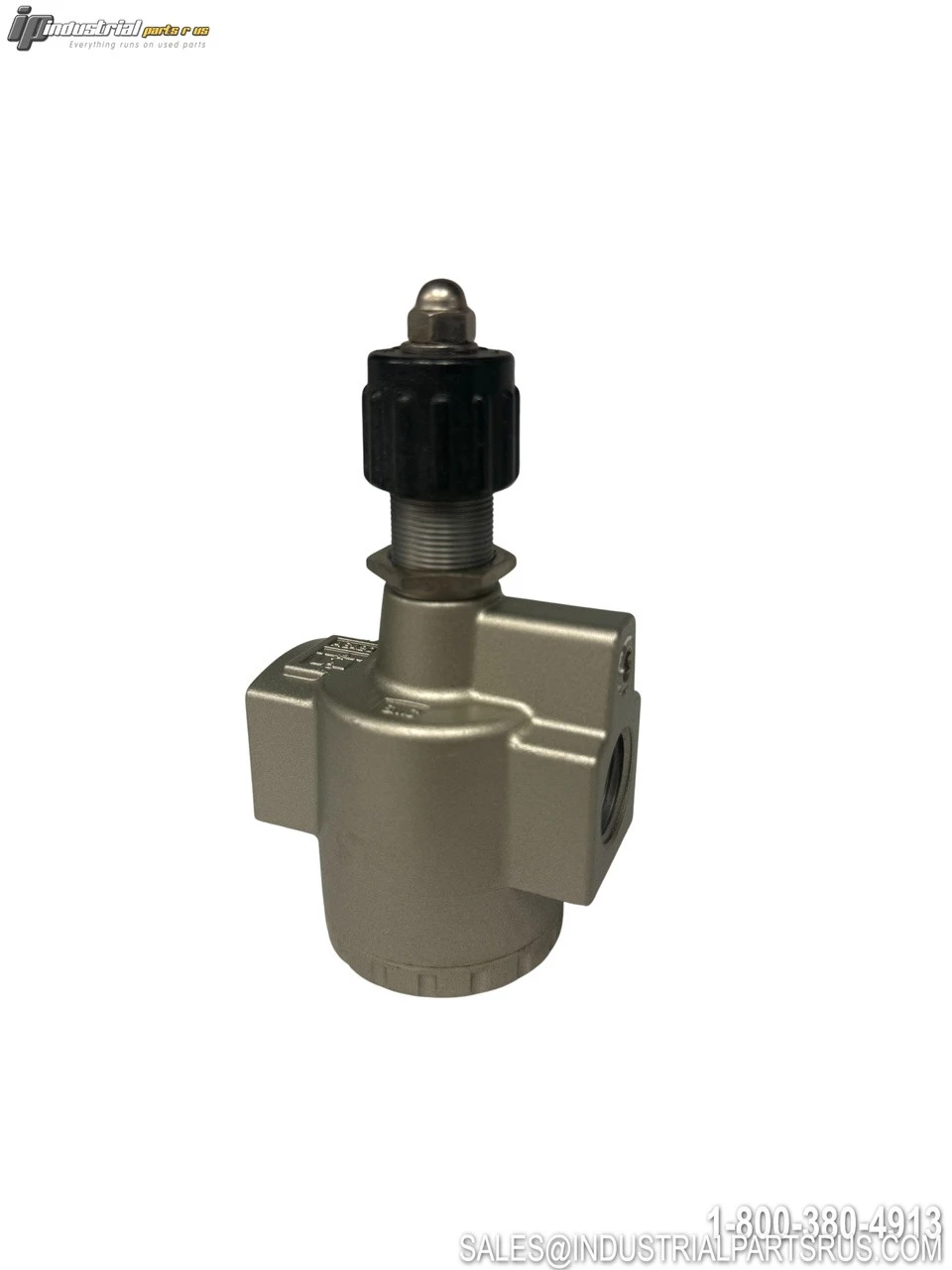

NEW SMC AS420-N04

The SMC AS420-N04 is a precision pneumatic speed controller designed for large flow applications with in-line configuration. This manual 2-way flow control valve features brass construction with 1/2 NPT female threaded connections and provides precise speed control for pneumatic systems. The compact design includes needle valve operation with locking mechanism for reliable flow regulation.
Specification
Value
Brand
SMC
Model/Part Number
AS420-N04
Product Type
Speed Controller Flow Control Valve
Series
AS Series
Construction Style
Large Flow In-Line
Body Size
1/2 Standard
Port Size
1/2
Thread Standard
NPT
Input Port Type
1/2 Female NPT Threaded
Output Port Type
1/2 Female NPT Threaded
Body Material
Brass
Seal Material
Nitrile (NBR)
Valve Function
Needle
Metering
Meter Out
Operating Pressure Range
0.1 to 1.0 MPa
Maximum Operating Pressure
1.0 MPa
Minimum Operating Pressure
0.1 MPa
Proof Pressure
1.5 MPa
Operating Temperature Range
-5 to +60°C
Operating Medium
Air/Fluid
Flow Coefficient (Cv)
26 mm²
Overall Width
28.5 mm
Overall Height
55.6 mm
Standards Met
JIS
Port Connection Type
Threaded
We warranty all items for 30 days from date of purchase.

SKU: AI0397
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: SMC
Part Number: AS420-N04
Shelf: J-38
Model: AS420-N04
MPN: AS420-N04
Type: Pneumatic Valve
