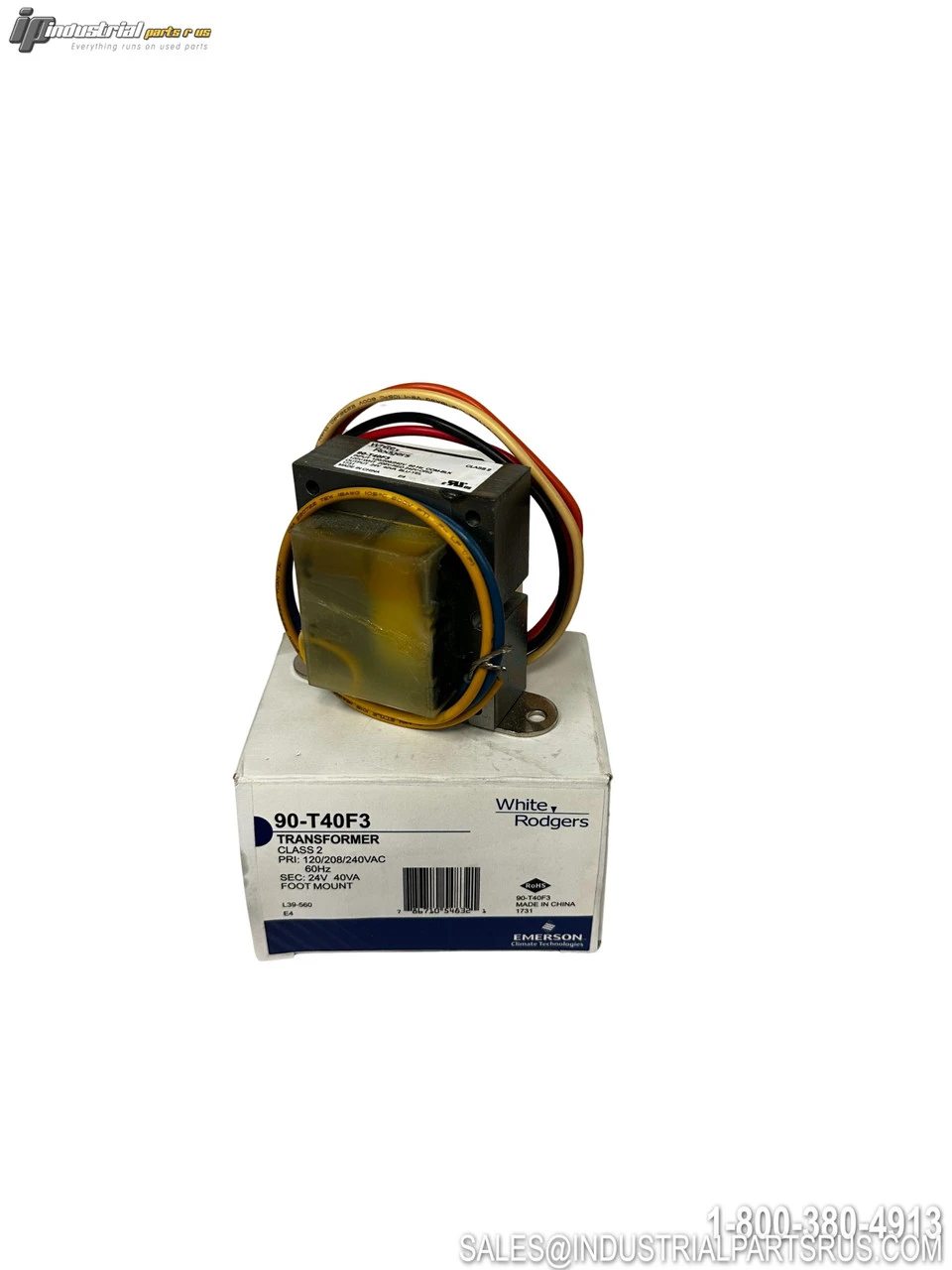

The White Rodgers 90-T40F3 is a Class 2 energy limiting transformer designed for industrial HVAC controls and applications. This 40VA transformer features color-coded primary leads for easy installation and a foot-mounted open construction design that provides versatile mounting options. It is commonly used in heating, ventilation, and air conditioning control systems where reliable 24VAC power is required.
Specification
Value
Brand
White Rodgers
Model/Part Number
90-t40f3
Type
Transformer
Series
90T
VA Rating
40VA
Primary Voltage
120/208/240VAC
Secondary Voltage
24VAC
Secondary Current
1.67A
Frequency
50/60Hz
Mounting Type
Foot Mount
Construction
Open Construction
Classification
Class 2
Connection Type
Lead Wires
Features
Energy Limiting, Color Coded Primary Leads
Application
HVAC Controls
UL File Number
E33334
Replacement For
S84Z-401
We warranty all items for 30 days from date of purchase.
| Weight | 3.00 LBS | 3.00 LBS |
SKU: AI0394
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: Foot Mount
Country/Region of Manufacture: China
Full Load Amps: 1.67A
Manufacturer: White Rodgers
Part Number: 90-T40F3
Series: 90T
Shelf: J-38
Model: 90-T40F3
MPN: 90-T40F3
Type: Transformer
