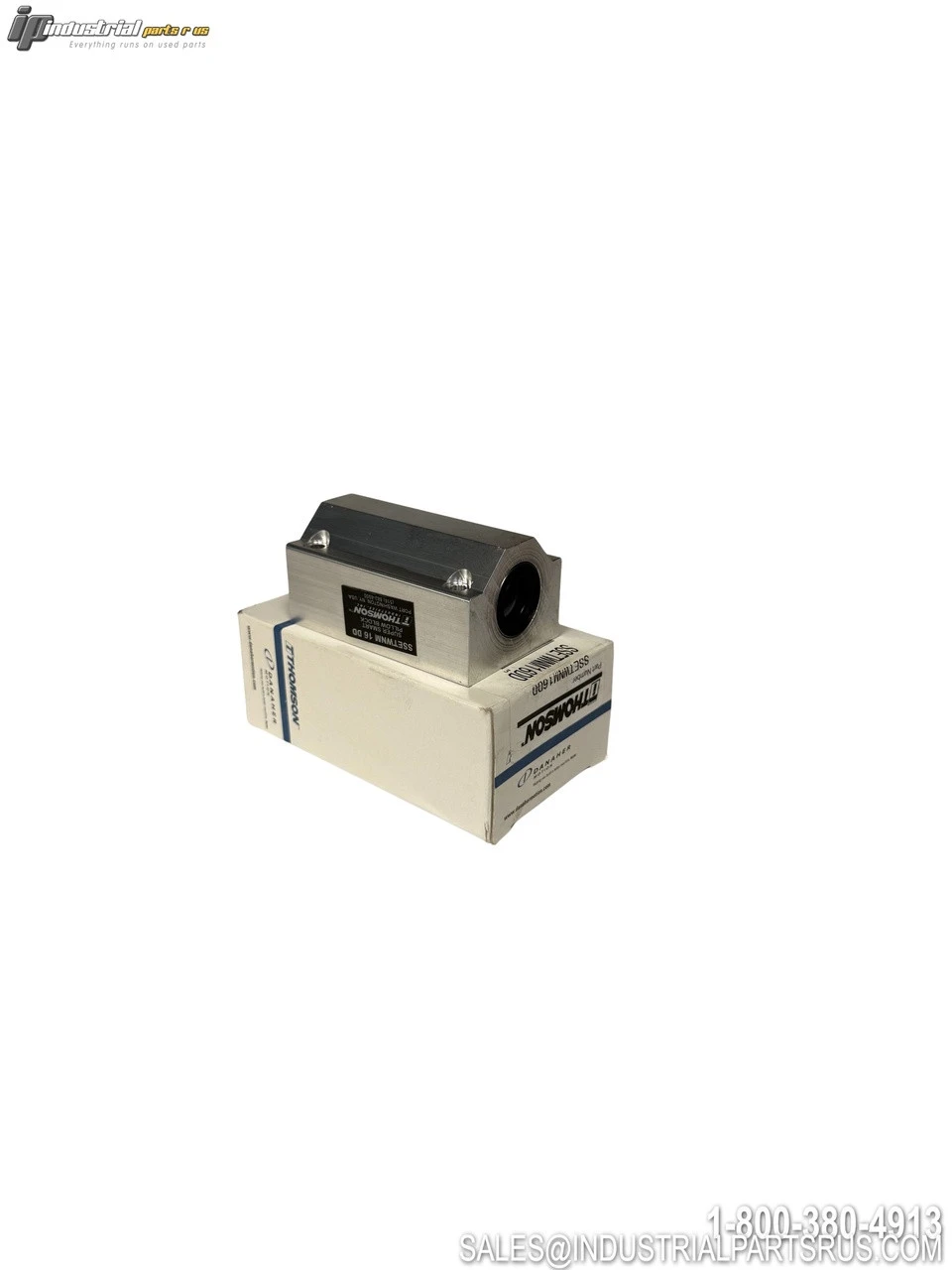

The Thomson SSETWNM16DD is a Super Smart Ball Bushing linear bearing in a closed twin pillow block configuration. This advanced linear bearing provides superior performance with twice the load capacity and eight times the travel life compared to standard ball bushing bearings. It features integral seals and is designed for end supported shaft applications.
Specification
Value
Brand
Thomson
Model/Part Number
SSETWNM16DD
Manufacturer
Thomson Industries
Bearing Type
Super Smart Ball Bushing
Configuration
Closed Twin Pillow Block
Bore Diameter
16mm
Overall Height
42mm
Overall Width
53mm
Dynamic Load Capacity
4400 lbs
Application
End Supported Shafting
Shaft Class
MM Class (Metric)
Self-Aligning
Yes
Seals
Integral Double Acting
UNSPSC
31171506
We warranty all items for 30 days from date of purchase.
| Weight | 3.00 LBS | 3.00 LBS |
SKU: AI0372
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Thomson
Part Number: SSETWNM16DD
Shelf: K-42
Model: SSETWNM16DD
MPN: SSETWNM16DD
Type: Linear Bearing
