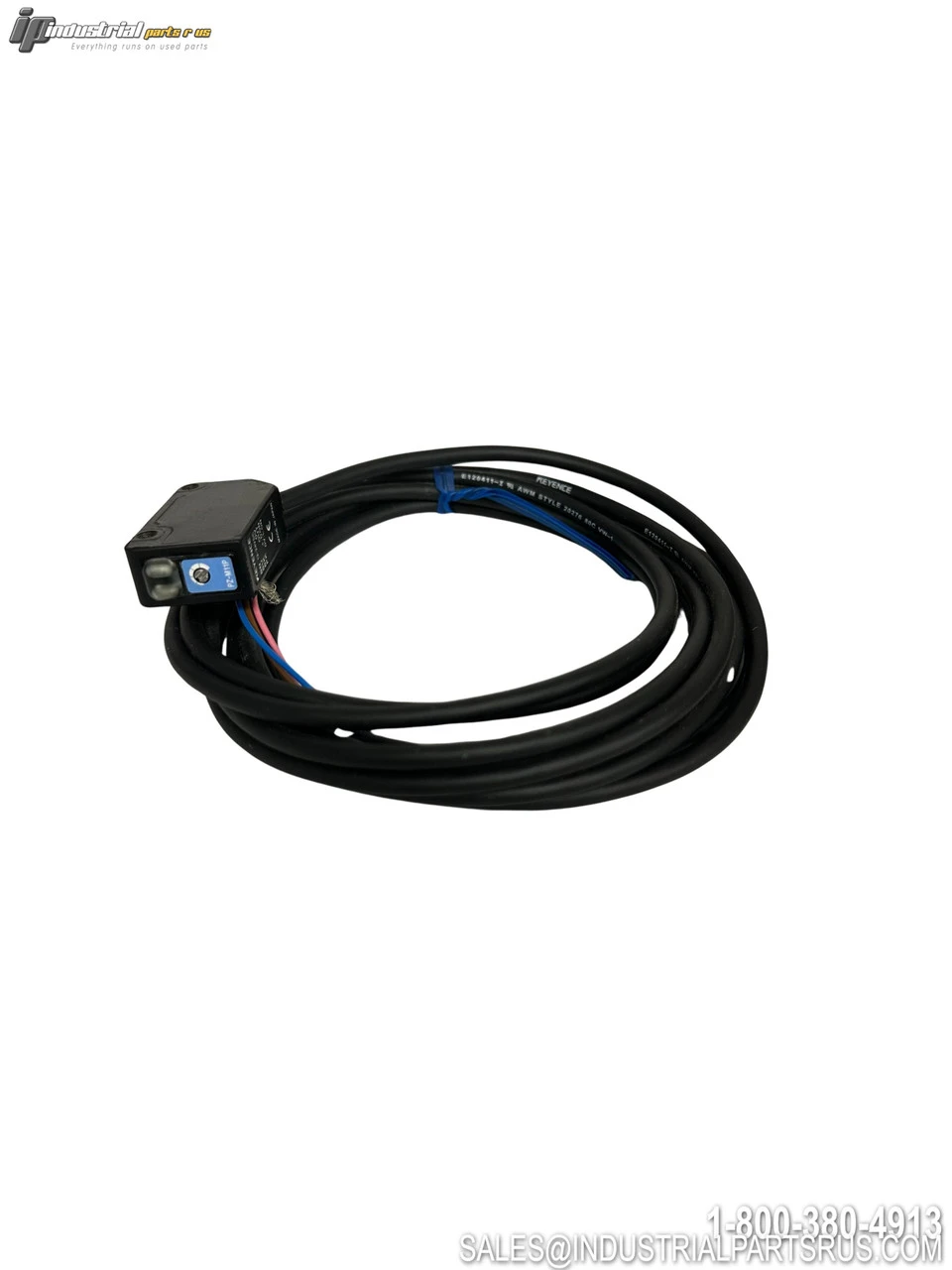

USED KEYENCE PZ-M11P

The Keyence PZ-M11P is a square diffuse reflective photoelectric sensor from the PZ-V/M series. This intelligent sensor features a Position Sensitive Detector (P.S.D.) and Automatic Power Reinforcement circuit (A.P.R.) that provides stable detection regardless of target color, surface finish, or angle. The sensor includes adjustable field background suppression technology and light/dark programmable operation modes.
Specification
Value
Brand
Keyence
Model/Part Number
PZ-M11P
Sensor Type
Diffuse Reflective
Output Type
3-Wire PNP
Power Supply
12 to 24 VDC ±10%
Power Consumption
30 mA max.
Sensing Range
100 mm (3.94 in)
Operating Temperature
-20 to 55°C (-4 to 131°F)
Body Shape
Rectangular
Beam Type
Visible
Mode
Light/Dark Programmable
Optical Technology
Adjustable Field Background Suppression
Electrical Connection
2m Cable
Dimensions (H x L x W)
34.8 x 20 x 10.8 mm (1.37" x 0.79" x 0.43")
IP Rating
IP-67
Series
PZ-V/M
We warranty all items for 30 days from date of purchase.

SKU: AI0400
UPC: 679523686246
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686246
Output Type: PNP
Sensor Type: Diffuse Reflective
Country/Region of Manufacture: Japan
Full Load Amps: 30 mA max.
Manufacturer: Keyence
Enclosure Type: IP-67
Part Number: PZ-M11P
Shelf: O-7
Model: PZ-M11P
MPN: PZ-M11P
Type: Photoelectric Sensor
