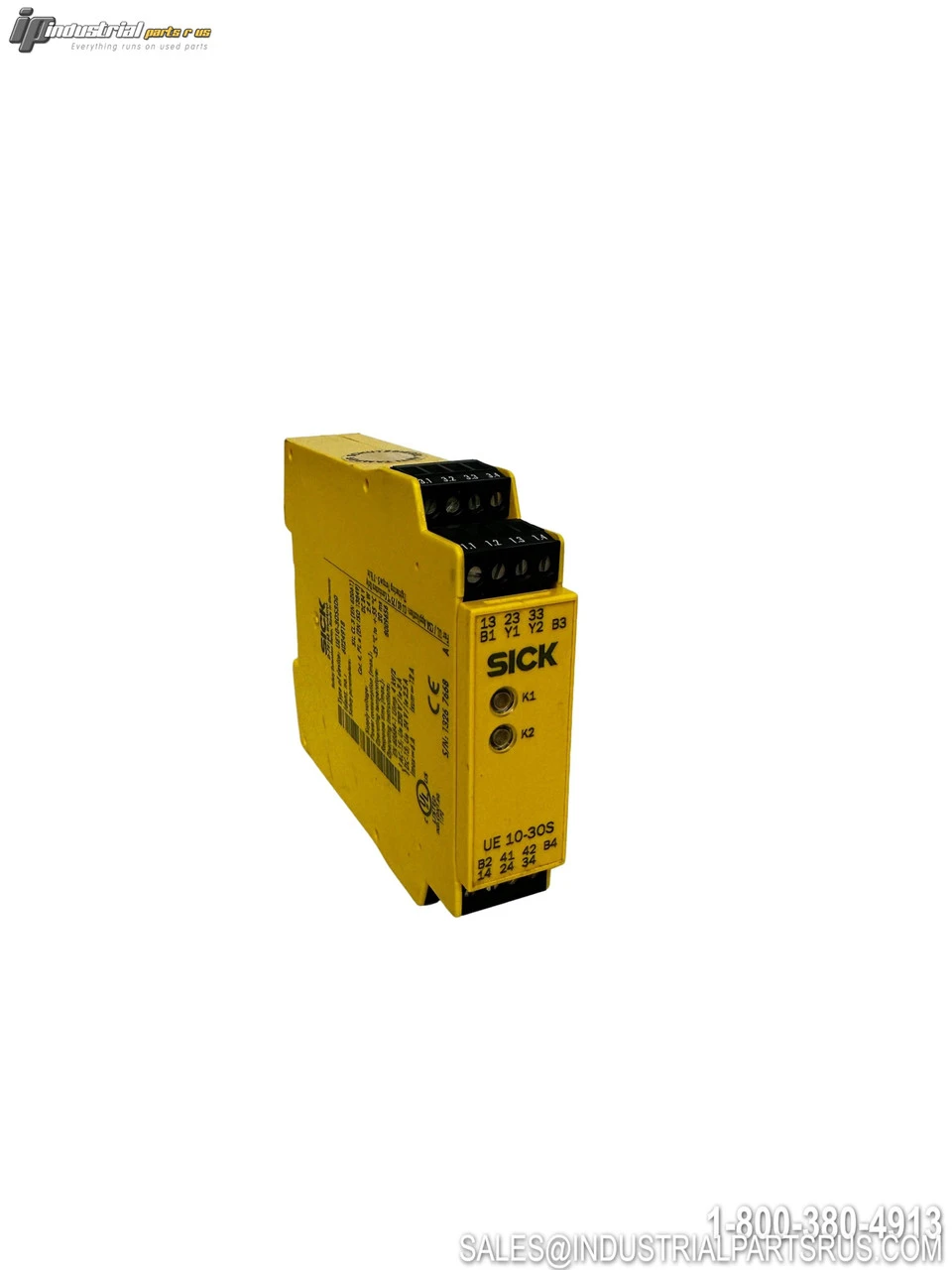

USED SICK UE10-3OS3D0

The SICK UE10-3OS3D0 is a safety relay designed as a contact expansion module for OSSD (Output Signal Switching Device) applications. This safety relay features plug-in screw-type terminals, 3NO (normally open) and 1NC (normally closed) contacts, and is suitable for interfacing with SICK light curtains and laser scanner products. It provides SIL3 safety integrity level with 20ms response time and includes 3 N/O enabling current paths, 1 N/C signaling current path, and 1 N/C feedback current path.
Specification
Value
Brand
SICK
Model/Part Number
UE10-3OS3D0
Manufacturer Part Number
6024918
Series
UE10-3OS
Input Voltage
24VDC
Current Type
DC
Input Current
≤ 500mA
Power Consumption
2.4W
Connection Type
Plug-in screw-type terminals
Contact Configuration
3NO, 1NC
Switching Current
6A
Switching Voltage
230VAC / 30VDC
Contact Material
Silver Alloy, Gold Flashed
Rated Insulation Voltage
300VAC
Safety Integrity Level
SIL3
Response Time
20ms
Input Circuit
Single or Dual Channel
Dimensions (W x H x D)
22.5mm x 114mm x 96.5mm
Weight
0.2kg
Mounting Style
DIN Rail
IP Rating
IP20
Reset/Restart
Automatic
We warranty all items for 30 days from date of purchase.

SKU: AI0365
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Mounting Style: DIN Rail
Current Rating: 6 A
Full Load Amps: 6A
Application: Industrial Safety Systems
Manufacturer: SICK
Part Number: UE10-3OS3D0
Shelf: K-45
Model: UE10-3OS3D0
Coil Voltage: 24 V DC
MPN: UE10-3OS3D0
Type: Safety Relay
