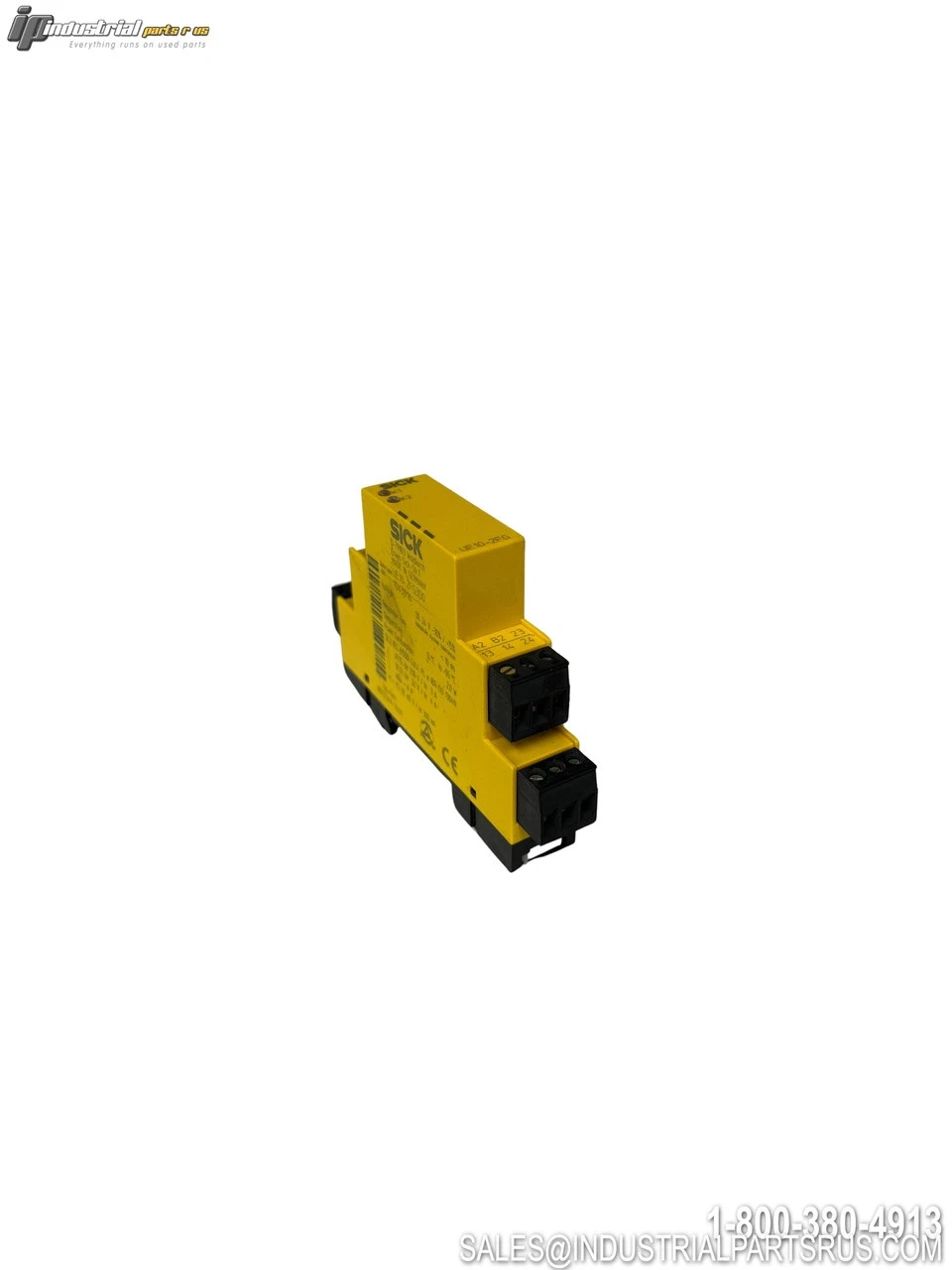

USED SICK UE10-2FG3D0

The SICK UE10-2FG3D0 is a high-performance safety relay designed for industrial safety applications requiring SIL 3 and Performance Level e compliance. This device provides secure switching and monitoring with external device monitoring capabilities for comprehensive safety system integration.
Specification
Value
Brand
SICK
Model/Part Number
UE10-2FG3D0
Manufacturer
SICK AG
SICK Part Number
1043916
Coil Voltage
24VDC
Contact Configuration
2NO + 1NC
Input Current
≤50 mA
Response Time
≤10 ms
Reset Time
≤30 ms
Safety Integrity Level
SIL 3 (IEC 61508)
Performance Level
PL e (EN ISO 13849)
Safety Category
Category 4 (EN ISO 13849)
Contact Type
Positively driven
Contact Material
Silver alloy, gold flashed
Switching Voltage
10 V AC/DC...250 V AC/DC
Current Rating
3A (230VAC), 4A (24VDC)
Switching Power
≤1,500 VA (AC), ≤200 W (DC)
Mounting Type
DIN Rail
Connection Type
M12 Male Connector, 5-Pin
Cable Length
1.05m
Operating Temperature
0°C to +55°C
IP Rating
IP20
Width
17.8mm
Height
105.5mm
Depth
89.8mm
We warranty all items for 30 days from date of purchase.

SKU: AI0381
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: SICK
Part Number: UE10-2FG3D0
Shelf: K-45
Model: UE10-2FG3D0
MPN: UE10-2FG3D0
Type: Safety Relay
