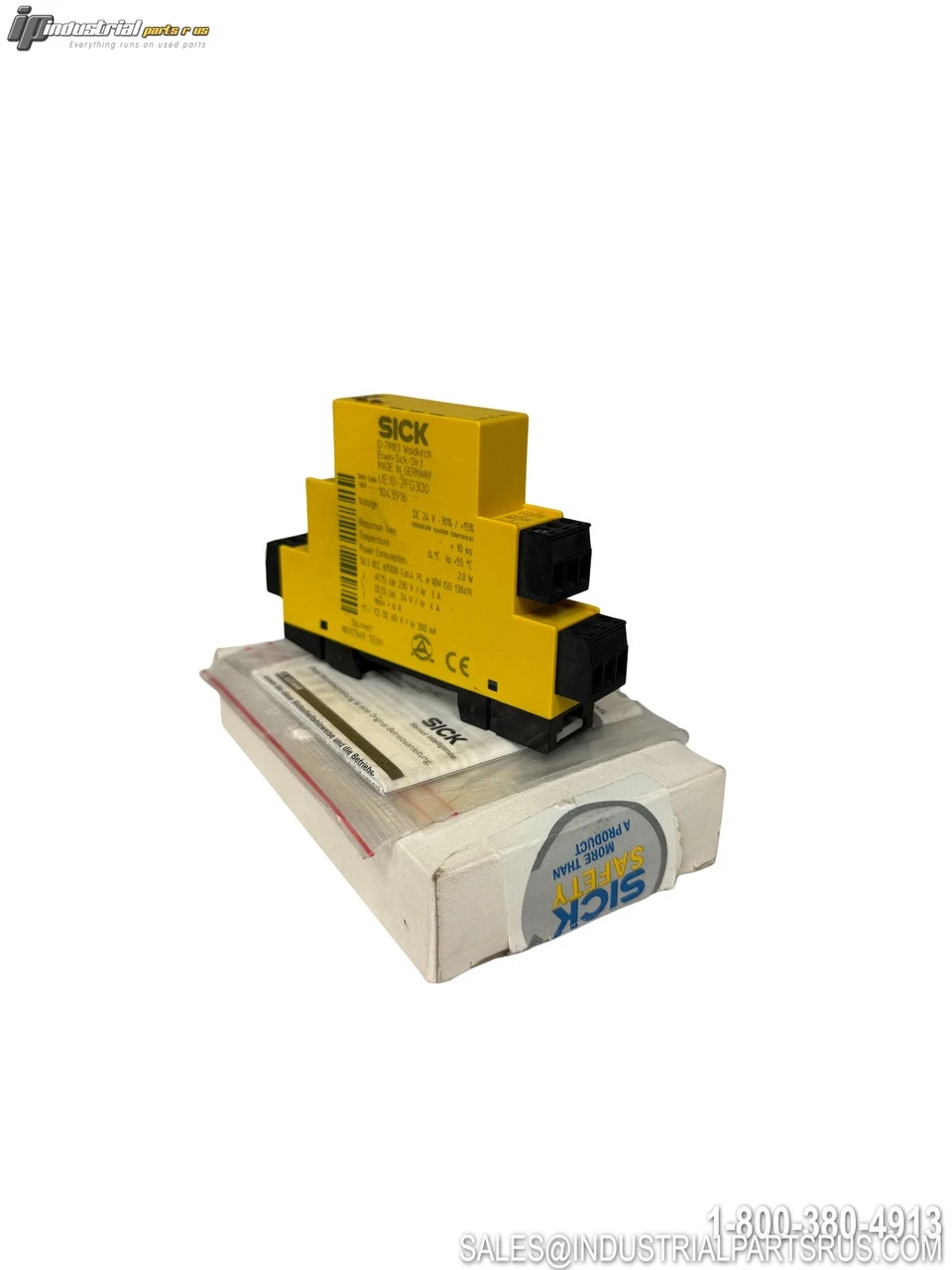

NEW SICK UE10-2FG3D0

The SICK UE10-2FG3D0 is a professional-grade safety relay designed for critical safety applications in industrial automation. This relay features 2 normally open enabling current paths and 1 normally closed feedback current path for external device monitoring (EDM). It meets the highest safety standards with SIL 3 certification per IEC 61508 and Category 4 per EN ISO 13849, making it suitable for demanding safety-critical applications.
Specification
Value
Brand
SICK
Model/Part Number
UE10-2FG3D0
Manufacturer Part Number
1043916
Input Voltage
24VDC (16.8-27.6VDC)
Input Current
≤50mA
Number of Enabling Current Paths
2 (Normally Open)
Number of Feedback Current Paths
1 (Normally Closed)
Contact Type
Positively Driven
Contact Material
Silver Alloy, Gold Flashed
Switching Voltage - Enabling Path
10-250V AC/DC
Switching Voltage - Feedback Path
0.1-60V AC/DC
Current Loading - Enabling Path
10mA-6A
Current Loading - Feedback Path
1mA-300mA
Switching Power
≤1,500VA (AC), ≤200W (DC)
Rated Operating Current
3A (230VAC), 4A (24VDC)
Response Time
≤10ms
Reset Time
≤30ms
Test Pulse Width
≤1ms
Safety Integrity Level
SIL 3 (IEC 61508)
Safety Category
Category 4 (EN ISO 13849)
Performance Level
PL e (EN ISO 13849)
Rated Insulation Voltage
300VAC
Rated Impulse Withstand Voltage
4kV
Enclosure Rating
IP20 (Clamps), IP40 (Housing)
Operating Temperature
0°C to 55°C
Terminal Type
Plug-in Screw Type
Mounting
DIN Rail
Weight
134.3g
Mechanical Life
1 x 10⁷ Switching Cycles
We warranty all items for 30 days from date of purchase.

SKU: AI0382
UPC: 679523686208
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Mounting Style: DIN Rail
Country/Region of Manufacture: Geermany
Full Load Amps: 2 (Normally Open)
Manufacturer: SICK
Enclosure Type: IP20 (Clamps), IP40 (Housing)
Part Number: UE10-2FG3D0
Shelf: K-45
Model: UE10-2FG3D0
Coil Voltage: 24VDC
MPN: UE10-2FG3D0
Type: Safety Relay
