| Rect-Cap (H) | 4" | 101.6 mm |
| Rect-Cap (W) | 4.7" | 119.38 mm |
| Power | 1.6 hp | 1.2 kW |
| Blade Width | 0.5" | 12.7 mm |

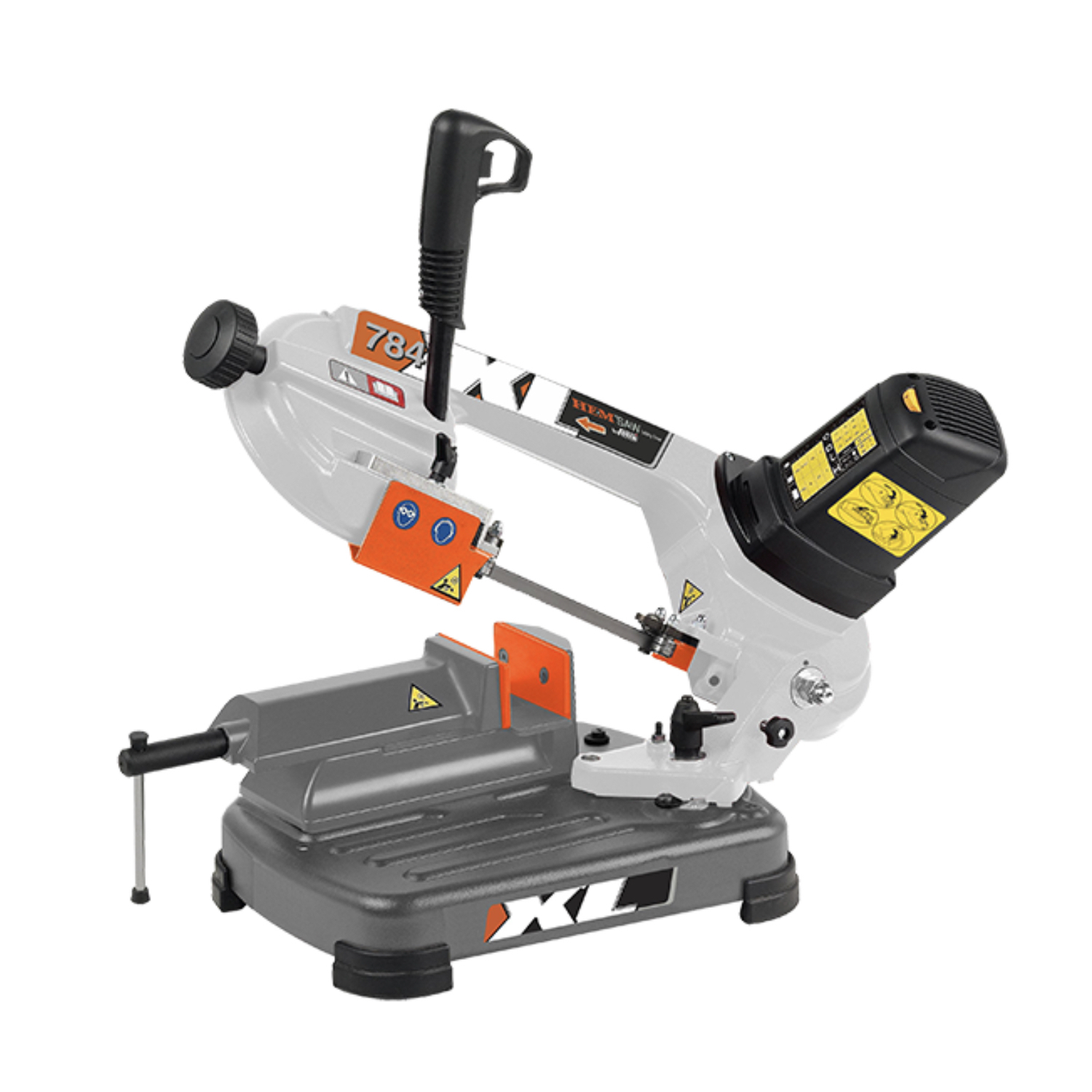

BRAND: HE&M SAW
MODEL: 784XL
TYPE: BANDSAW, BENCH TOP
Main Capacity: 0-4.7" W x 0-4" H
Blade: 4’-8" L x .5" H x .025"
Motor: 1.6 HP
Square Capacity - 4" (Square)
Round Capacity - 4.7" (Diameter)
Bar-feed - N/A
Operation Type - Manual Pull-Down
Power Source - 115V Electrical Motor Requirement
Bandsaw Blade Speed - Variable
Bundle Cut? - No
Weight - 39 lbs
One-Way 45° Miter
Vise - Manual
Manual Pull-Down
Manual Miter
Easy Clutch Blade Tension
Adjustable 19.6" Stop
Dry Cutting
Easy to Transport w/ Arm Locking Pin.
Variable Blade Speed
115V Electrical Motor Requirement
1.5 HP Motor - 10.4 Amps
Options:
Work Table (Allows Saw to be Used as a Vertical Saw)
Gonimeter
Jobby Stand
