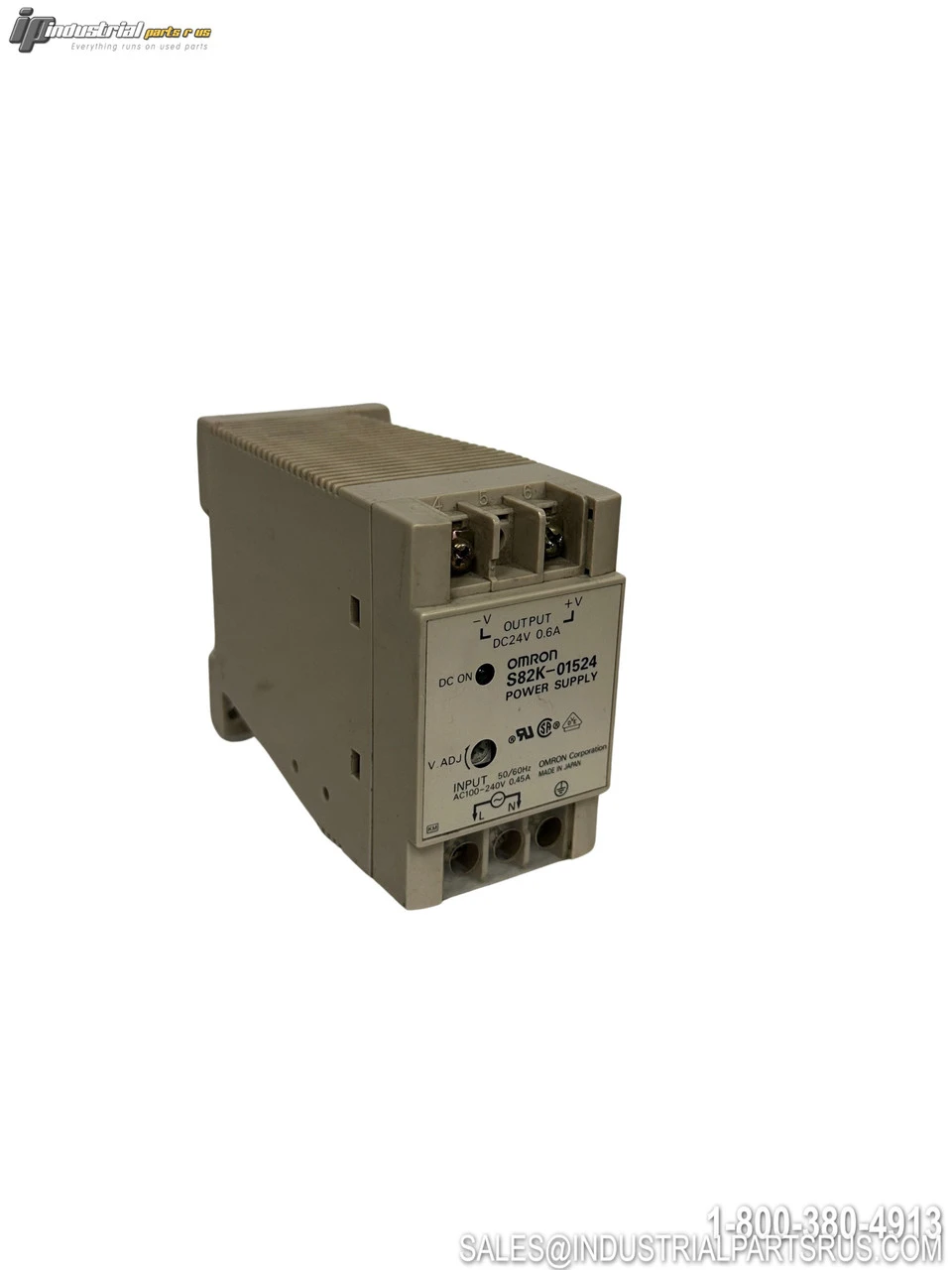

The OMRON S82K-01524 is a compact 15W switching power supply designed for DIN rail mounting in industrial control applications. This single-output power supply converts 100-240VAC input to a regulated 24VDC output with 600mA current capacity, featuring undervoltage detection, LED indicators, and terminal block connections for reliable operation monitoring.
Specification
Value
Brand
OMRON
Model/Part Number
S82K-01524
Type
Switching Power Supply
Power Rating
15W
Output Voltage
24VDC
Output Current
600mA
Input Voltage
85V AC to 264V AC / 90V DC to 350V DC
Input Frequency
50/60 Hz
Number of Outputs
1
Mounting Type
DIN Rail
Length
95mm
Width
45mm
Height
75mm
Operating Temperature Range
-10°C to +60°C
Line Regulation
0.5%
Load Regulation
1.5%
Output Ripple and Noise
2% pk-pk
Efficiency
66%
Power Factor Correction
No
Undervoltage Alarm
Yes
Series
S82K
Approvals
CE, cUL, UL, VDE
RoHS Compliant
Yes
We warranty all items for 30 days from date of purchase.
| Weight | 1.00 LBS | 1.00 LBS |
SKU: AI0377
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Japan
GTIN: 679523686161
Output Type: Fixed
Manufacturer: Omron
Part Number: S82K-01524
Shelf: K-21
Model: S82K-01524
MPN: S82K-01524
Type: Switching Power Supply
