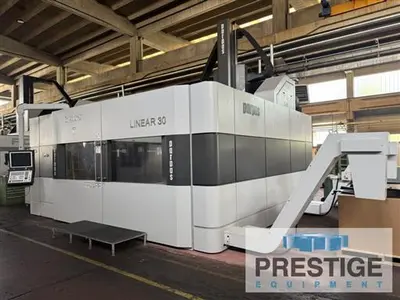

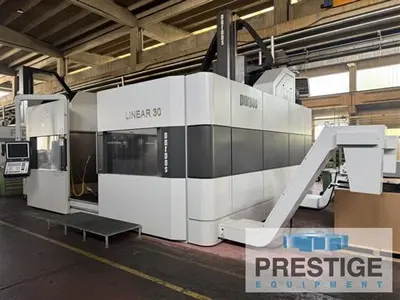

USED 2021 PARPAS DIAMOND LINEAR 30 5-AXIS

CAPACITY:
X-Axis, Longitudinal: 118.11”
Y-Axis, Transversal Travel: 102.36”
Z-Axis, Vertical Travel: 55.11"
C-Axis, Ram Rotation: .001 Degrees
C-Axis, Ram Range: +/- 370 Degree
A-Axis, Head Sweep: +/- 110 Degrees
Work Table: 122.04" x 110.23"
Spindle Speeds: 20,000 RPM
Spindle taper: HSK-63-A
Spindle Motor: 52 HP
Feed Rates: 236.232"
Approximate Machine Dimensions: 296.4" x 259.84" x 226.9"

Equipped With:

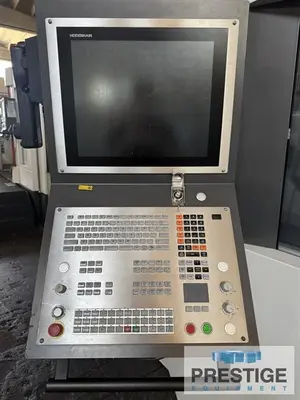

Heidenhain TNC 640 CNC Control

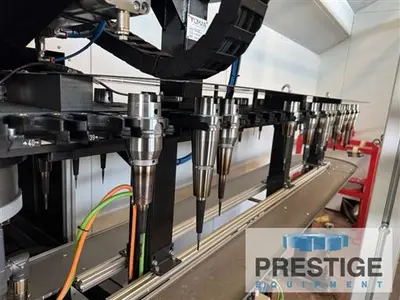

60 Station Automatic Tool Changer
5-Axis Continuous Orthogonal Head
Dual Chip Conveyors

Features:
Heidenhain TNC 640 CNC Control
60 Station Automatic Tool Changer
5-Axis Continuous Orthogonal Head
Dual Chip Conveyors
