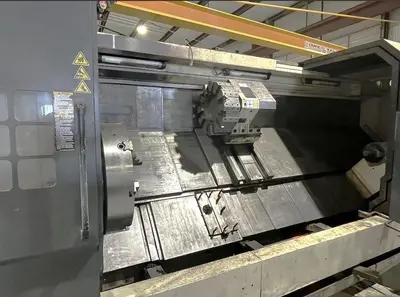

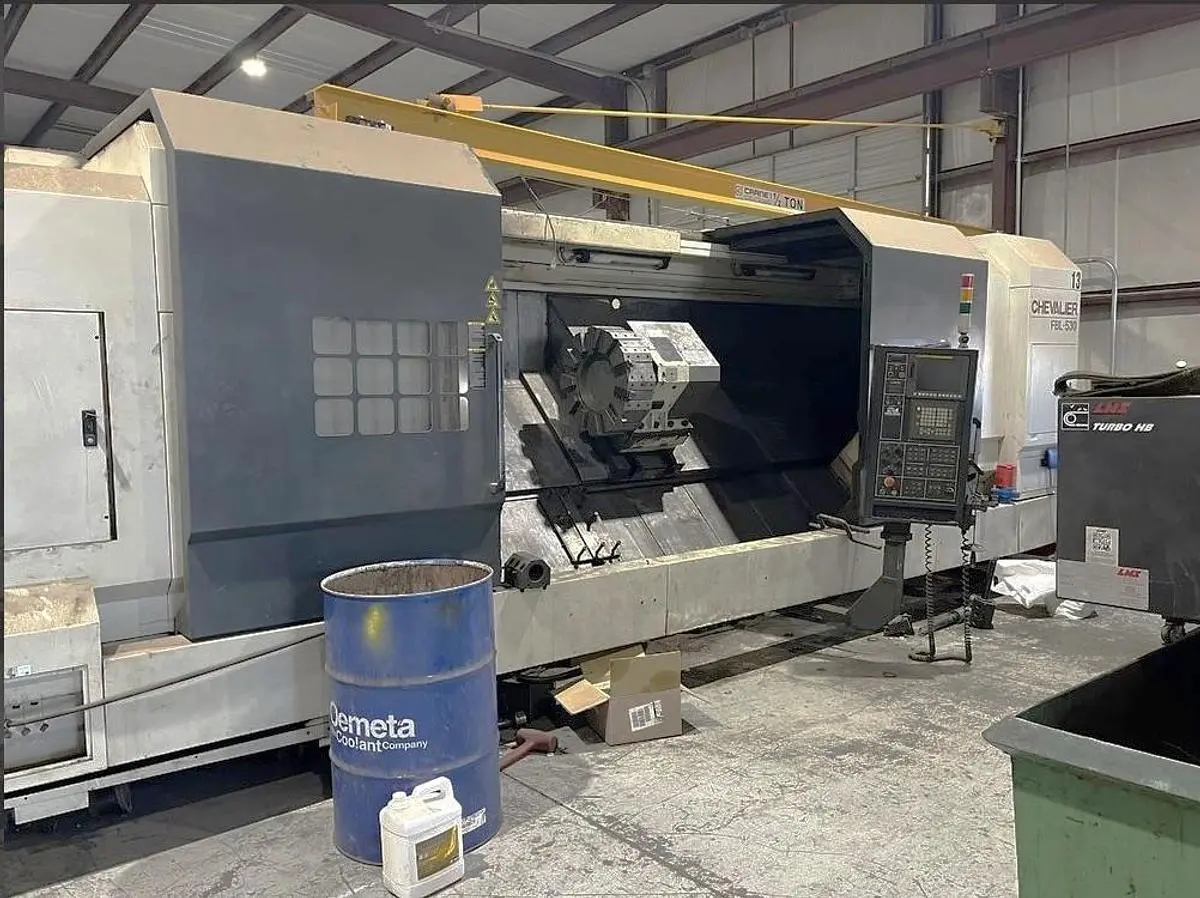

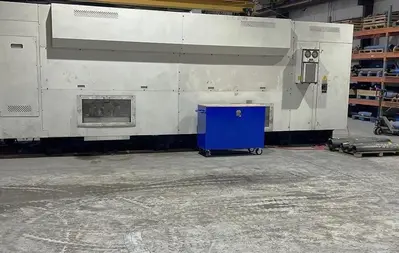

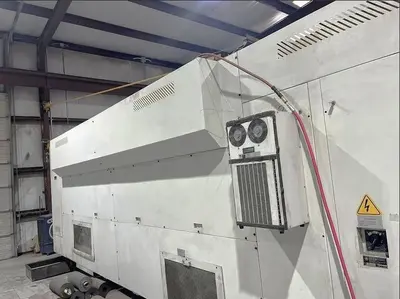

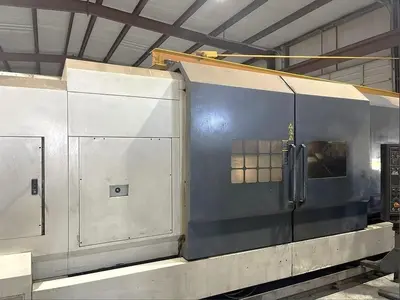

USED 2013 CHEVALIER FBL-530C WITH 12.59" BORE

12" Bar Capacity

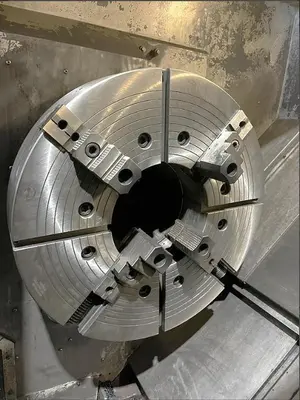

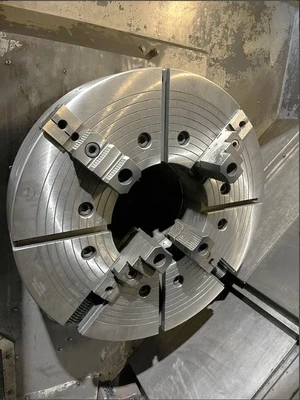

32" Bison 4 Jaw Manual Chuck on Front

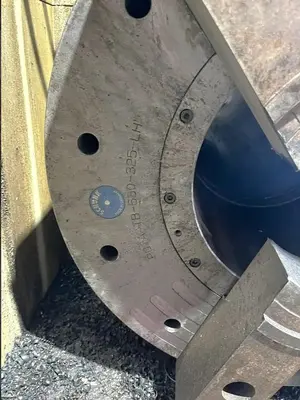

28" Schunk Model Rota TB-630-325-LH 3 Jaw Air Chuck with 12.8" Through Hole
Programmable Tailstock
Chip Conveyor
Mounting Plate for Steady Rest
Rigid Tapping
Multiple Threads
Conversational Manual Guide I Programming
(4) Over Sized Box Ways
45 Degree Slant Bed
3.5" Floppy Disc Interface
RS 232 Port Interface
3 Color Machine Status Condition Lights
All Available Tool Blocks
All Available Manuals

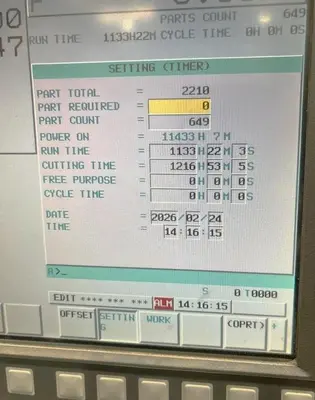

**Power On Hours 11,433**
**Cutting Hours 1,216**

**Similar Design to Doosan Puma 800LB**
**ONLY Used for 14 months one shift**

The 2012 Chevalier FBL-530C CNC Lathe offers robust performance suitable for heavy-duty industrial applications. Key features include a large 12.59" spindle bore and a 32" manual 4-jaw front chuck, complemented by a 28" rear air chuck for versatile operation. The Fanuc Oi-TD control system ensures precision and efficiency, while the lathe's 60 HP 3-speed geared motor delivers a maximum speed of 500 RPM with significant torque—4,135 NM at 104 rpm.

Designed with an impressive 118.11" machining length and capable of supporting a maximum swing over bed of 40.55", this machine handles large workpieces with ease. It also includes a 12-position turret, allowing for a wide range of tooling setups. The X-axis and Z-axis travels are 19.29" and 118.11", respectively, supported by rapid traverse rates of 394 IPM and 472 IPM, enhancing productivity and operation speed.

Additional features include a robust tailstock with a quill diameter of 7.87" and MT6 rotary quill taper. The entire machine stands at dimensions of 338.66" L x 117" W x 99.60" H and weighs approximately 50,600 lbs, ensuring stability during rigorous operations. Ideal for various industrial machining needs, this used lathe combines versatility with power and precision.

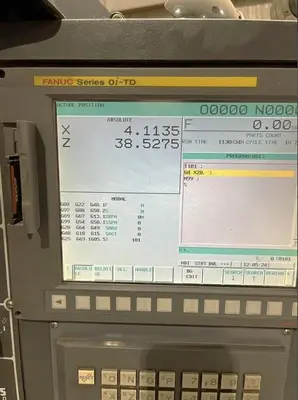

Machine Control: Fanuc Oi-TD Control
Chuck Size: 32" Manual Bison Front / 28" 3-Jaw Schunk Air Chuck Rear
Maximum Swing over Bed: 40.55"
Maximum Swing Over Cross Slide: 31.49"
Maximum Turning Diameter: 37"
Maximum Machining Length: 118.11"
X-Axis Travel: 19.29"
Z-Axis Travel: 118.11"
Spindle Nose / Bore / Bar Capacity: A2-20" / 12.59" / 12.5"
Spindle Speed: 500 RPM
Spindle Motor: 60 HP - 3-Speed Geared
Maximum Torque: 4,135 NM@104 rpm

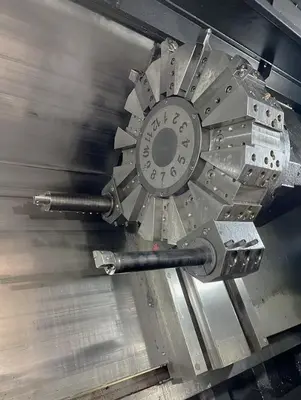

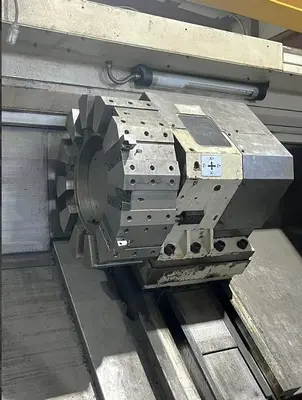

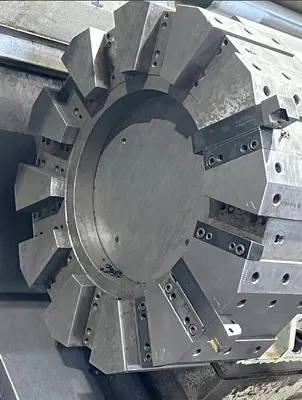

Number of Turret Positions: 12 Position Turret
Rapid Traverse Rates X / Z: 394 IPM / 472 IPM
Tailstock Body Travel: 118.11" w/o use of steady rest
Tailstock Quill Diameter / Quill Travel / Taper: 7.87" / 3.94" / MT6 Rotary Quill
Machine Dimensions LxWxH: 338.66" x 117" x 99.60"
Machine Weight: 50,600 lbs
