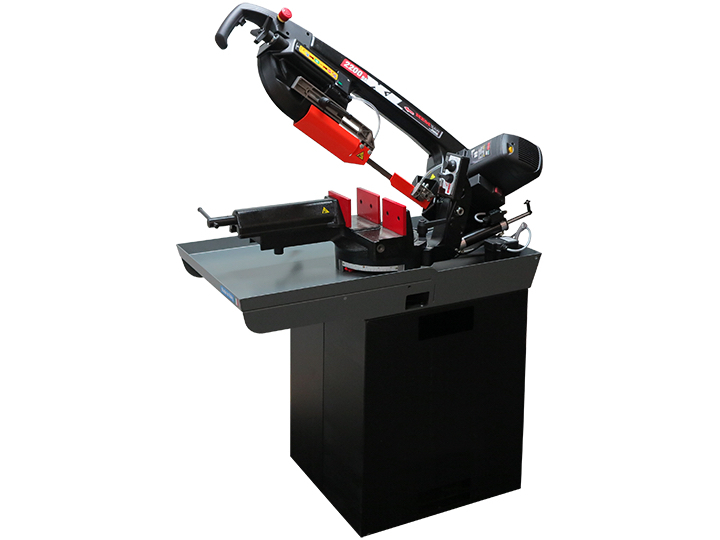

The 2200DA-XL band saw comes mounted on a base and includes a 4-gallon cutting fluid system. It will cut miter angles up to 60ᵒ in one direction, has automatic arm down feed, a variable–speed motor, and ¾” wide blade. A hard-stop is included for cutting multiple same-length parts.
| Rect-Cap (H) | 5.4" | 137.16 mm |
| Rect-Cap (W) | 7.4" | 187.96 mm |
| Rounds-Cap | 6.9" | 175.26 mm |
| Square-Cap | 5.4" | 137.16 mm |
| Power | 2.7 hp | 2 kW |
| Blade Width | 0.75" | 19.05 mm |
| Weight | 310 | 310 |
BRAND: HE&M SAW
MODEL: 2200DA-XL
TYPE: BANDSAW, BENCH TOP
Main Capacity: 5.4" W x 7.4" H
Bar-feed: N/A
Blade: 7' 0" L x .75" H x .035"
Motor: 2.7 HP
Square Capacity 0-5.4" (Square)
Round Capacity 0-6.9" (Diameter)
Miter Cutting: One-Way 60°
Bar-feed N/A
Motor 2.7 HP
Hydraulic Motor N/A
Operation Type Manual
Power Source Electric
Bandsaw Blade Speed N/A
Bundle Cut? No
Hydraulic Control System of Arm Down Feed Force
Adjustable Light to Heavy Cutting Force
One-Way 60° Miter
Vise - Manual Quick-Locking
Manual Arm Miter
Easy to Read Arm Miter Gauge
Adjustable Blade Guide
Blade Tension w/ Light Indicator
Adjustable 19.6" Stop
Coolant System
Price Includes Base
115V Electrical Motor Requirement
2.7 Motor - 19 Amps
Variable Speed Motor
