USED HAYSSEN ULTIMA 8-1

Manufacturer Information
Hayssen (Barry-Wehmiller Packaging Systems)
Hayssen is a globally recognized manufacturer of flexible packaging machinery, specializing in vertical form fill seal (VFFS) systems for food and non-food applications. Known for reliability, sanitary design, and high-speed performance, Hayssen equipment is widely used in snack food, bakery, frozen food, and general product packaging operations.
Ishida
Ishida is an industry-leading manufacturer of multihead combination weighers and inspection systems. Their CCW series scales are known for accuracy, speed, and durability in high-volume production environments, particularly in snack food, confectionery, and fresh/frozen food packaging lines.

Description

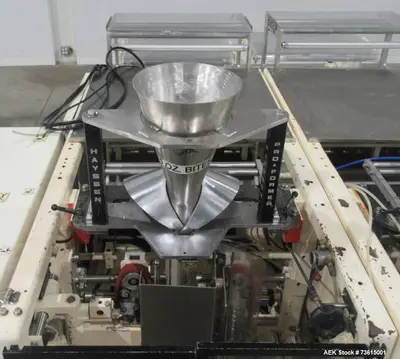

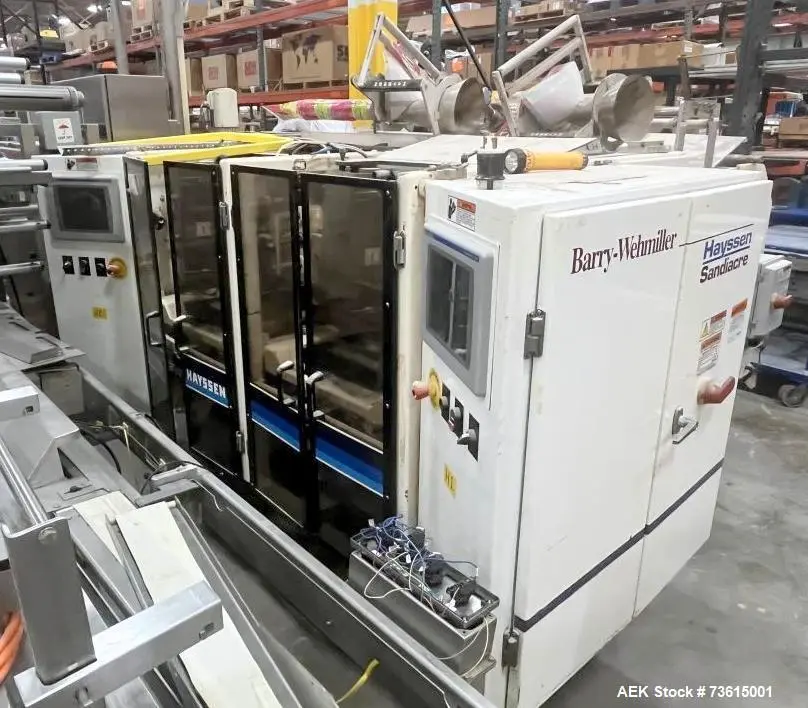

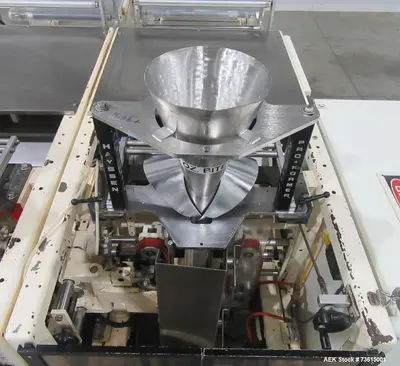

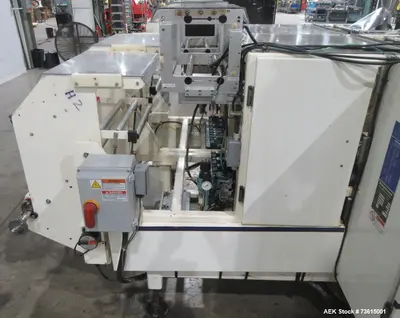

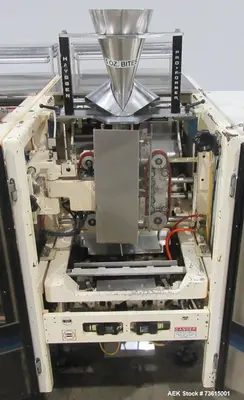

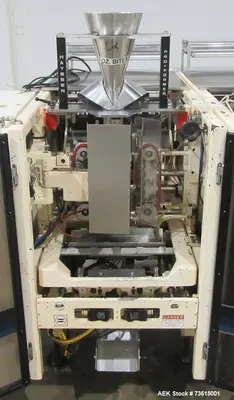

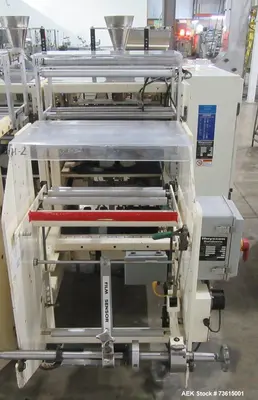

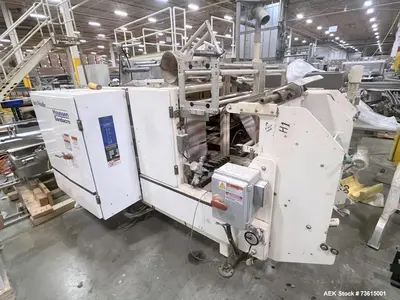

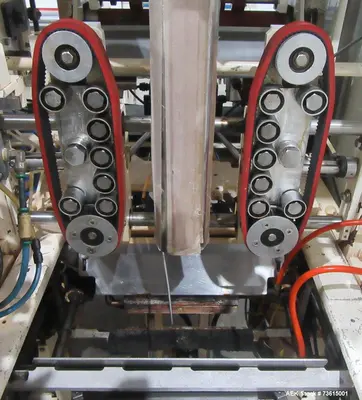

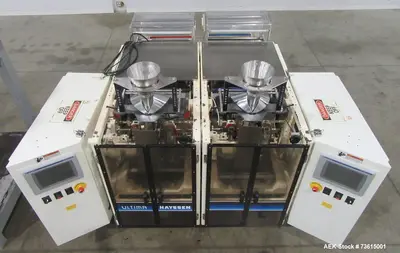

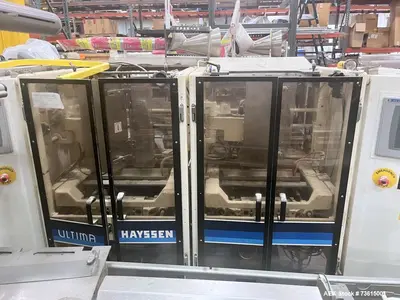

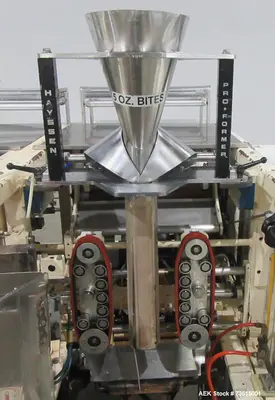

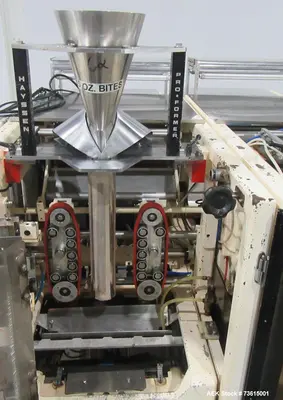

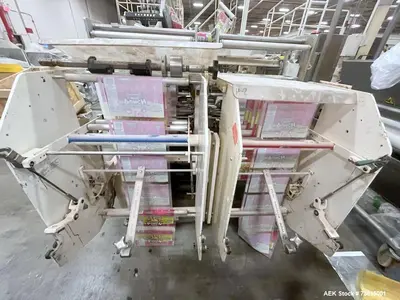

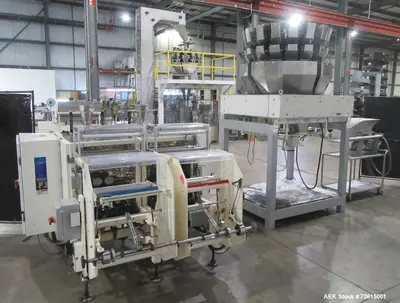

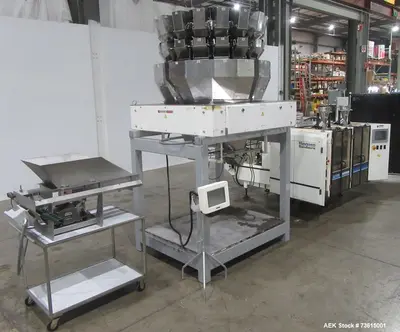

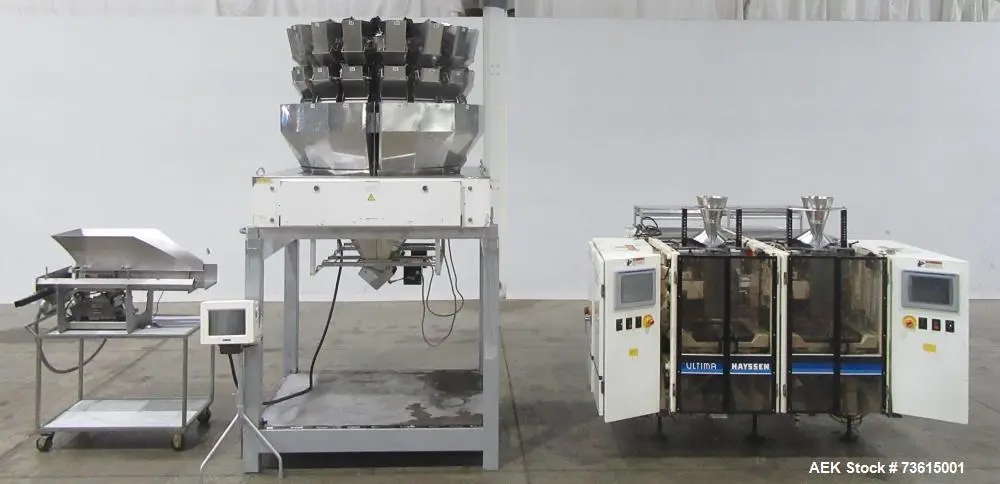

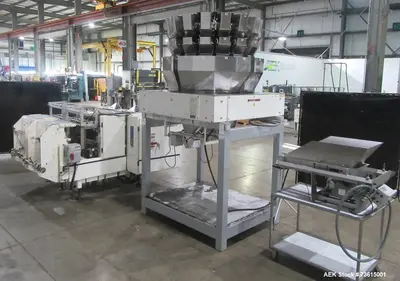

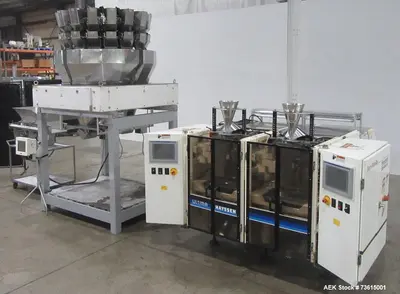

Used Hayssen Ultima 8-16 HPR (UD138) Twin Tube Vertical Form Fill Seal Bagger with Ishida CCW-RZ-216B-D/30-PB 16-head combination scale. This complete high-speed packaging system is capable of running up to 120 packages per minute (30–60 PPM per bagger).
The twin-tube configuration increases throughput while maintaining a compact footprint. The system includes vibratory transition feeders to the Ishida scale with dual discharge, 3.0-liter smooth buckets, and booster buckets for enhanced speed and efficiency.

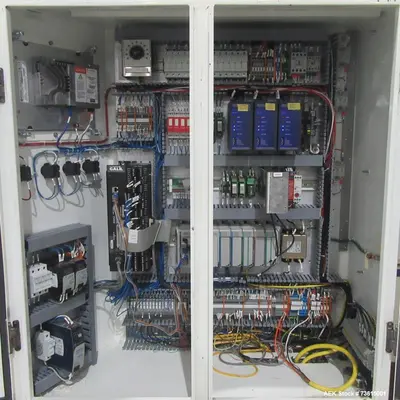

Equipped with Allen Bradley CompactLogix L32E PLC and PanelView Plus 1000 HMI for operator-friendly controls and reliable automation.

Specifications

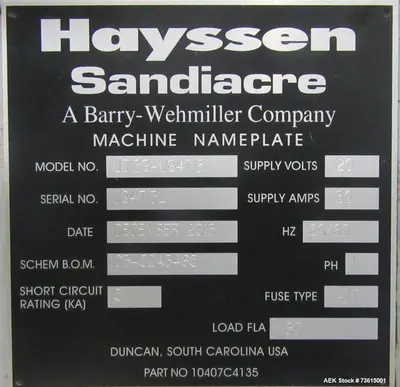

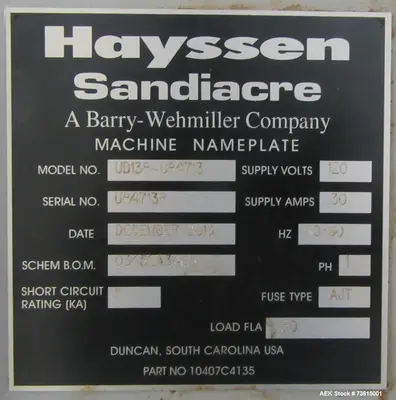

Manufacturer: Hayssen

Model: Ultima 8-16 HPR (UD138)

Machine Type: Twin Tube Vertical Form Fill Seal (VFFS)

Maximum Speed: Up to 120 PPM (30–60 PPM per tube)

Pouch Size Range:

Width: 2-1/8" – 8"

Length: 3" – 16"

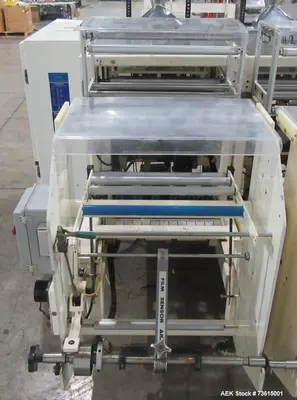

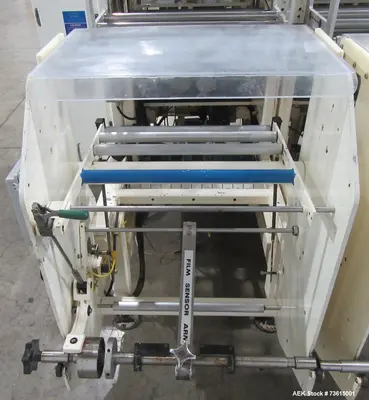

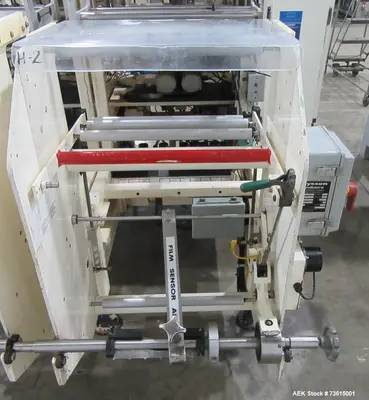

Maximum Film Width: 23"

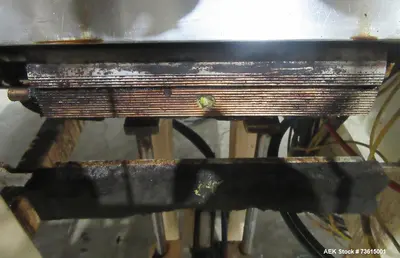

Horizontal Seal Bar: Approx. 1" wide x 9-1/4" long

Vertical Seal Bar: Approx. 1/2" wide x 16-3/4" long

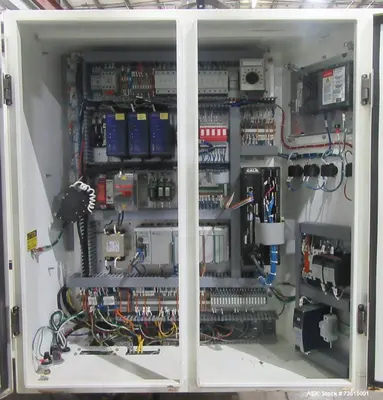

PLC: Allen Bradley CompactLogix L32E

HMI: Allen Bradley PanelView Plus 1000

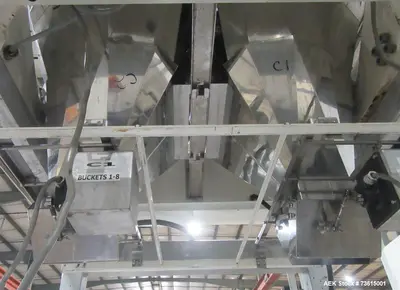

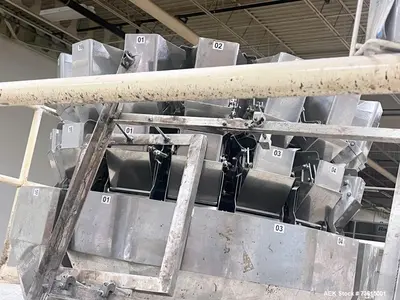

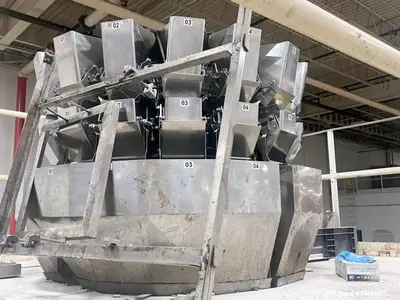

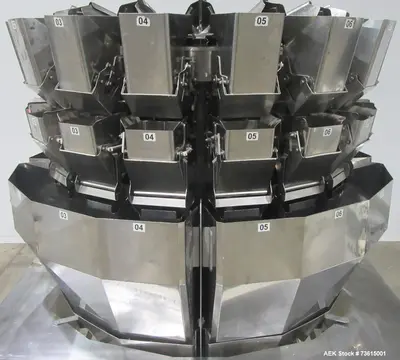

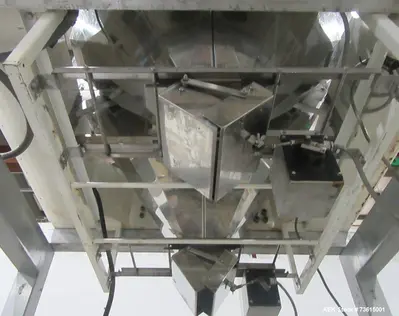

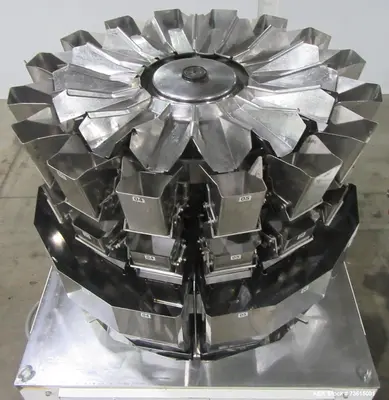

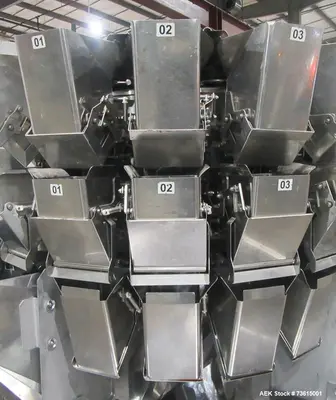

Combination Scale Details:

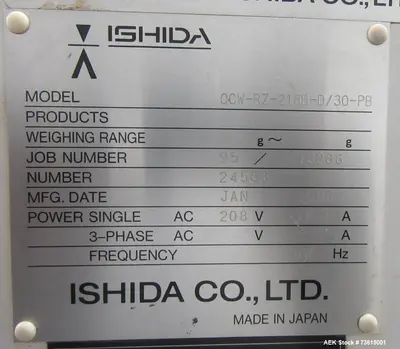

Manufacturer: Ishida

Model: CCW-RZ-216B-D/30-PB

Heads: 16

Bucket Type: Smooth buckets

Bucket Volume: 3.0 liter

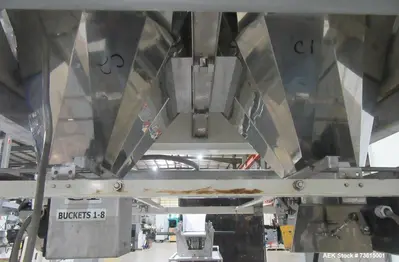

Discharge: Dual discharge

Includes: Booster buckets for increased speed

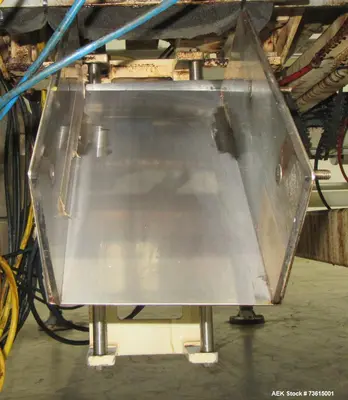

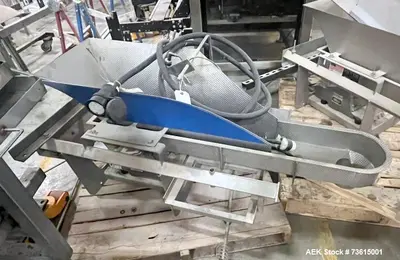

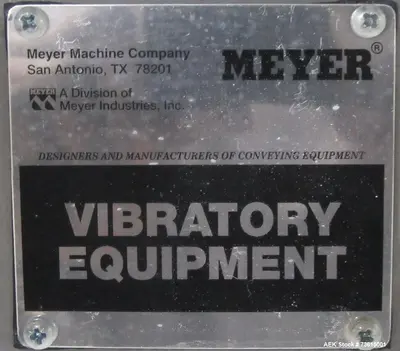

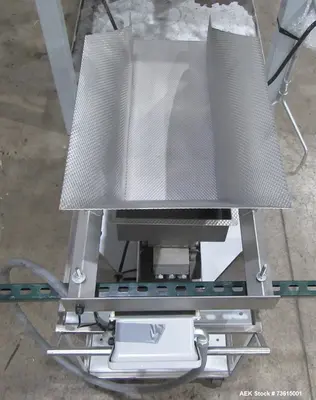

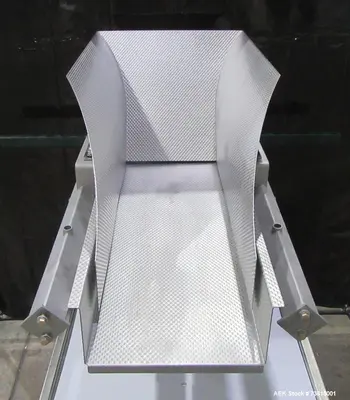

Feed System:  Meyer vibratory feeder

Applications

Snack food packaging

Confectionery packaging

Bakery products

Frozen foods

Fresh produce

Pasta and dry foods

Nuts and trail mix

Pet treats

Granular or free-flowing products

Common Products Used For

Potato chips

Tortilla chips

Pretzels

Popcorn

Candy

Nuts

Trail mix

Frozen vegetables

Shredded cheese

Dry pasta
