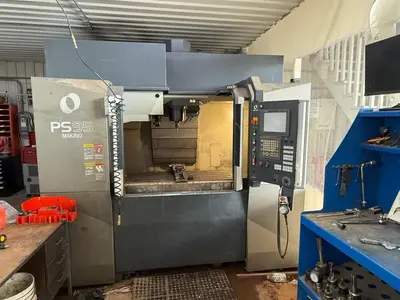

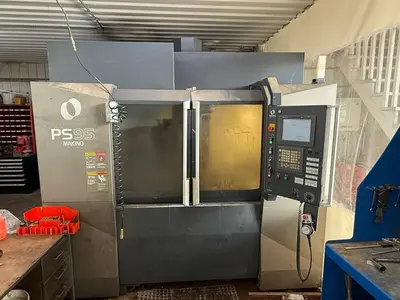

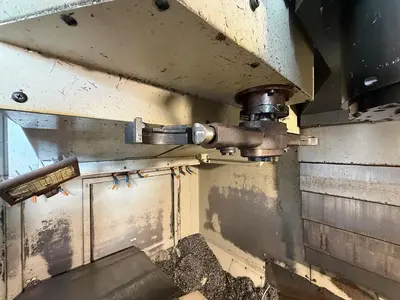

USED 2011 MAKINO PS95

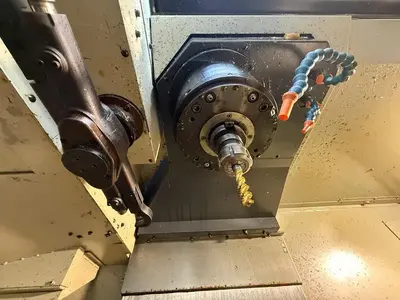

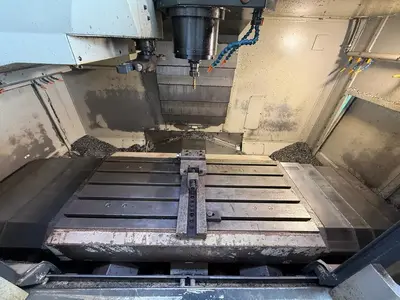

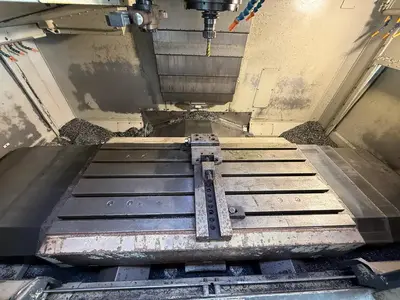

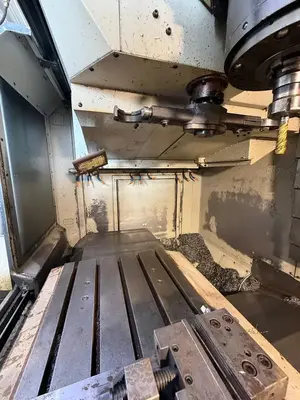

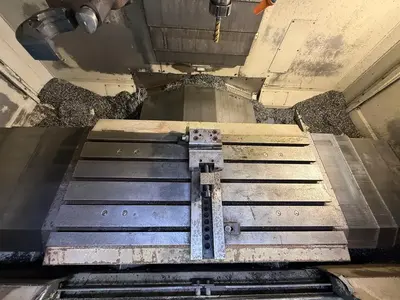

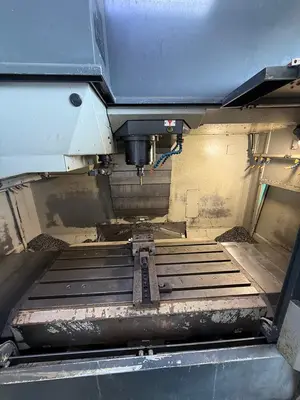

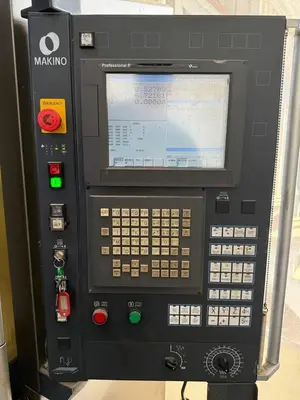

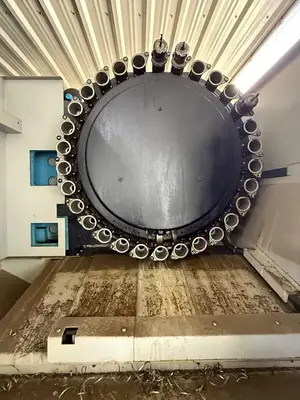

THE MAKINO PS95 IS A HIGH-PERFORMANCE VERTICAL MACHINING CENTER DESIGNED FOR PRECISION AND PRODUCTIVITY IN DEMANDING MANUFACTURING ENVIRONMENTS. IT FEATURES A ROBUST CAST IRON CONSTRUCTION WITH CORE-COOLED BALLSCREWS AND LINEAR GUIDEWAYS TO ENSURE THERMAL STABILITY AND SPEED. THE MACHINE TYPICALLY OFFERS TRAVELS OF 36.2 INCHES IN THE X-AXIS, 20.1 INCHES IN THE Y-AXIS, AND 18.1 INCHES IN THE Z-AXIS. ITS WORK TABLE MEASURES APPROXIMATELY 46 INCHES BY 19 INCHES AND CAN SUPPORT A MAXIMUM LOAD OF UP TO 2,200 LBS. THE SPINDLE IS EQUIPPED WITH A CAT40 TAPER AND IS POWERED BY A HIGH-TORQUE MOTOR, OFTEN RATED AT 20 HP TO 33.5 HP, WITH SPEED CAPABILITIES RANGING FROM 10,000 TO 14,000 RPM. A SIDE-MOUNT AUTOMATIC TOOL CHANGER PROVIDES A 30-STATION CAPACITY WITH A TOOL-TO-TOOL TIME OF APPROXIMATELY 1.2 TO 1.5 SECONDS. RAPID TRAVERSE RATES REACH UP TO 1,800 IPM FOR X AND Y AXES AND 1,181 IPM FOR THE Z-AXIS. CONTROLLED BY THE MAKINO PROFESSIONAL P CNC SYSTEM, BASED ON FANUC TECHNOLOGY, THE PS95 SUPPORTS ADVANCED FEATURES SUCH AS COOLANT-THROUGH-SPINDLE, HIGH-PRECISION POSITIONING ACCURACY OF +/- 0.0002 INCHES, AND REPEATABILITY OF +/- 0.0001 INCHES. THE MACHINE'S PHYSICAL FOOTPRINT IS ROUGHLY 9.5 FEET BY 8.5 FEET, WITH AN APPROXIMATE OPERATING WEIGHT OF 13,500 TO 15,000 LBS.
