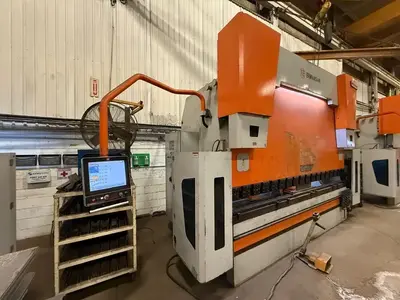

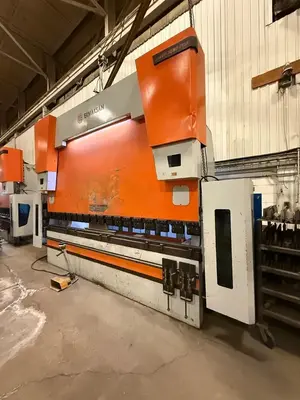

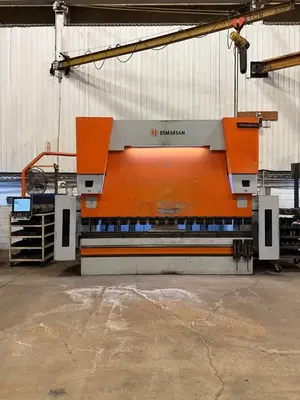

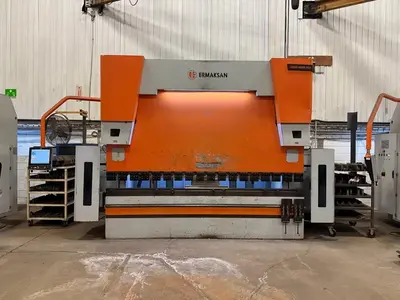

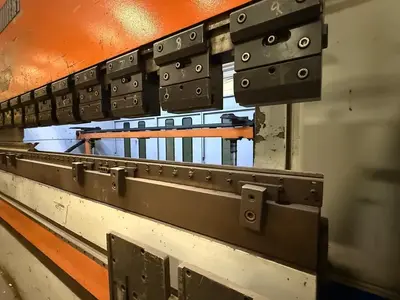

THE 2017 ERMAKSAN SPEED-BEND PRO 12.3X352 IS A SYNCHRONIZED HYDRAULIC CNC PRESS BRAKE DESIGNED FOR HIGH-PRECISION METAL BENDING. THIS MULTI-AXIS MACHINE PROVIDES A CAPACITY OF 352 US TONS AND A WORKING BENDING LENGTH OF 12.3 FEET (APPROXIMATELY 147 INCHES OR 3,750 MM). IT FEATURES A DISTANCE BETWEEN HOUSINGS OF 125 INCHES AND A THROAT DEPTH OF 74 INCHES. THE PRESS BRAKE IS EQUIPPED WITH AN 8-INCH STROKE AND AN 18-INCH OPEN HEIGHT, OPERATING WITH AN APPROACH SPEED OF 5.5 INCHES PER SECOND.

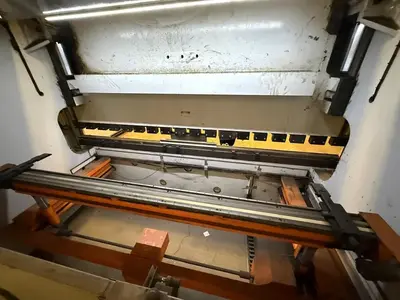

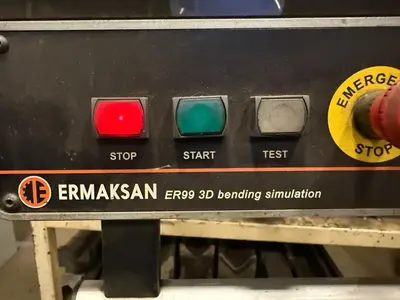

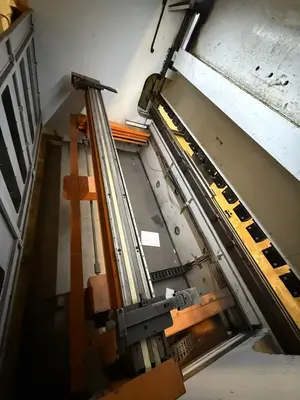

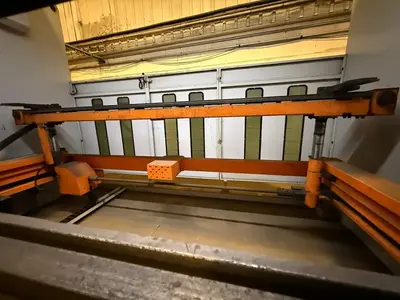

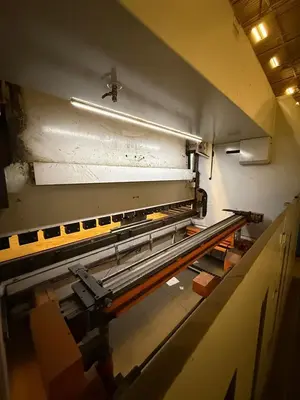

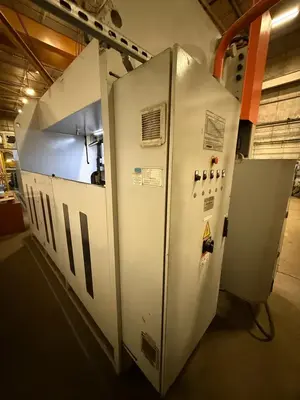

TECHNICAL SPECIFICATIONS INCLUDE A BACKGAUGE TRAVEL OF 30 INCHES ON THE X-AXIS AND A SAFETY DISTANCE OF 59 INCHES. POWER IS SUPPLIED BY A 50 HP MAIN MOTOR, AND THE SYSTEM IS RATED FOR 575 V, 60 HZ, 3-PHASE OPERATION WITH AN IP54 PROTECTION RATING. THE MACHINE'S OVERALL DIMENSIONS ARE 200 X 96 X 130 INCHES, AND IT HAS A TOTAL WEIGHT OF 44,497 LBS. CONTROL IS MANAGED THROUGH A CNC MULTI-AXIS INTERFACE TO ENSURE SYNCHRONIZED HYDRAULIC PERFORMANCE ACROSS ALL BENDING OPERATIONS.
