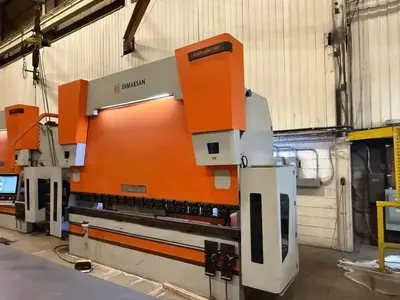

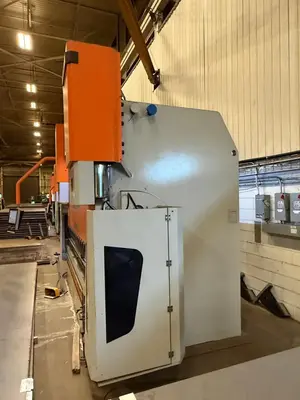

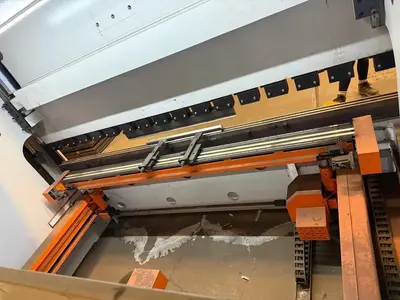

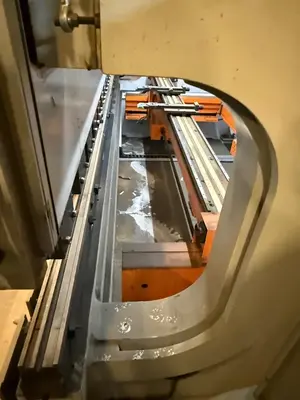

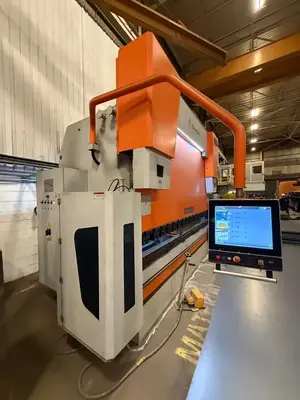

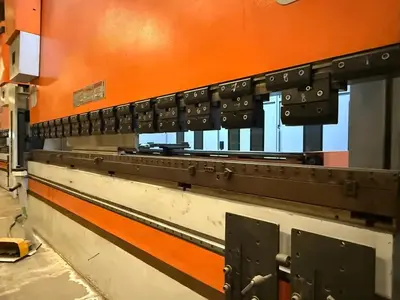

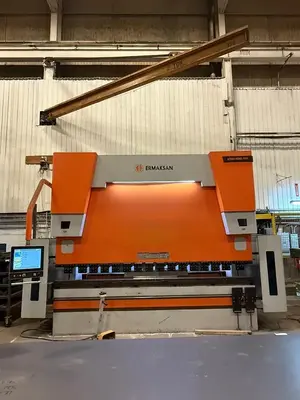

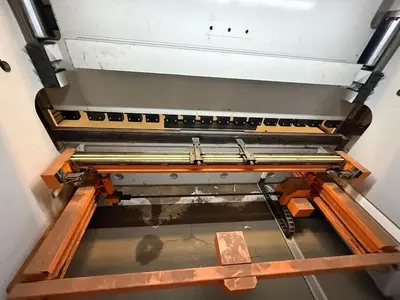

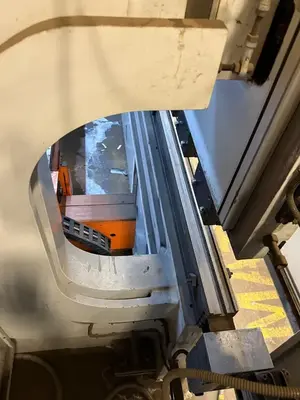

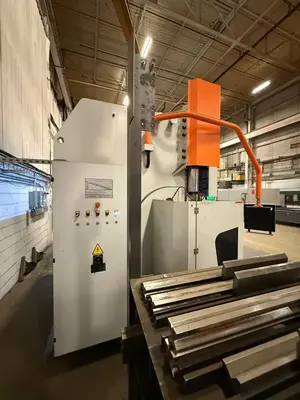

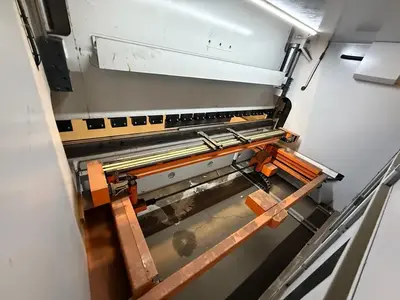

THE 2023 ERMAKSAN SPEED-BEND PRO 12.3X352 IS A SYNCHRONIZED HYDRAULIC CNC PRESS BRAKE WITH A 352 US TON CAPACITY AND A WORKING BENDING LENGTH OF 12.3 FEET (APPROXIMATELY 147 INCHES OR 3,750 MM). THIS MACHINE OPERATES ON A 575 V, 60 HZ, 3-PHASE POWER SUPPLY AND IS POWERED BY A 50 HP MAIN MOTOR. IT FEATURES A CNC MULTI-AXIS CONTROL SYSTEM AND AN IP54-RATED ELECTRICAL ENCLOSURE. KEY TECHNICAL SPECIFICATIONS INCLUDE AN 8-INCH STROKE, AN 18-INCH OPEN HEIGHT, AND A THROAT DEPTH OF 74 INCHES, WITH A DISTANCE OF 125 INCHES BETWEEN THE HOUSINGS. THE BACKGAUGE PROVIDES 30 INCHES OF TRAVEL ALONG THE X-AXIS. FOR OPERATION AND SAFETY, THE PRESS BRAKE HAS AN APPROACH SPEED OF 5.5 INCHES PER SECOND AND A SAFETY DISTANCE OF 59 INCHES. THE UNIT WEIGHS 44,430 LBS AND HAS OVERALL DIMENSIONS OF 200 X 96 X 130 INCHES.
