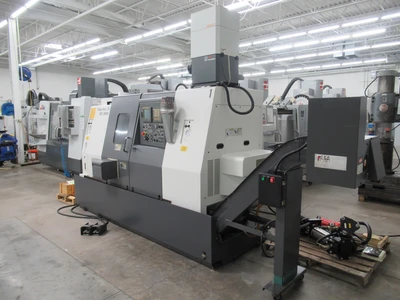

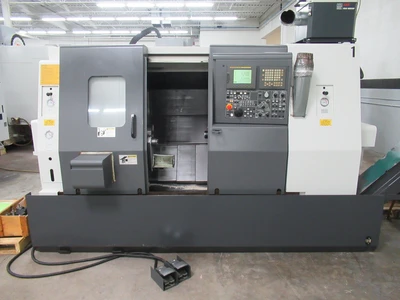

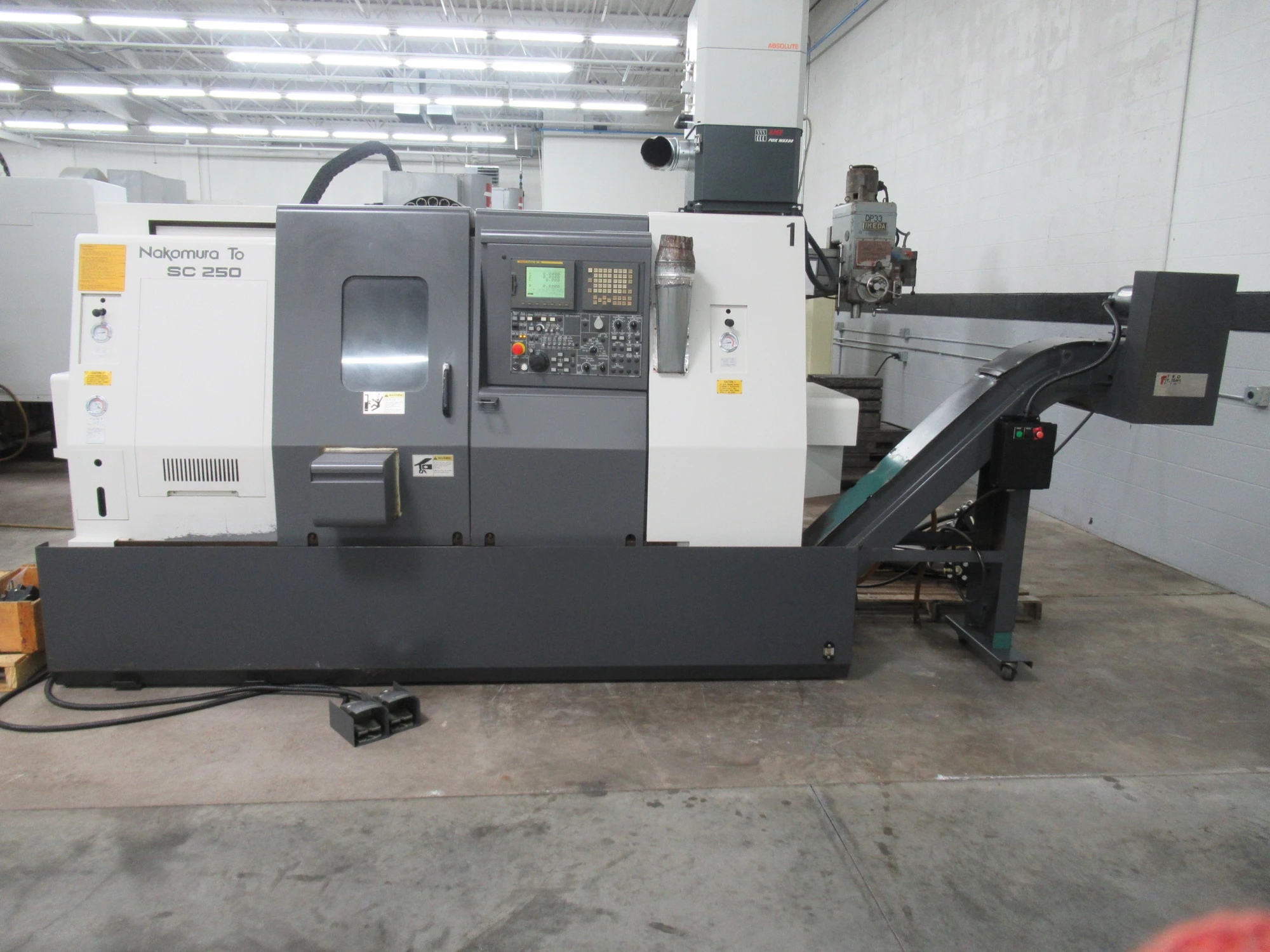

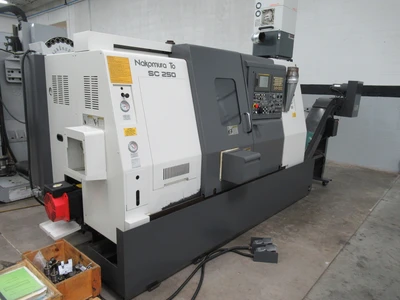

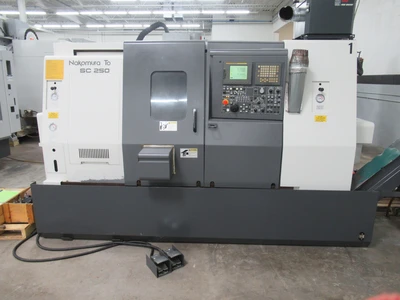

USED 2006 NAKAMURA TOME SC-250 MSC
Overview
Used Nakamura SC-250 MSC CNC Turning Center featuring sub-spindle, live tooling, and high-precision multitasking performance. Ideal for complex, high-accuracy turning applications.
Specs

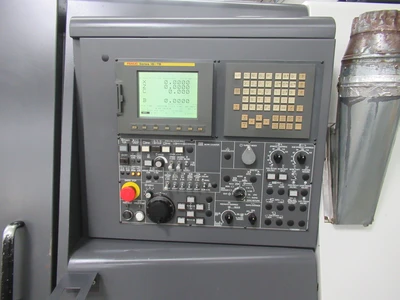

Control:: Fanuc 18iTB CNC Control

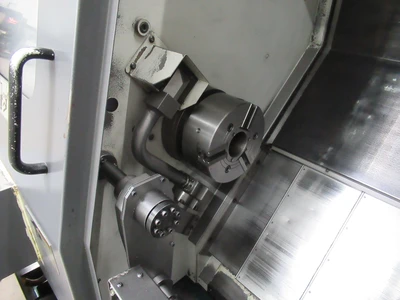

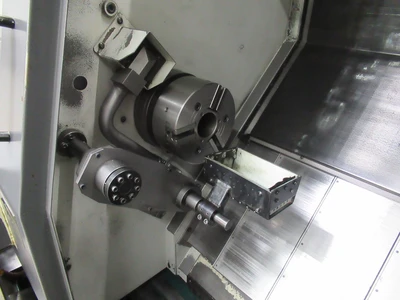

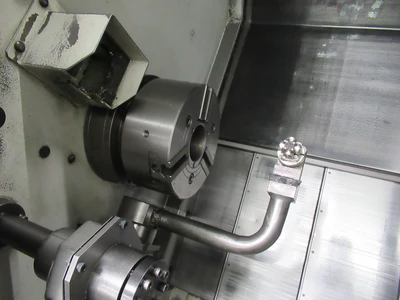

Main Spindle Chuck Size:: 8" 3-Jaw Chuck
Sub-SpindleChuck Size:: 16C Collet Closer
Max Swing Over Bed:: 17.72"
Max Turning Diameter:: 11.81"
Max Turning Length:: 19.69"
Main Bar Capacity:: 65mm (2.56")
Spindle Nose:: A2-6
Max Distance Between Spindles:: 30.71"
Main Spindle Speeds :: 4,500 RPM
Sub-Spindle Speeds :: 5,000 RPM

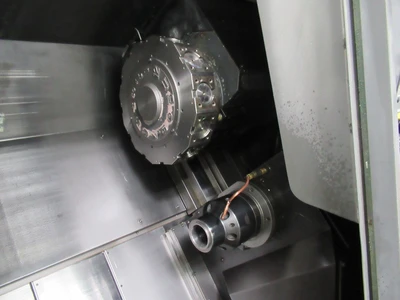

Turret Capacity:: 12 Stations All Live Milling Capable
Turret Travels (X/Z):: 6.99" x 21.65"
Rapids:: X: 629 IPM / Z: 1,181 IPM / B: 1,181 IPM
Sub-Spindle Bar Capacity:: 2.05"
Live Tool Speeds:: Max 3,600 RPM
Main Spindle Orientation:: C-Axis PRogrammable (.001 Degree)
Sub-Spindle Orientation:: C-Axis PRogrammable (.001 Degree)
Sub-Spindle Travel:: 19.69"
Main Spindle Drive:: 15 kW / 11 KW 20/15 HP
Sub-Spindle Drive :: 11 kW / 15 HP
Live Tool Drive Motor:: 5.5/3.7 kW (7.5/ 5HP)
Equipped With

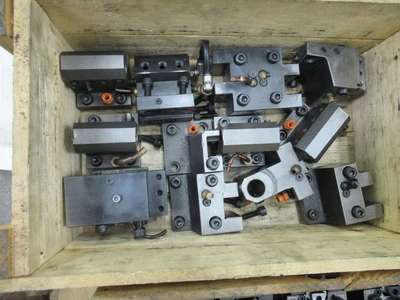

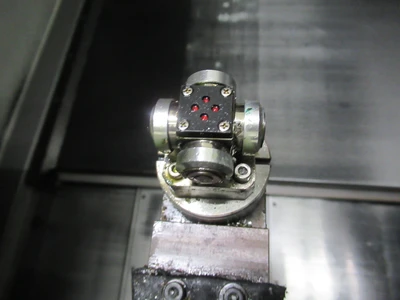

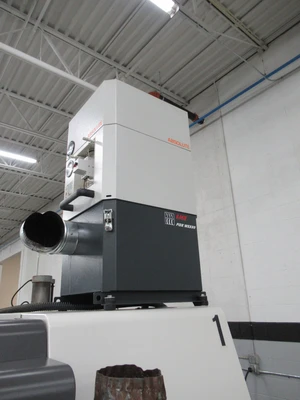

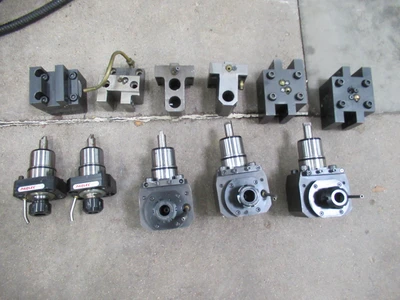

Fanuc 18iTB CNC Control,4,500 RPM Main Spindle, 2.56" Bar Capacity, 5,000 RPM Sub-Spindle, 12 Station Turret with 12 Live Stations, C-Axis Programmable Main and Sub-Spindles, 8" 3-Jaw Chuck on Main, ATS 16C Collet Closer on Sub-Spindle, Turbo Systems Chip Conveyor, Parts Catcher, Tool Presetter, LNS WS330 Mist Collector, Coolant Pump and Tank, HP Coolant Pumps Auxiliary Filter, Static Turning Holders, Static Boring Holders, (3) ER-25 Axial Live Holders, (3) ER-25 Radial Live Holders, Remote Foot Trips, RS232 Port, Ethernet, Compact Flash, Programming Manual, Parts List, Ladder Diagrams
