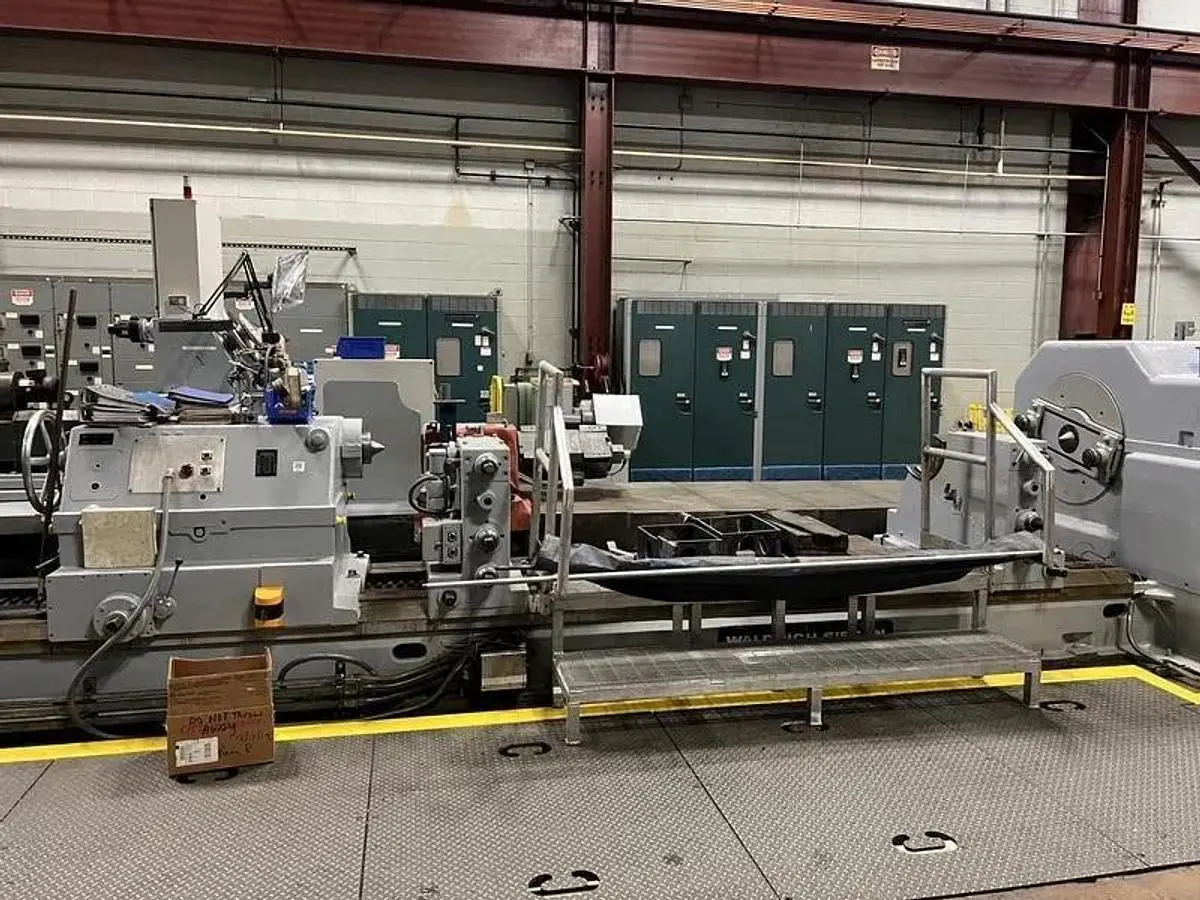

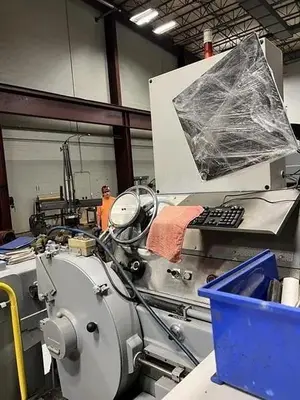

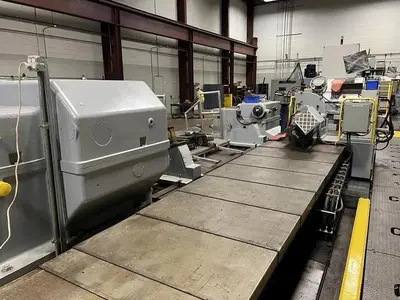

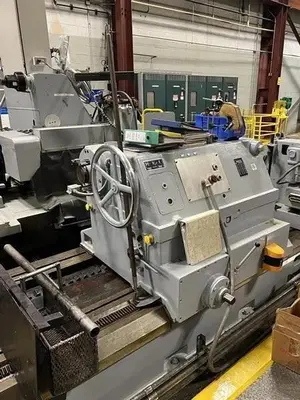

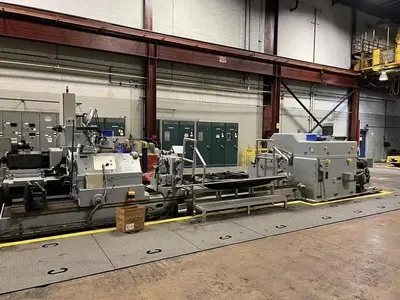

Used WALDRICH SIEGEN V/S II B 35 X 5000 Roll Grinders US | VX Machinery #760244
Used

USED WALDRICH SIEGEN V/S II B 35 X 5000

United States

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

VX Machinery
512Listings|7Followers
View seller profile
Overview
Roll Grinders
WALDRICH SIEGENV/S II B 35 X 5000

Specifications:
Manufacturer: Waldrich Siegen
Maximum Roll Diameter: 50" (1,260 mm)
Minimum Roll Diameter: 5.5" (140 mm)
Distance Between Centers: 16' (5,000 mm)
Maximum Roll Weight: 70,000 Lbs. (35 Tons)
Face Plate Speed: 7 - 70 RPM
Grinding Carriage Feed: 60 - 4,000 mm/min
Cross Slide Traverse Infeed: 560 mm
Rapid Traverse Cross Slide: 400 mm/min
Fine Infeed Hand Wheel: .0125 mm/1 Umdr
Coarse Infeed Hand Wheel: .25 mm/1 Umdr
End Feed by Motor: .01 - .1 mm/Hub
Grinding Wheel:
Maximum Diameter: 31.5" (800 mm)
Width: 3.15" (80 mm)
Hole Diameter: 12" (305 mm)
Drives:
Headstock: 60 HP, 240/960/2400 RPM
Grinding Wheel: 40 HP, 720/1800 RPM
Carriage Drive: 5 HP, 24/1600 RPM
Servo Drives: Headstock & Grinding Wheel
2008 Electrical Upgrade:
Computer Controlled
Allen Bradley PowerFlex Digital Drives
Allen Bradley 1606-XL Power Supply
N-Tron 508XT Ethernet Card
Allen Bradley PanelView Plus 1250 Digital Readouts
Allen Bradley CompactLogix L32E PLC
Rapid Traverse Cross Slide
Grinding Spindle Lubrication
Bedway Lubrication
Quill Rapid Traverse - Tailstock
Crowning and Cambering Capabilities
Stationary Rotating Roll With Traveling Grinding Carriage
(2) Steadies

Specs

Maximum Roll Diameter: 50" (1,260 mm)
Minimum Roll Diameter: 5.5" (140 mm)
Distance Between Centers: 16' (5,000 mm)
Maximum Roll Weight: 70,000 Lbs. (35 Tons)
Face Plate Speed: 7 - 70 RPM
Grinding Carriage Feed: 60 - 4,000 mm/min
Cross Slide Traverse Infeed: 560 mm
Rapid Traverse Cross Slide: 400 mm/min
Fine Infeed Hand Wheel: .0125 mm/1 Umdr
Coarse Infeed Hand Wheel: .25 mm/1 Umdr
End Feed by Motor: .01 - .1 mm/Hub
