USED TIMKEN SCJT 1 7/16

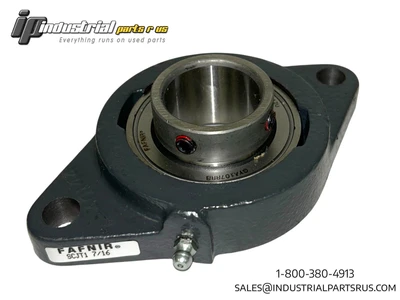

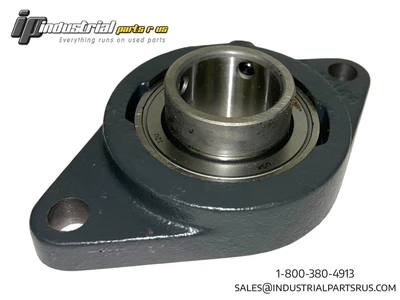

The Timken SCJT 1 7/16 is a 2-bolt flange mount ball bearing unit designed for industrial applications requiring reliable shaft support in space-constrained environments. This bearing unit features a cast iron housing with double sealed ball bearing insert and setscrew locking mechanism for secure shaft attachment.
Specification
Value
Brand
Timken
Model/Part Number
SCJT 1 7/16
Series
SCJT
Bore Diameter
1 7/16 inch
Bearing Type
Ball
Bearing Insert Type
Ball
Housing Material
Cast Iron
Housing Type
Rhombus
Insert Material
52100 Chrome Steel
Number of Mount Holes
2
Bolt Hole Center-to-Center
5 1/8 inch
Bolt Size
1/2 inch
Overall Height
3 5/8 inch
Overall Length
6 1/8 inch
Overall Width
1.5 inch
Closure
Double Sealed
Locking Type
Set Screws
Included Bearing
GYA107RRB
Maximum Speed
3,840 RPM
Maximum Temperature
200°F
Minimum Temperature
-65°F
Rolling Element Rows
1
Lubricant
NLGI #2 Equivalent
We warranty all items for 30 days from date of purchase.

SKU: AI0126
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 4.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Material: 52100 Chrome Steel
Manufacturer: Timken
Enclosure Type: Double Sealed
Part Number: SCJT 1 7/16
Shelf: A-3
Bore Diameter: 1 7/16 in
Model: SCJT 1 7/16
MPN: SCJT 1 7/16
Type: Pillow Block
