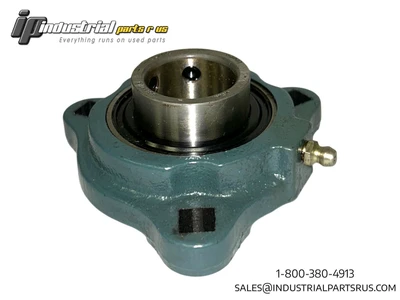

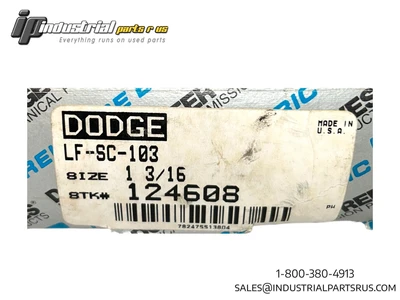

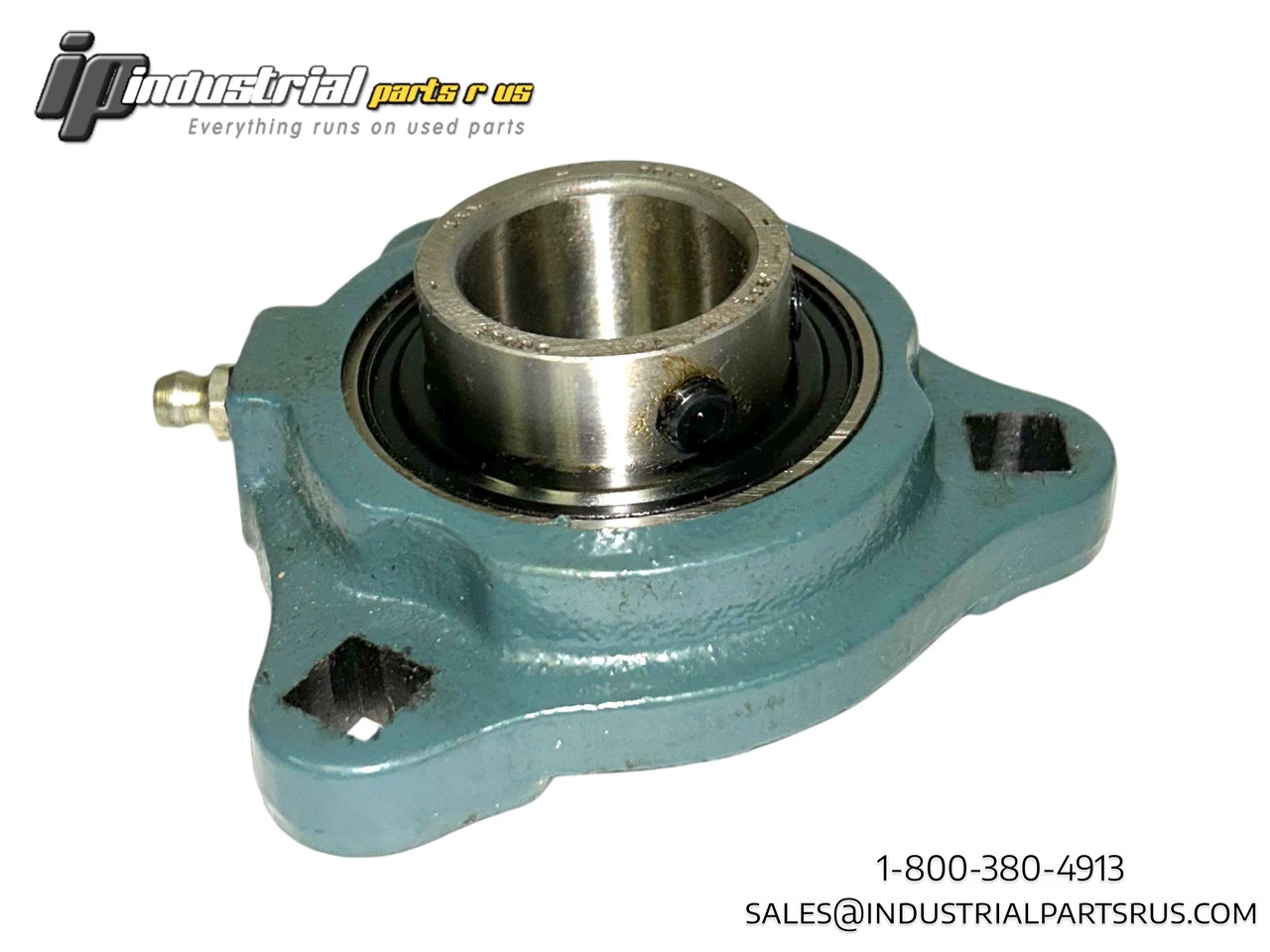

USED DODGE LF-SC-103

The Dodge LF-SC-103 is an intermediate duty pillow block ball bearing unit designed for reliable power transmission applications. This series 206 bearing features a 1-3/16 inch bore diameter with setscrew locking and a three-bolt base flange mounting configuration.
Specification
Value
Brand
Dodge
Model/Part Number
LF-SC-103
Bearing Type
Pillow Block
Series
206
Bore Diameter
1-3/16 inch
Mounting Type
3-Bolt Base Flange
Bearing Insert Type
Ball Bearing
Locking Device
Setscrew
Bolt Center-to-Center
3.56 inch
Bolt Circle Diameter
3.56 inch
Overall Length/Diameter
4.44 inch
Overall Depth
1.45 inch
Dynamic Load Rating
4368 lbs
Static Load Rating
2538 lbs
Maximum Speed
6500 RPM
Operating Temperature
225 to 400°F
Bearing Material
Steel
Seal Type
Nitrile Rubber
Housing Finish
Powder Coated
UPC
782475513604
We warranty all items for 30 days from date of purchase.

SKU: AI0128
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: USA
GTIN: 679523686161
Material: Steel
Manufacturer: Dodge
Part Number: LF-SC-103
Shelf: A-3
Bore Diameter: 1-3/16 in
Model: LF-SC-103
MPN: LF-SC-103
Type: Pillow Block
