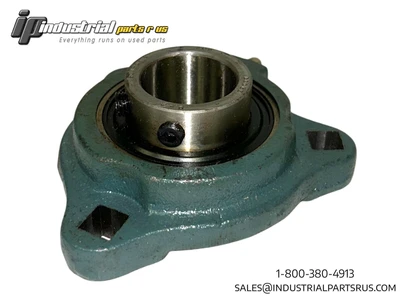

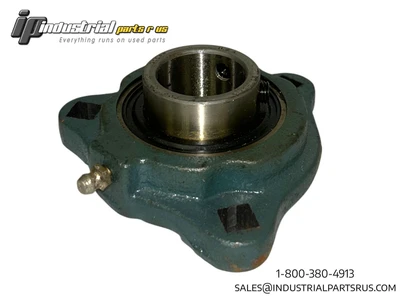

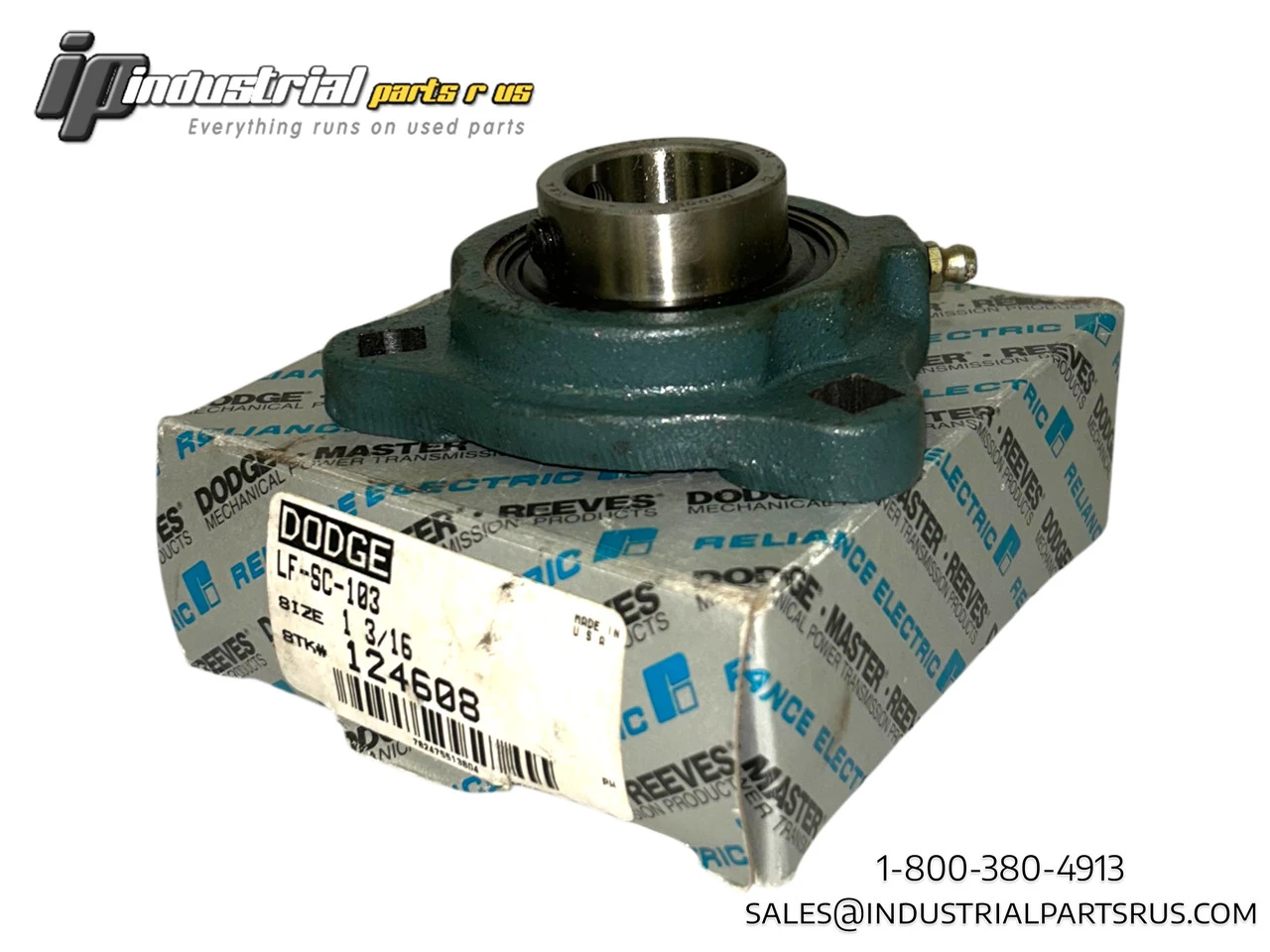

The Dodge LF-SC-103 is an intermediate duty, non-expansion single lip flange mount ball bearing unit designed for reliable industrial applications. This bearing features a 1-3/16 inch bore diameter with a 3-bolt base flange mounting configuration and setscrew locking mechanism for secure shaft attachment.
Specification
Value
Brand
Dodge
Model/Part Number
LF-SC-103
Manufacturer Part Number
124608
Bearing Series
206
Bore Diameter
1-3/16 inch
Bearing Insert Type
Ball Bearing
Mounting Type
3-Bolt Base Flange
Locking Device
Set Screw
Bolt Center-to-Center
3.56 inch
Bolt Circle Diameter
3.56 inch
Overall Length/Diameter
4.44 inch
Overall Depth
1.45 inch
Bearing Material
Chrome Steel
Seal Type
Nitrile Rubber, Single Lip
Dynamic Load Rating
4368 lb
Static Load Rating
2538 lb
Maximum RPM
6500
Operating Temperature
225°F to 400°F
Finish
Powder Coated
Duty Rating
Intermediate Duty
Expansion Type
Non-Expansion
We warranty all items for 30 days from date of purchase.
| Weight | 3.00 LBS | 3.00 LBS |
SKU: AI0127
UPC: 679523686208
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: USA
GTIN: 679523686208
Material: Chrome Steel
Manufacturer: Dodge
Part Number: LF-SC-103
Shelf: A-3
Bore Diameter: 1-3/16 in
Model: LF-SC-103
MPN: LF-SC-103
Type: Pillow Block
