USED FUJI SC-N4 (80)

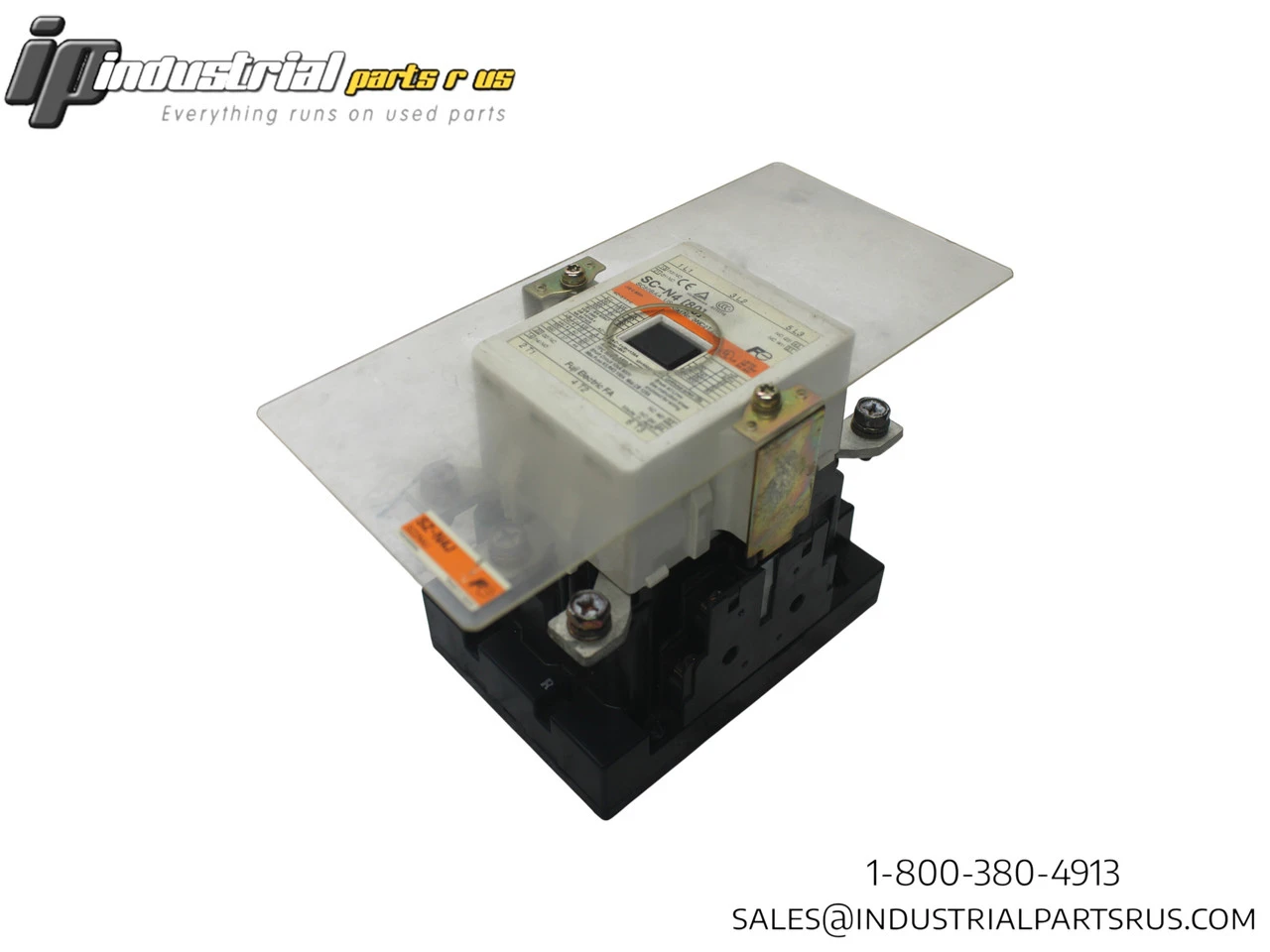

Fuji Electric SC-N4 [80] Magnetic Contactor
The
Fuji Electric SC-N4 [80] is a high-quality magnetic contactor rated for 135A continuous current and conforming to JIS C 8201, IEC/EN 60947, VDE 0660, and GB 14048.4 standards
. This 3-pole industrial contactor is designed for reliable motor control applications.
Key Features:
Motor Capacity:
22kW at 200-240V, 40kW at 380-440V, 37kW at 500-550V, and 37kW at 600-660V
Operational Current:
80A at 200-240V and 380-440V (AC-3), 60A at 500-550V, 44A at 600-660V
Thermal Current:
135A AC-1 rating for non-inductive loads
Auxiliary Contacts:
2A2B configuration (2 normally open + 2 normally closed)
Coil Options:
Multiple voltage configurations including
100V 50Hz/100-110V 60Hz
and
380-400V 50Hz/400-440V 60Hz
Safety Ratings:
Uimp=8kV impulse voltage withstand, Ui=1000V insulation voltage
Technical Specifications:
Frame Size:
N4 (80A frame)
Contact Configuration:
3-pole main contacts with auxiliary contacts
Standards Compliance:
IEC 60947-4-1, EN 60947-4-1
Weight:
Approximately 1.55 kg
Country of Origin:
Made in Japan
This contactor is suitable for motor starting, stopping, and reversing applications in industrial machinery, HVAC systems, and automation equipment. The robust construction ensures reliable operation in demanding industrial environments.

SKU: AI0139
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 5.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Fuji
Part Number: SC-N4 (80)
Shelf: C-6
Model: SC-N4 (80)
MPN: SC-N4 (80)
Type: Unknown
Current Rating: 80A (380-440V)
Country/Region of Manufacture: Japan
Kw: 22
Poles: 3
Voltage: 200-220VAC
