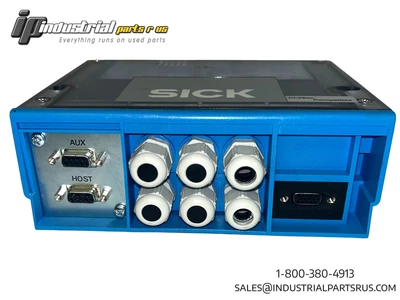

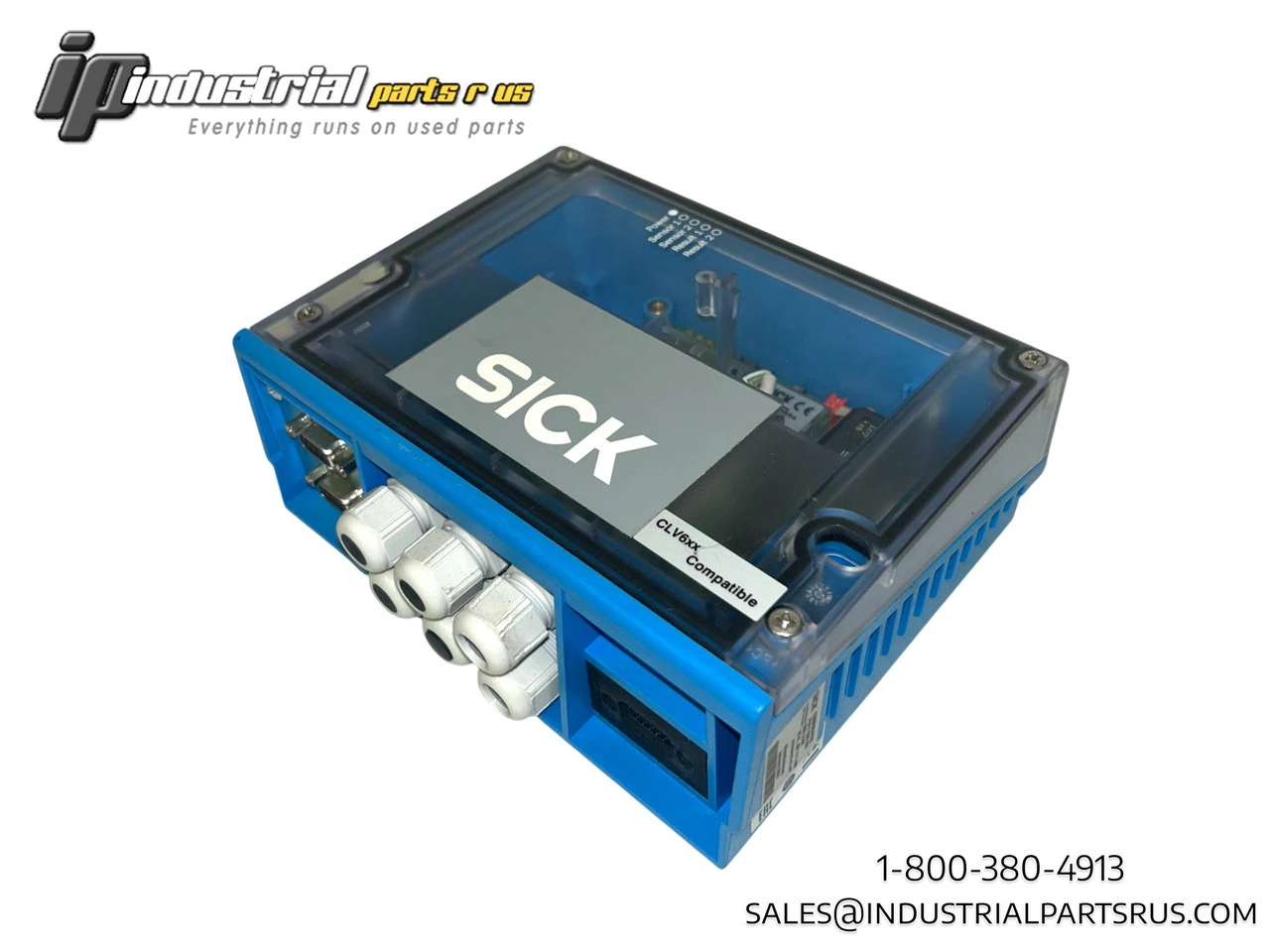

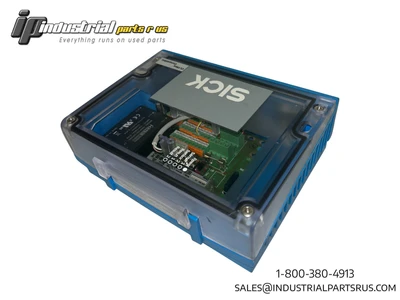

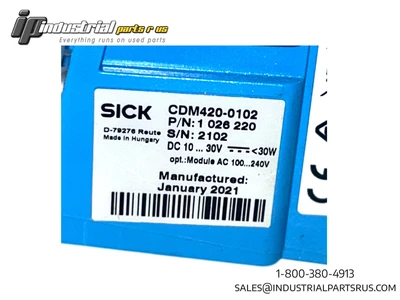

The SICK CDM420-0102 is a modular connection module kit designed for industrial sensor integration and connectivity applications.
This kit includes a modular connection module for one sensor, Host and AUX interface available on front plate, CMP400 power supply, and US power cord
.
It supports Lector® series, CLV61x - CLV65x, and RFH6xx products with cloning module support (CMC) and display module (CMD) compatibility
.
Specification
Value
Brand
SICK
Model Number
CDM420-0102
Part Number
1026220
Product Type
Connection Device Modular
Housing Material
Polycarbonate
Housing Color
Blue (RAL 5012)
IP Rating
IP65
Weight
800g
Dimensions (L x W x H)
192mm x 167mm x 70mm
Connection
15-pin D-Sub HD female connector
Operating Temperature
0°C to +40°C
Storage Temperature
-20°C to +70°C
Interfaces
Serial (RS-232, RS-422, RS-485), CAN
We warranty all items for 30 days from date of purchase.
| Weight | 4.00 LBS | 4.00 LBS |
SKU: AI0023
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 4.00 LBS
Width: 10.00
(in)
Height: 8.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Sick
Part Number: CDM420-0102
Shelf: D-3
Model: CDM420-0102
MPN: CDM420-0102
Type: Industrial Proximity Sensor
