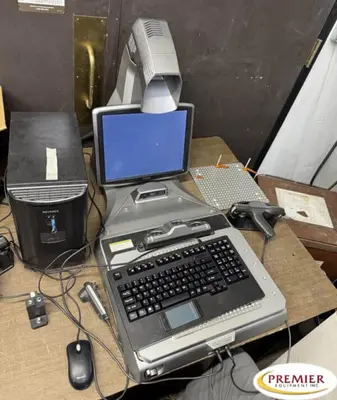

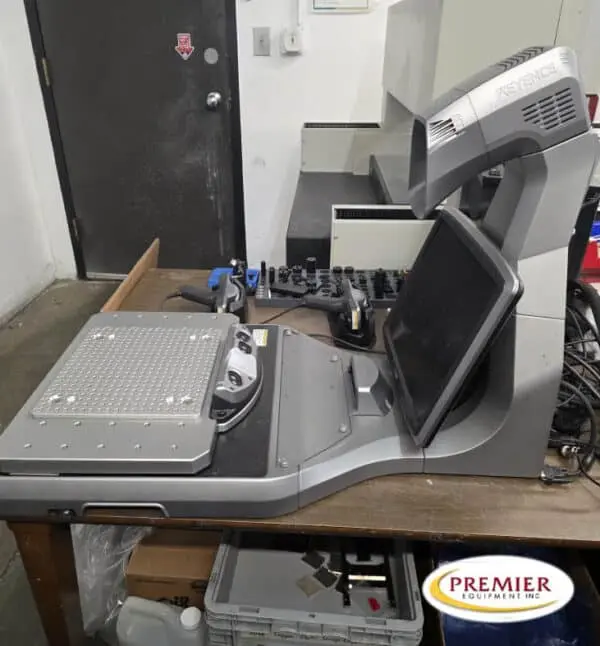

Keyence XM-C1000 CMM – 2020

Keyence XM1000 Portable  CMM – 2020

Measuring range:  300 mm × 250 mm × 150 mm 11.81″ × 9.84″ × 5.91″
Min. display unit:  Distance 1 µm
Angle 0.0001 degrees
Measurement accuracy: Repeatability  Stage locked: ±3 µm
Indication error: Stage locked: ±8 µm*1

Stage: Withstand load – 25 kg

Probe: No. of probes: 1

Built-in display: 15″ LCD monitor (1024 × 768)

Environmental resistance: Ambient temperature: +10 to +35 °C 50 to 95 °F
Relative humidity: 20 to 80 % RH (No condensation)

Head: Approx. 28.2 kg (including camera and cable)
Console: Approx. 150 g (including cable)

Two hand probes
probe case
two work bed
original manual in box
