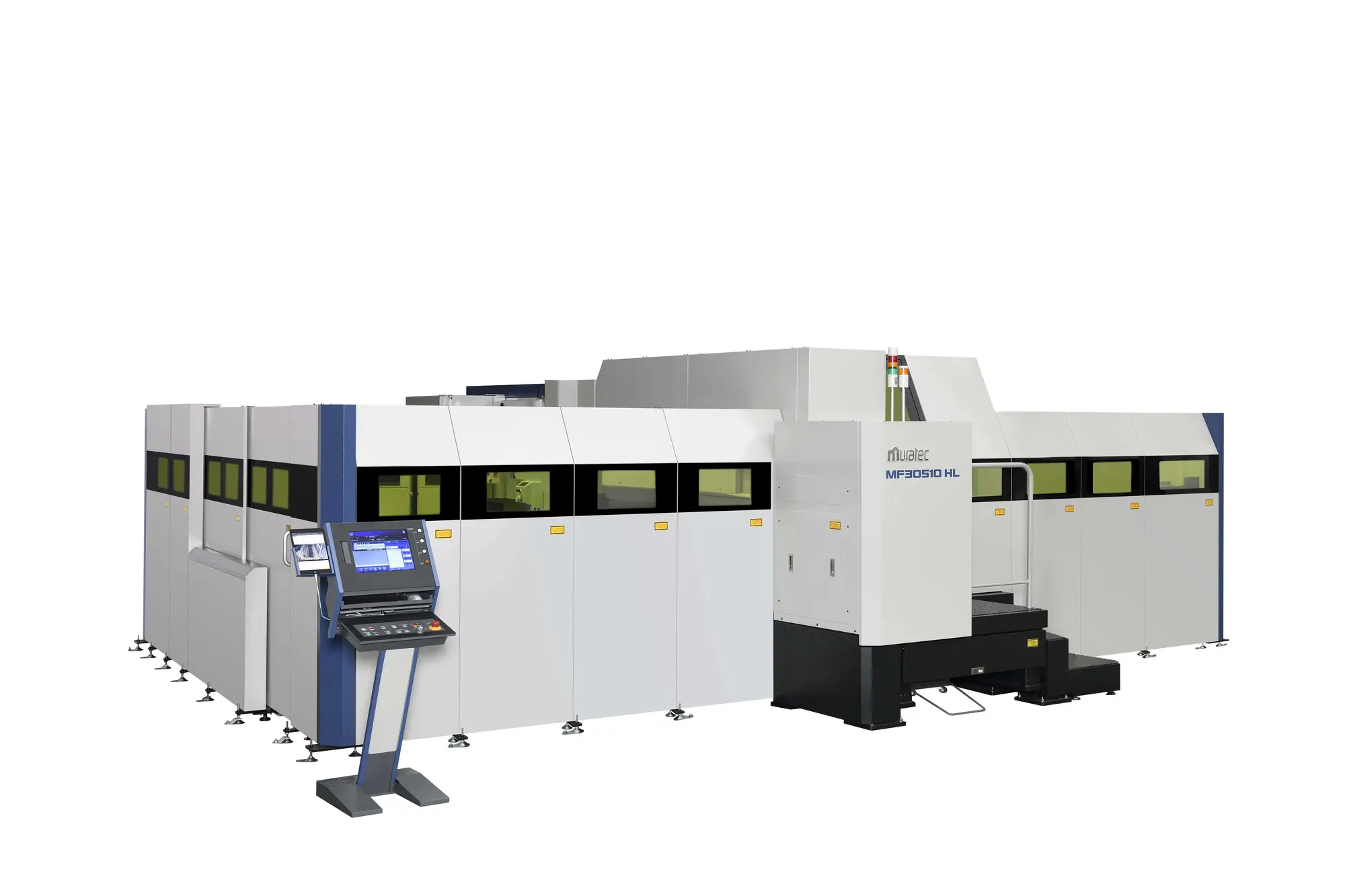

Punch/Laser Combo - MF30510

The MF30510HL-Spring model configuration enables spring-style turret punch presses that utilize a spring-loaded tool holder, allowing for quick and easy tool changes, minimizing downtime, and enhancing production efficiency.
Product Details
The MF30510HL is a combination machine based on a turret punch press with fiber laser cutting added. This multitasker handles laser, drilling, forming, tapping, and other sheet metal processing. With a maximum work size of 5’ x 10’ (1219 × 2438 mm), it was developed in response to customer requests for a machine to process larger workpieces.
The punch press unit has a press capacity of 30 tons. MF30510HL can handle various forming processes such as louvers, and its tapping process is servo-controlled for high-quality machining. Its maximum processing thickness is 6.35 mm, and its maximum loadable workpiece weight is 150 kg.
The MF30510HL-Spring model configuration enables spring-style turret punch presses that utilize a spring-loaded tool holder, allowing for quick and easy tool changes, minimizing downtime, and enhancing production efficiency.
Industries:

Automotive & Transportation, Aerospace & Government, Consumer Product Goods, Food & Beverage, Healthcare & Medical, Machine & Jobs Shops, Manufacturing & Industrial, Semiconductor & Technology, Utilities
Configurations:

Wiedemann-114, S-Spring
Metric Measurement:
Max. Sheet Thickness (Mild Steel): 6.35 mm

Max. Sheet Size (Y x X) Without Repositioning: 1,525 mm x 3,050 mm

Simultaneous Axis Speed: 125 m / min

Hit Rate (1.0 t 25 mm Pitch): 510 hpm

Processing Precision: .004”

No. of Turret Stations (Wiedemann Style): 44 (4 A / I) / 54 (2 A / I)

No. of Turret Stations (Spring Style): 46 (4 A / I)

Laser Rated Output: 4.0 kW
Standard Measurement:
Max. Sheet Thickness (Mild Steel): 0.25”

Max. Sheet Size (Y x X) Without Repositioning: 60.04” x 120.08”

Simultaneous Axis Speed: 60.04” x 120.08”

Hit Rate (1.0 t 25 mm Pitch): 510 hpm

Processing Precision: ±0.1 mm

No. of Turret Stations (Wiedemann Style): 44 (4 A / I) / 54 (2 A / I)

No. of Turret Stations (Spring Style): 46 (4 A / I)

Laser Rated Output: 4.0 kW
