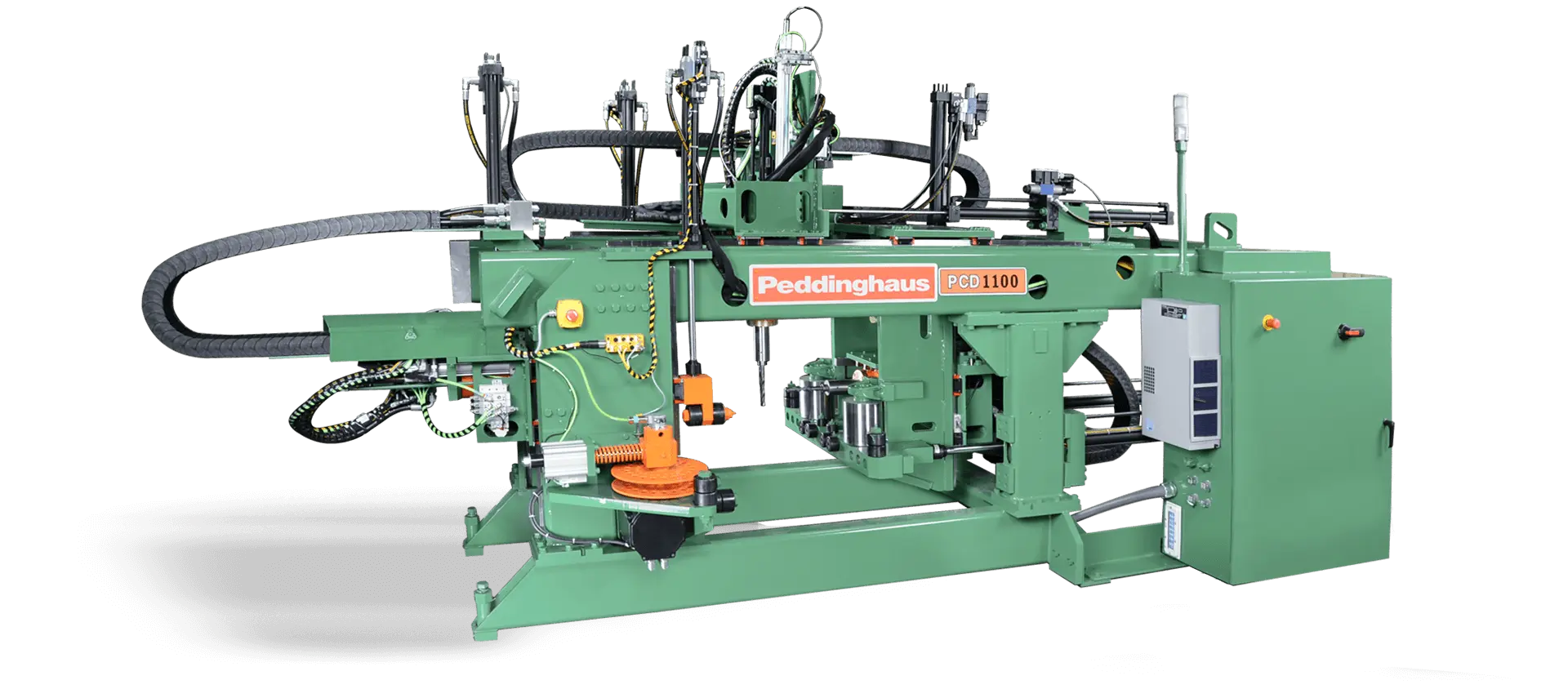

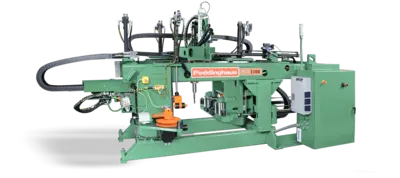

Peddinghaus has shaped today’s CNC beam drilling machine standard with time-tested technology. The Advantage processes an average of 75 tons of steel per work week with the most efficient drilling, scribing and stamping operations. The Advantage drill line utilizes completely electronic spindle motion. This combined with Peddinghaus’ renowned build quality and mechanical design provide the ultimate combination of agility and strength.
Product Details
Structural Steel Drill Line, High Speed Drilling, SignoScript Scribing, SignoMat Part Stamping, Three Drill Assemblies, 13.5 HP Spindle Motors, Minimum Quantity Lubrication, Superior Clamping System, Peddinghaus Control, Raptor Software
Capacity: 44″ Maximum Profile Width
Process: 75 Tons per week

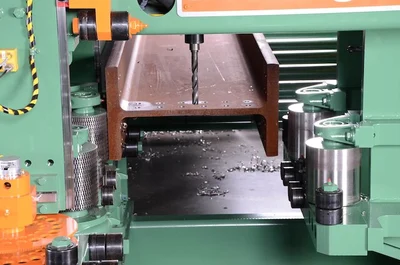

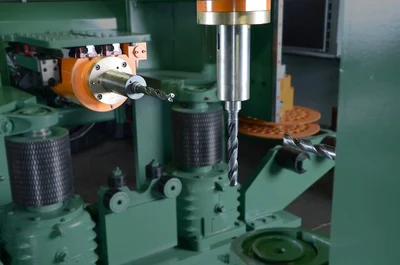

Powered by 13.5 HP (10 kW) spindle motors, this CNC beam drilling machine is outfitted with 3 drill spindles. This powerful drilling technology allows for maximized operating time and drill hole quality.

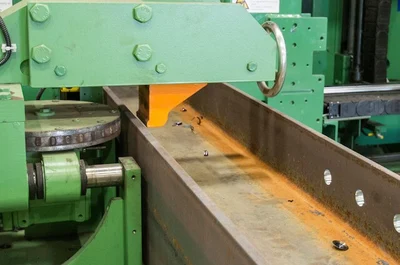

The SignoScript layout marking attachment eliminates human error in manual layout methods. Complete information is maintained throughout blasting, galvanizing and painting processes.

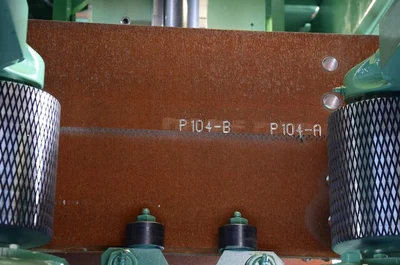

An optional part stamping system maximizes part numbering efficiency. SignoMat technology stamps up to 36 characters or numbers at a rate of one character per second.

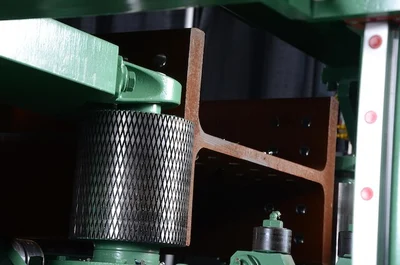

Peddinghaus’ Roller Feed Measurement system exceeds the industry standard for roller measurement technology. Maintaining accurate measurements without any hesitation in production is crucial. Accuracy is not compromised even despite deviations in material.

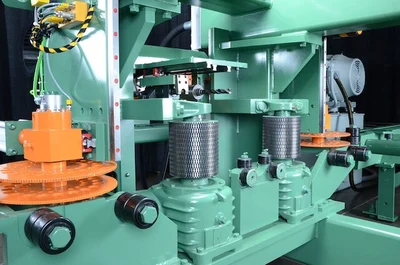

The Advantage employs a series of support clamps in order to achieve optimum rigidity of the workpiece through the machine. Tool life is best sustained with the least amount of vibration possible.
Peddinghaus engineers pioneered a system that instantaneously senses material break-through notifying the machine of the moment a hole is completed and immediately advancing to the next hole in a pattern. Break-through detection technology is designed to increase the amount of time that your drill is actually drilling material.

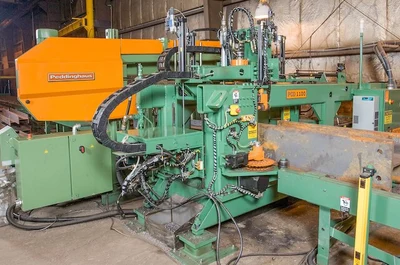

The Advantage drill line with its powerful material handling support, meticulous measurement capabilities and high speed designs are ideal for tandem installations with any of Peddinghaus’ automatic sawing systems.
Developed by Peddinghaus, Raptor 3D CAD/CAM Software takes CNC innovation further by enabling users to program faster and more accurately. Inspect, modify and export part information directly within the 3D platform. This coupled with Peddinghaus CNC technology means maximum capacity for fabricators.
