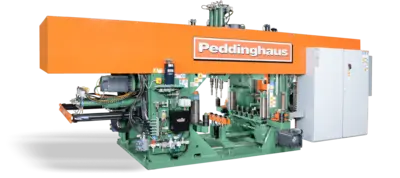

Product Details
Structural Steel Drill Line, High Speed Carbide Drilling, 4-Axis Carbide Scribing, Nine Drill Assemblies, Positioning Feedback, Minimum Quantity Lubrication, Superior Clamping System, Peddinghaus Control, AccuMeasure System, Raptor Software, Tapping, Countersinking
Capacity: 50″ Maximum Profile Width
Process: 200+ Tons per week

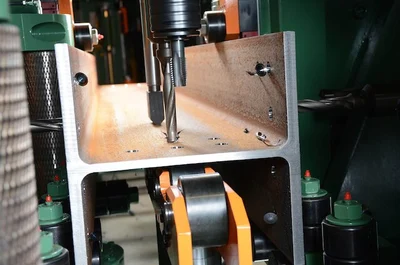

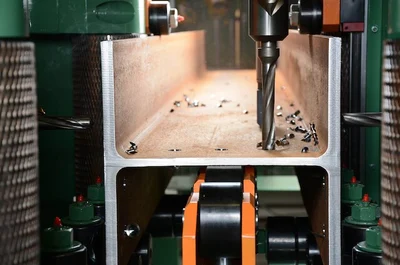

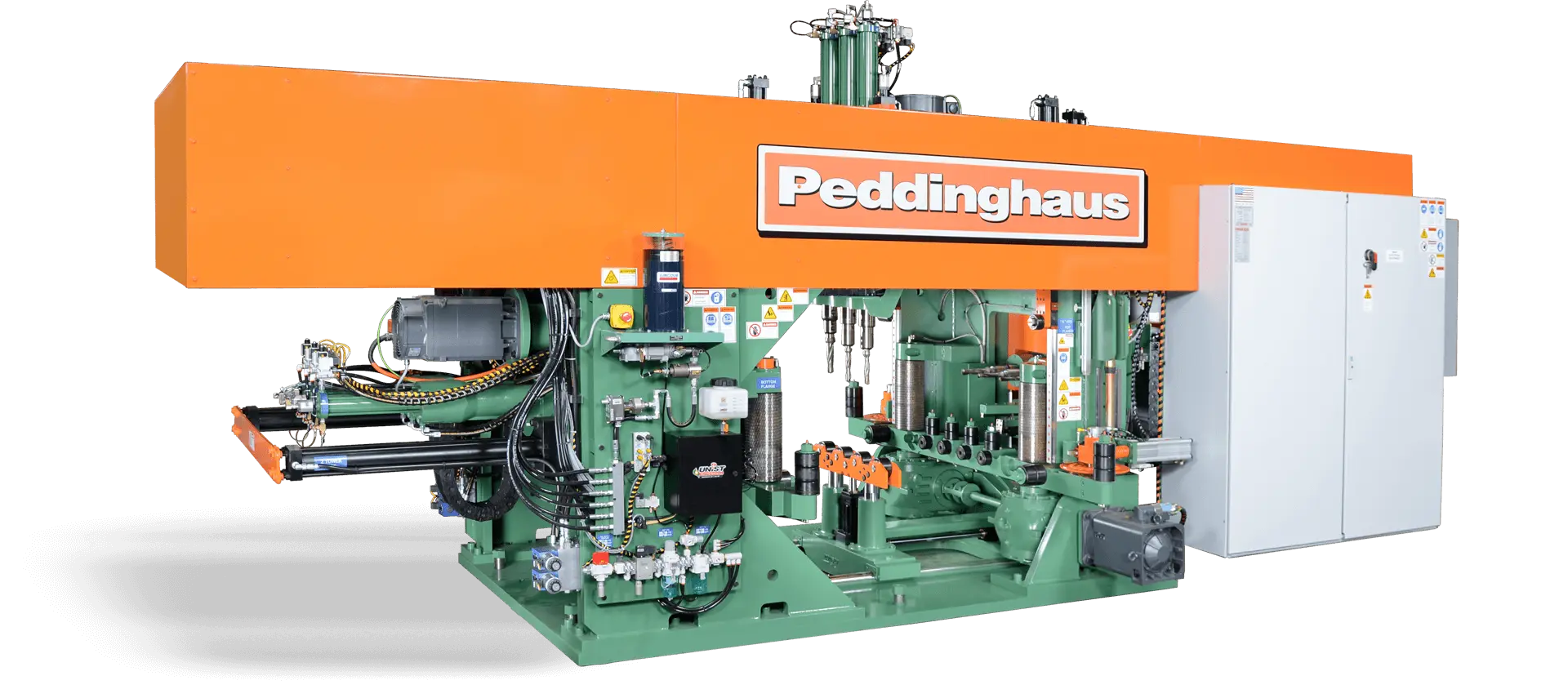

The drill assemblies of the BDL-1250/9D employ 25 HP (18.5 kW) Siemens servo motors. These spindles boast a speed range of 145-1800 RPM. The exceptional strength of the BDL-1250/9D spindles allow for faster processing times in drilling, tapping, countersinking and scribing using carbide tooling.

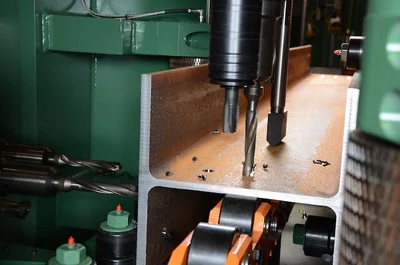

The three drill assemblies on the BDL-1250/9D operate simultaneously or independently of one another using either the same or different drill diameters, speeds and feeds.

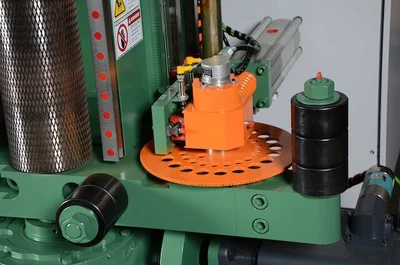

Peddinghaus’ Roller Feed Measurement system exceeds the industry standard for roller measurement technology. Maintaining accurate measurements without any hesitation in production is crucial. Accuracy is not compromised even despite deviations in material.

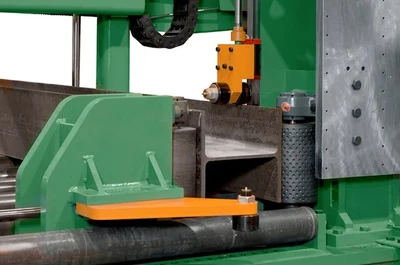

The BDL-1250/9D employs a series of support clamps in order to achieve optimum rigidity of the workpiece through the machine. Carbide tool life is best sustained with the least amount of vibration possible.
Optional drill break-through detection technology speeds up processing time by minimizing spindle run time. The spindle automatically detects breakthrough of the drilled hole, and rapidly retracts. It then advances to the next hole in the part program. Carbide tooling, along with break-through detection, help the BDL-1250/9D reach record-low processing times with beams, channel, angle, tube and flat bar.

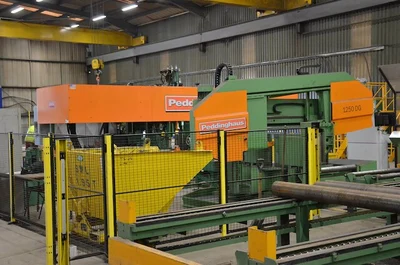

The BDL-1250/9D heavy duty beam drill line with its powerful material handling support, meticulous measurement capabilities and high speed designs are ideal for tandem installations with any of Peddinghaus’ automatic sawing systems.
Saw measurement options are available via the Peddinghaus AccuMeasure Roller Feed measurement system. The AccuMeasure allows for complete handling versatility, while maintaining a streamlined CNC solution. Splitting apart a drill and a saw allows neither machine to wait for the other, maximizing production.
Developed by Peddinghaus, Raptor 3D CAD/CAM Software takes CNC innovation further by enabling users to program faster and more accurately. Inspect, modify and export part information directly within the 3D platform. This coupled with Peddinghaus CNC technology means maximum capacity for fabricators.
