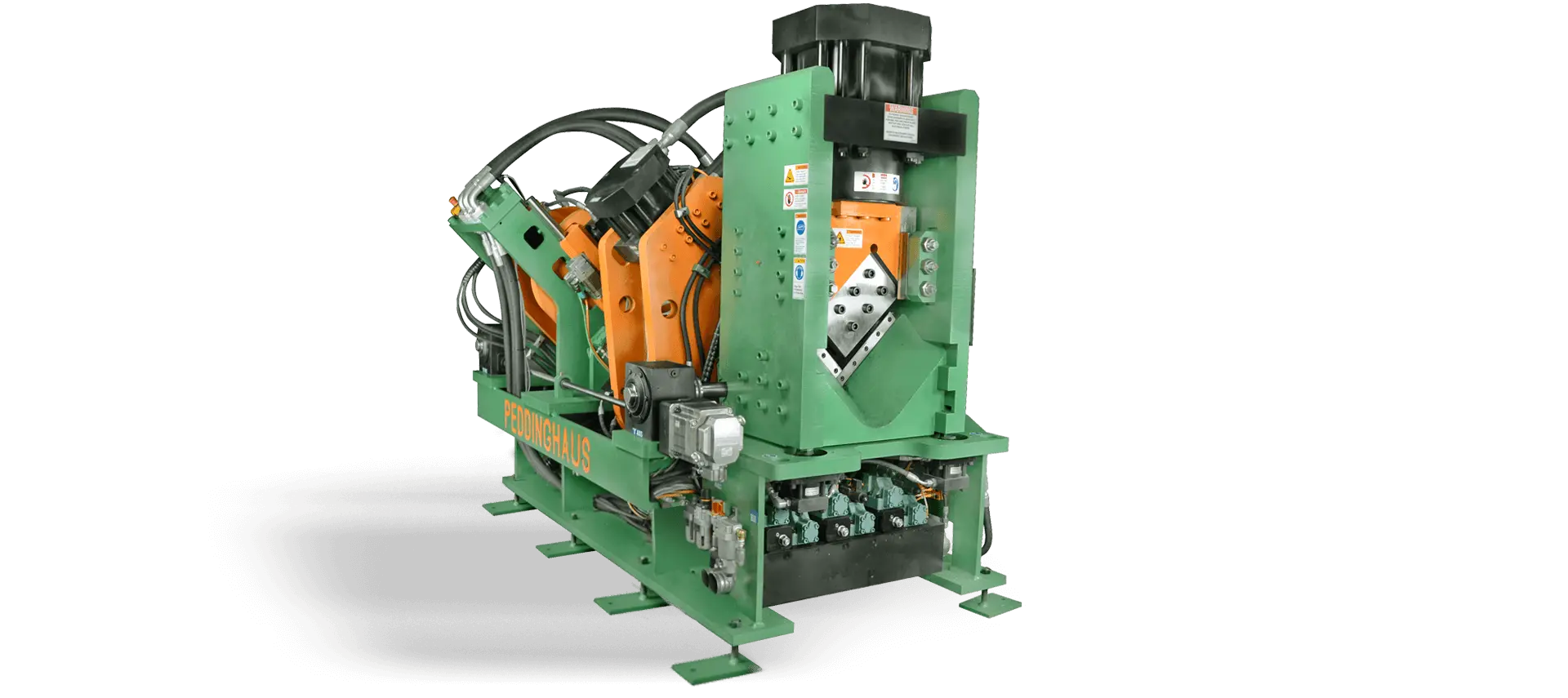

Detail components make up the smallest tonnage of any fabricators’ workload, but consistently demand the highest amount of labor. The Anglemaster-HD CNC angle line has the ability to process both a fabricators’ thinnest angle stock and thickest angle stock. By utilizing an array of dimensioning feedback, the Anglemaster-HD can identify the length and thickness of material. With this information, punch and shear motions are optimized to increase production efficiency.
Product Details
Angle and Flat Line, SignoScript Carbide Scribing, SignoMat Part Stamping, Roller Feed Measurement, Minimum Quantity Lubrication, Superior Clamping System, Siemens Advanced Control, Raptor Software, Punching, Shearing, Material Infeed System, Material Outfeed System
Process: 1″ thick angle and flat bar
Triple Tool: 169 ton punch presses

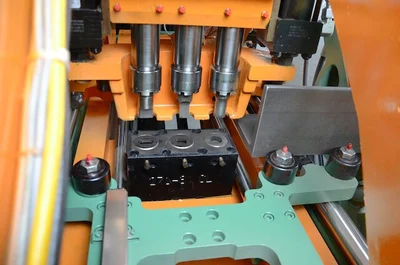

Two 169 ton punch cylinders each with three punch stations per hydraulic press allow the Anglemaster-HD to apply up to three different hole shapes/sizes per leg. This CNC angle line can accommodate shaped holes such as squares, rectangles, obrounds and slots.

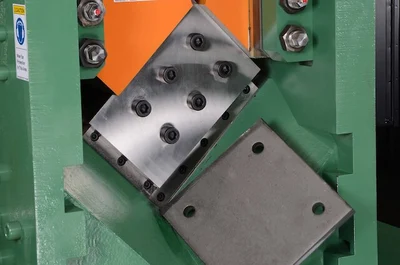

The Anglemaster-HD uses a single cut 515 ton shear press for the cutting to length angle and flat stock. A single cut shear mechanism eliminates the slug created by double cut shear mechanisms.
The SignoScript layout marking attachment eliminates human error in manual layout methods. Complete information is maintained throughout blasting, galvanizing and painting processes.

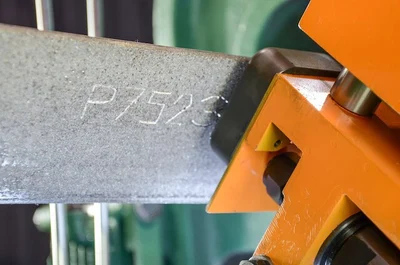

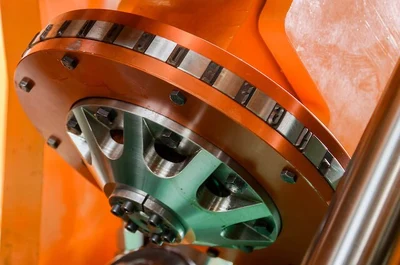

The SignoMat part stamping unit stamps at an unmatched 1 character per second with a depth of 1/32″ (.8 mm) and a total height of 1/2″ (12 mm). The unit holds up to 36 characters for complete part marking ability.

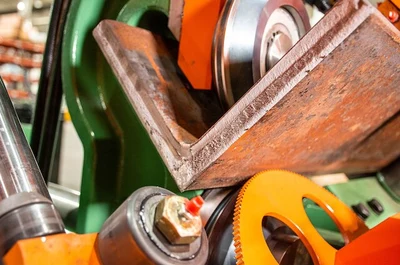

Equipped with the Peddinghaus Roller Feed measurement system, the Anglemaster-HD maximizes contact with the material at all times. This Roller Feed technology ensures a constant roll and an accurate measurement given deviations in material.

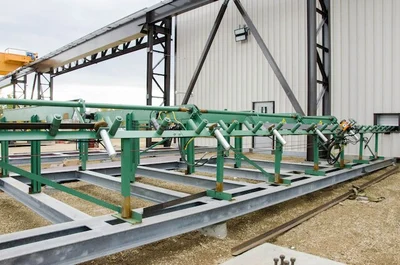

The infeed and outfeed material handling system, designed for continuous production, keeps the operator safe at all times. As drag chain conveyors move material to the infeed conveyors, power material advance initiates steel into the machine. Once sheared, drive rollers advance the finished parts to the unloading zone.
Developed by Peddinghaus, Raptor 3D CAD/CAM Software takes CNC innovation further by enabling users to program faster and more accurately. Inspect, modify and export part information directly within the 3D platform. This coupled with Peddinghaus CNC technology means maximum capacity for fabricators.
