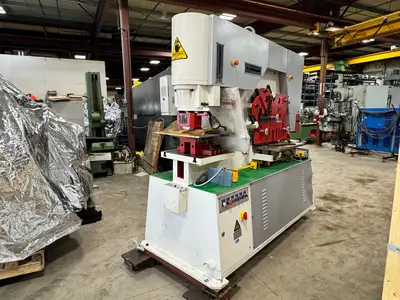

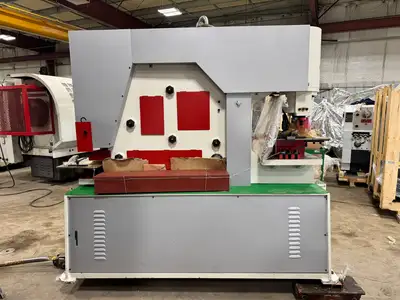

Masteel MIWH-130 Hydraulic Ironworker

Machine Description

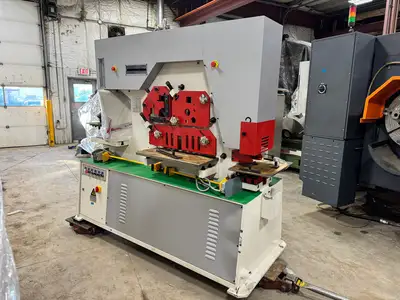

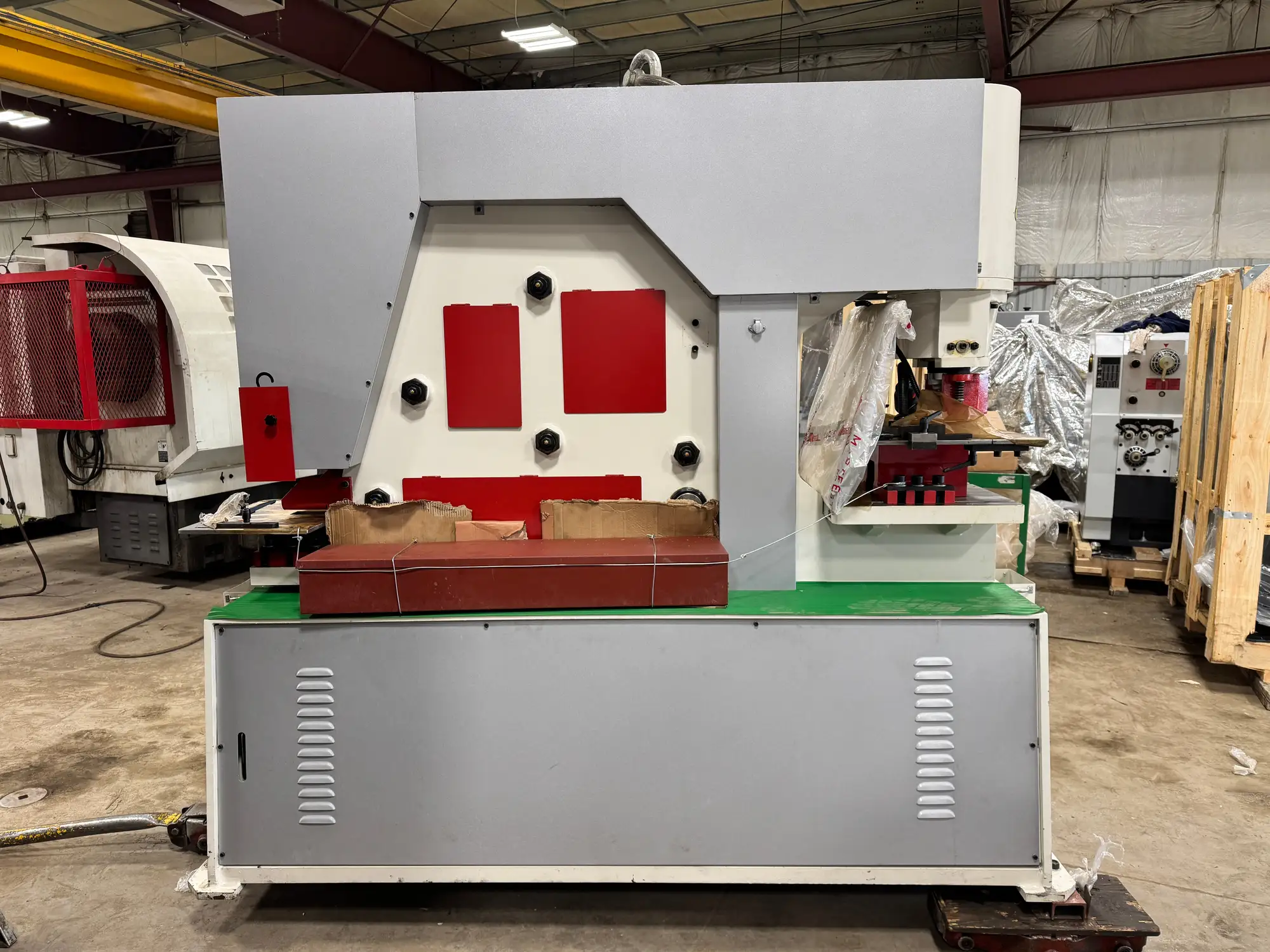

Masteel MIWH-130 is a heavy-duty hydraulic ironworker designed for production punching, shearing and notching of structural and flat steel. With 1200 kN of punching force, it can punch holes up to 35 mm diameter in 25 mm plate and handle large flats, rounds and angles in one compact footprint. Multiple workstations provide punching, flat bar shearing, section cutting and notching, each with dedicated tables and hold-downs for safe, accurate processing. The machine runs on a 3-phase 220 V, 60 Hz electrical supply with low-voltage 24 V controls and convenient foot pedal operation for hands-free work. This model is a popular choice in Canada for industrial metal fabrication where a single machine must cover a wide range of shop tasks.

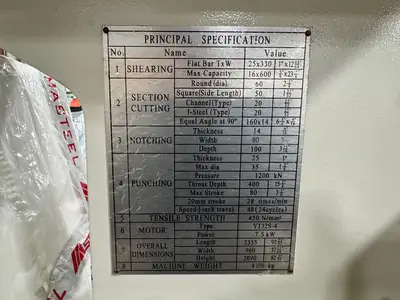

Specification
Machine: Hydraulic Ironworker
Brand: Masteel
Model / Type: MIWH-130

Material rating
Maximum material tensile strength: 450 N/mm²

Shearing station – flat and round bar
Flat bar shear capacity (max thickness × width, heavy cut): 25 mm × 330 mm (approx. 0.98" × 12.99")
Flat bar shear capacity (max thickness × width, wide cut): 16 mm × 600 mm (approx. 0.63" × 23.62")
Round bar shear capacity (diameter): 60 mm (approx. 2.36")

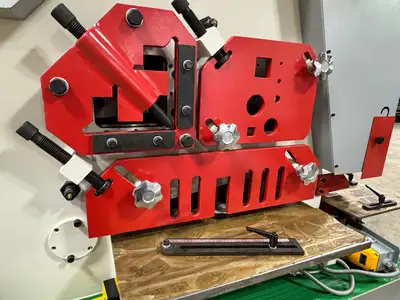

Section cutting station
Square bar cutting capacity (side length): 50 mm (approx. 1.97")
Channel cutting capacity: Type 20 (per capacity plate)
I-beam cutting capacity: Type 20 (per capacity plate)
Equal angle at 90°: 160 mm × 14 mm (leg size × thickness) (approx. 6.30" × 0.55")

Notching station
Maximum material thickness: 14 mm (approx. 0.55")
Maximum notch width: 80 mm (approx. 3.15")
Maximum notch depth: 100 mm (approx. 3.94")

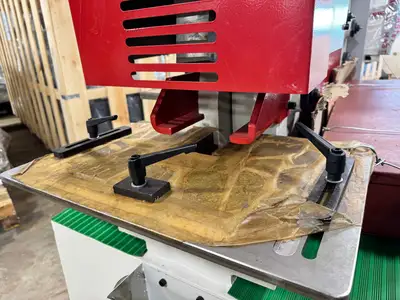

Punching station
Maximum material thickness: 25 mm (approx. 0.98")
Maximum punching diameter: 35 mm (approx. 1.38")
Punching force / pressure: 1200 kN (approx. 122 t)
Throat depth: 400 mm (approx. 15.75")
Ram stroke (maximum): 80 mm (approx. 3.15")
Stroke rate at 20 mm stroke: 28 strokes per minute
Stroke rate at 3" stroke: 48 strokes per minute (24 cycles per minute, as stated on plate)

Motor and drive
Main motor type: Y132S-4
Main motor power (capacity plate): 7.5 kW

Electrical system
Power supply: 3-phase
Voltage: 220 V
Frequency: 60 Hz
Installed power (electrical cabinet plate): 11 kW
Control voltage: 24 V
Trip current: 40 A

Controls and operation

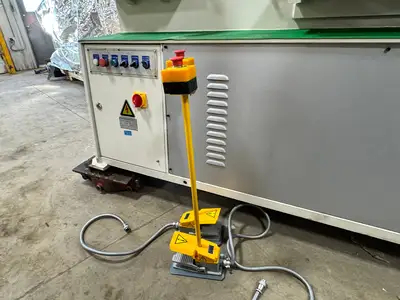

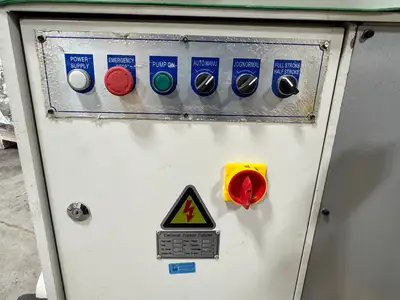

Operator controls on front cabinet: Power Supply, Emergency Stop, Pump On, Auto/Manual, Jog/Normal, Full Stroke/Half Stroke selectors and pushbuttons
Foot control: dual foot pedal assembly with integrated emergency stop

Overall dimensions and weight
Machine length: 2355 mm (approx. 92.72")
Machine width: 960 mm (approx. 37.80")
Machine height: 2090 mm (approx. 82.28")
Machine weight: 4300 kg

Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
