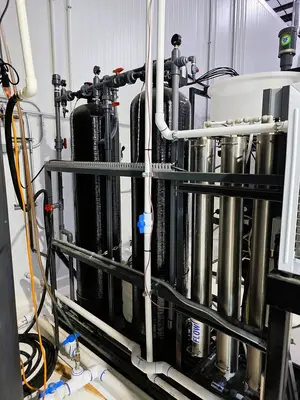

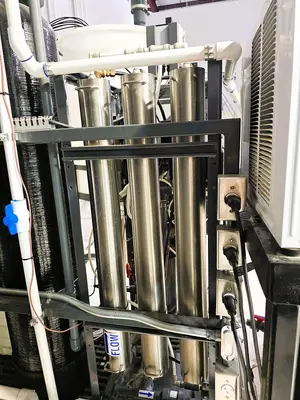

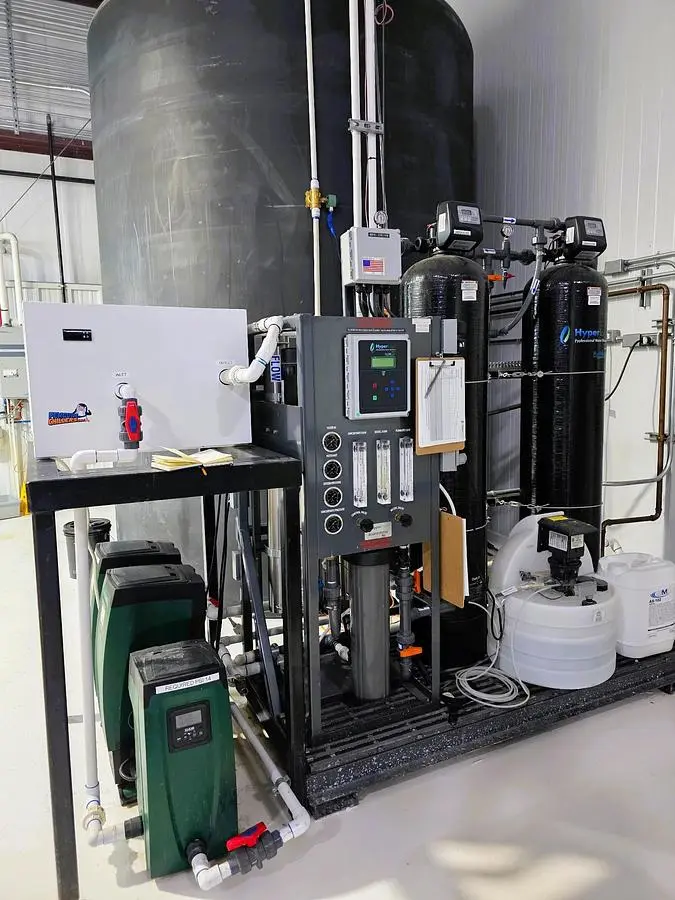

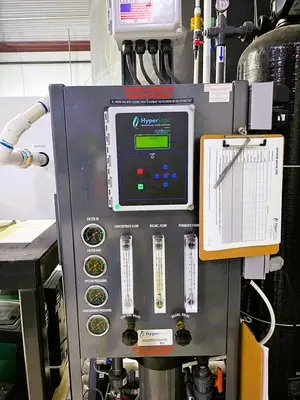

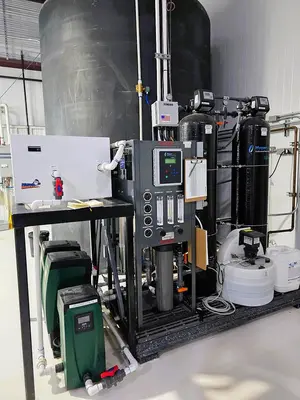

Hydro-Logic® HyperLogic® Custom Water Filtration System, includes Plug n Play upgrade option and additional filter housing

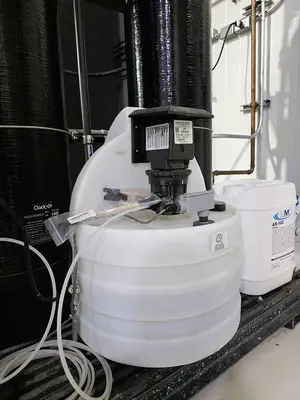

Descaling Tub

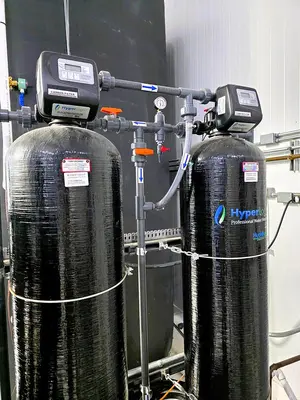

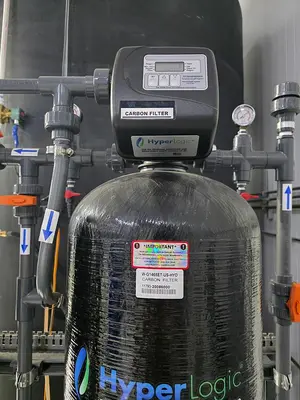

(3) Carbon Filter housings
Penguin Chiller

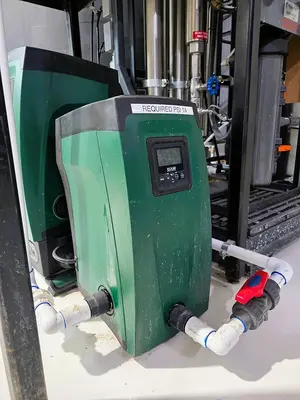

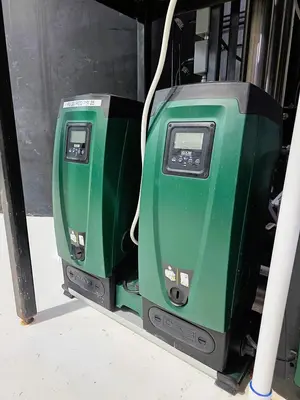

(3) Water recirculation pumps
Piping diameter is 1"
Replacement filter housing included
Power Requirements:
Water Filtration Equipment:
• 220V, Single Phase, 60 Hz
• 1 Horsepower High Pressure Pump on RO Unit
• HyperLogic RO Unit = 12.4 Amps
• Prefiltration = 2 Amps
• Total Amperage of Entire Skid System = 15 Amps
Dimensions:
• 30” Wide x 72” Long x 80” Tall
• System needs a 96” height clearance, a 24” clearance behind and to the left and right, and a 36”
clearance in front
Total Weight:
• Approximately 1,800 lbs.
* Brand: Hydro-Logic®
* Build: Corrosion-resistant, long-lasting design
* Maintenance: Easy-access filter replacement
