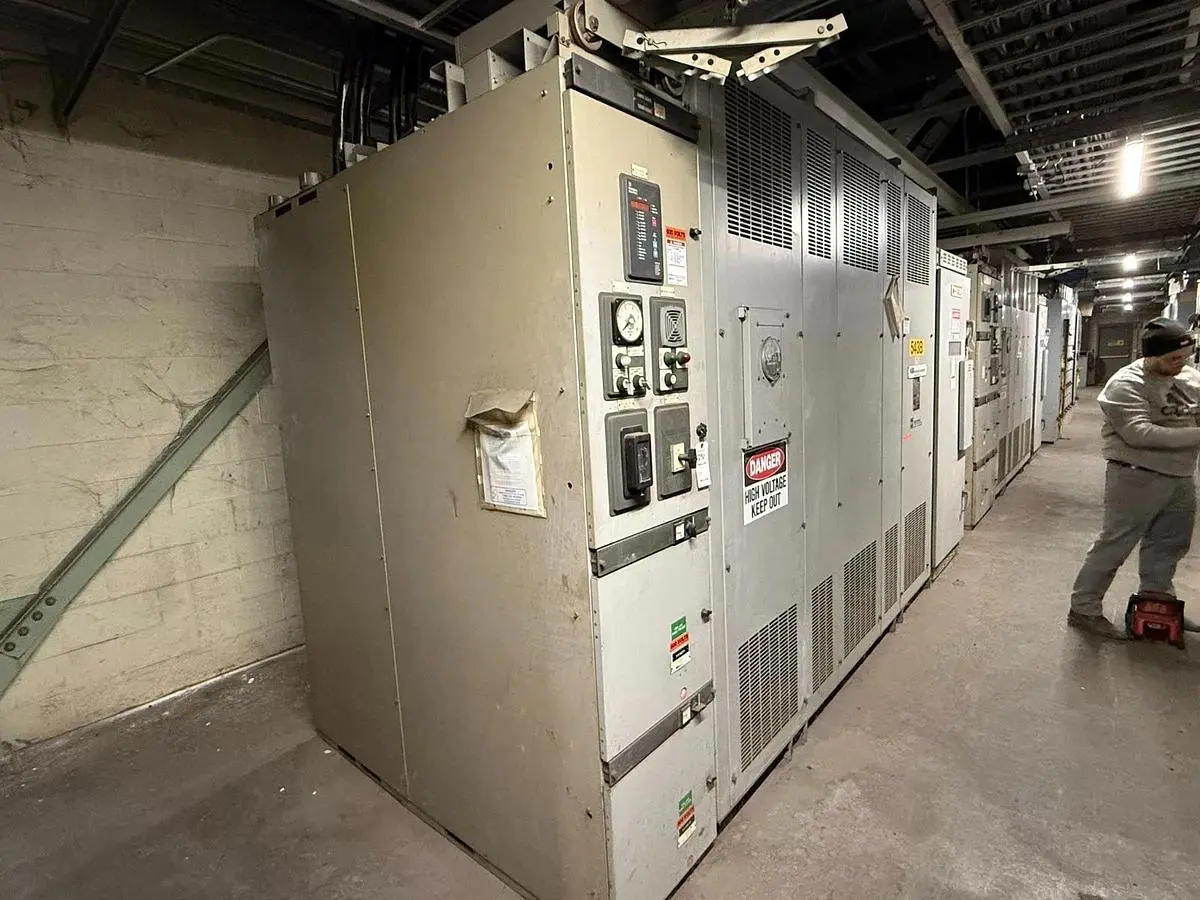

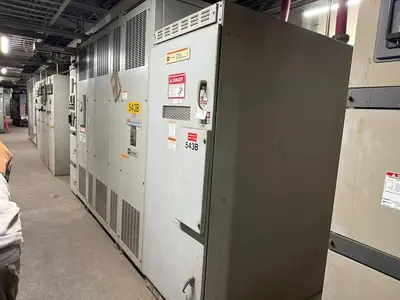

ABB CUTLER HAMMER 2500/3333 kVA 13800 Delta to 600Y Dry Type Transformer W/ GEAR

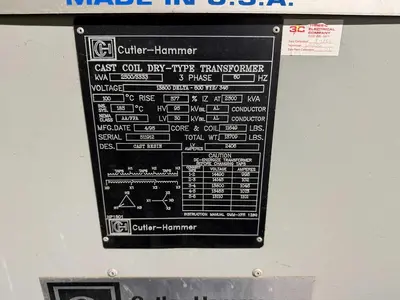

Equipment Identification
Manufacturer: Cutler-Hammer (ABB National Industri)
Type: Cast Coil Dry-Type Transformer
Phases: 3-phase
Frequency: 60 Hz
Cooling / Insulation: Cast resin (dry-type)
Manufacture Date: 04 / 1995
Instruction Manual: IOM-XFR 1280
Power Rating
kVA: 2500 / 3333
2500 kVA self-cooled (AA)
3333 kVA forced-air (FA)
Voltage Ratings
Primary (HV): 13,800 V Delta
Secondary (LV): 600Y / 346 V Wye (grounded)
Electrical Characteristics
Impedance: 5.76 % Z @ 2500 kVA
Temperature Rise: 100 °C
Insulation System: 185 °C
HV BIL: 95 kV
LV BIL: 30 kV
Conductor Material: Aluminum (HV & LV)
Current Ratings
Low-Voltage Amps: 2406 A
High-Voltage Amps (by tap):
14,490 V â 996 A
14,145 V â 1022 A
13,800 V â 1046 A (nominal)
13,455 V â 1073 A
13,110 V â 1101 A
Weight
Core & Coil: 11,649 lb
Total Weight: 13,709 lb
