NEW PILZ 512120

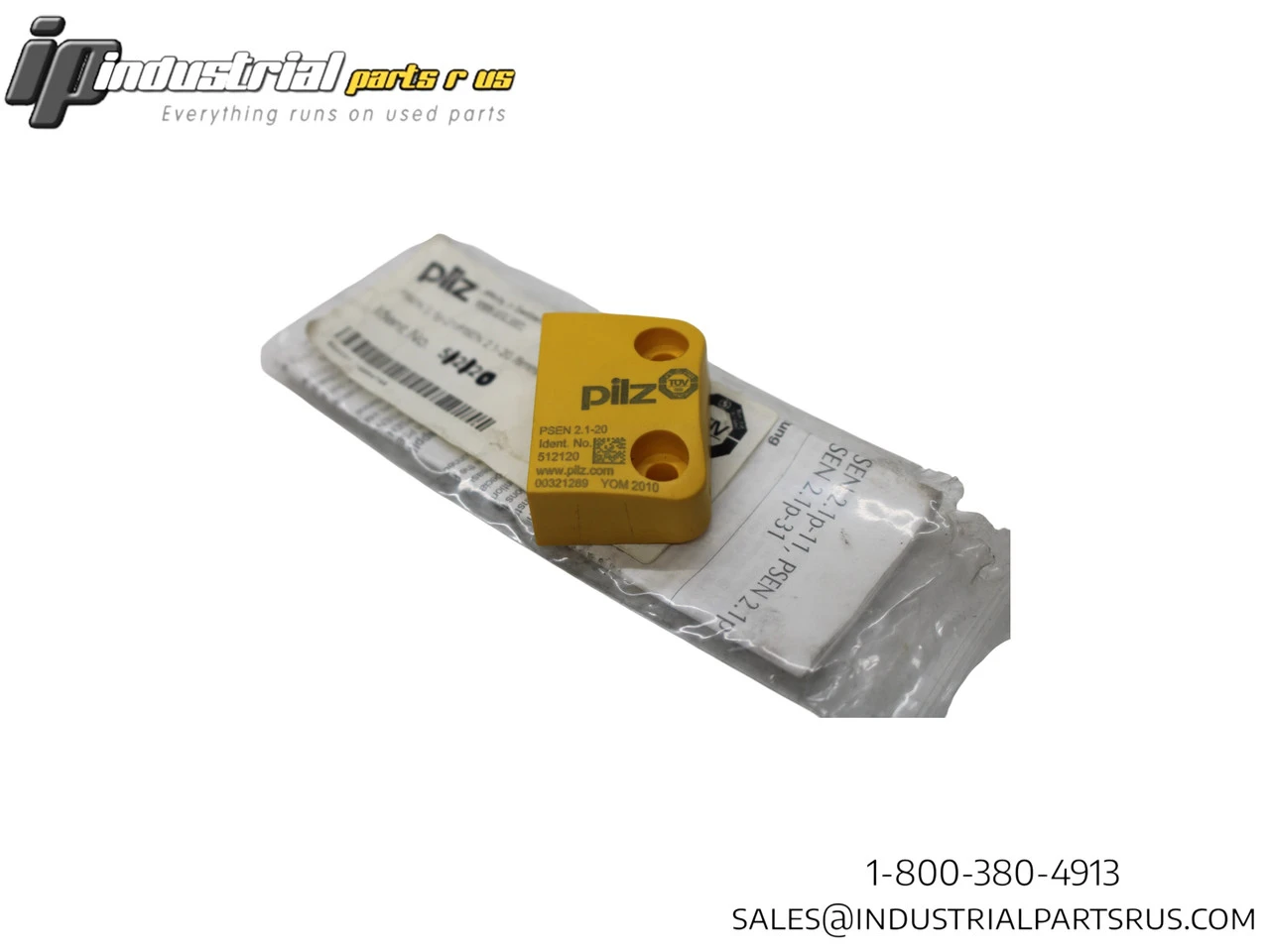

Pilz 512120 PSEN 2.1-20 Magnetic Safety Switch Actuator
is designed for use with Pilz PSENmag magnetic safety switches. This
square design actuator
provides
IP69K protection
for harsh industrial environments.
Operating Distance:
8/12 mm depending on configuration
Compact Design:
13 mm height design for space-constrained applications
Temperature Range:
-25°C to +70°C ambient operating temperature
Material:
PBT housing construction for durability
Dimensions:
26mm (W) x 36mm (H) x 13mm (L)
Color:
Yellow housing for easy identification
Protection Rating:
IP67/IP69K for protection against water and dust
This actuator is specifically designed to work with PSEN 2.1 series magnetic safety switches for door monitoring and safety applications in industrial automation systems.
