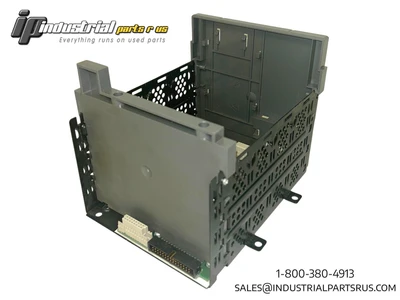

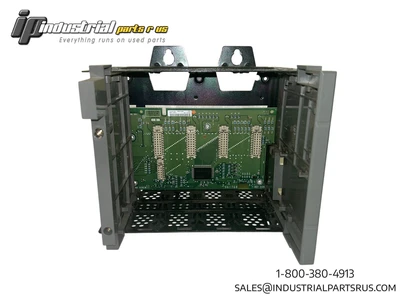

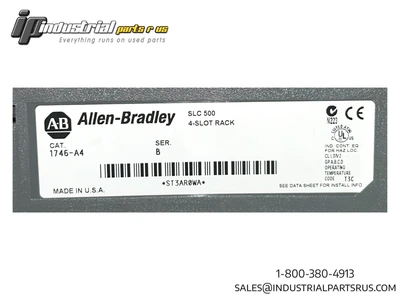

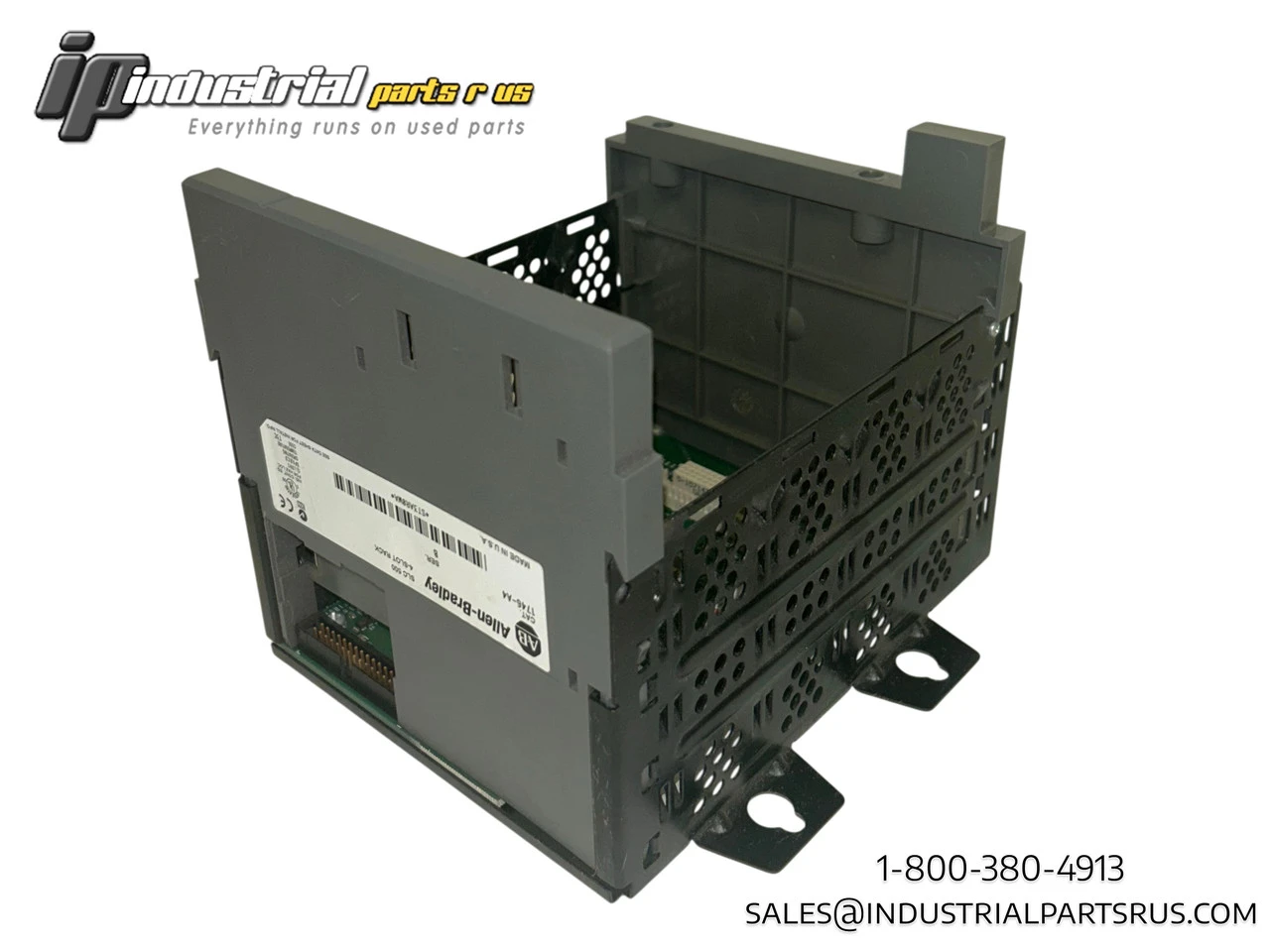

USED ALLEN BRADLEY 1746-A4

The Allen Bradley 1746-A4 is a SLC 500 modular I/O chassis designed for industrial automation applications requiring precise control of manufacturing processes, material handling systems, and motor control operations. This compact 4-slot chassis provides the foundation for SLC 500 control systems and can accommodate up to three interconnected chassis for expanded I/O capability.
Specification
Value
Brand
Allen Bradley
Model Number
1746-A4
Product Family
SLC 500
Product Type
PLC Chassis
Number of Slots
4
Maximum Backplane Current
5.1V DC @ 10A, 24V DC @ 2.88A
Dimensions
6.73" x 6.97" x 5.71"
Weight
1.6 lbs (0.7 kg)
Operating Temperature
0°C to 60°C (32°F to 140°F)
Mounting Style
Panel Mount
Compatible Modules
1746 Series I/O Modules
Maximum Chassis Connection
Up to 3 chassis (30 I/O slots max)
We warranty all items for 30 days from date of purchase.
