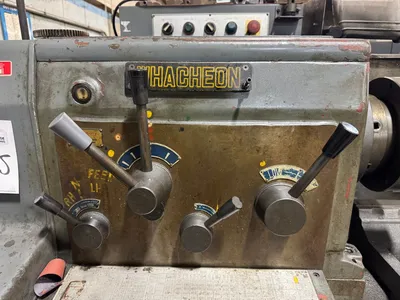

USED 1985 Whacheon 20-1/2" G x 80"

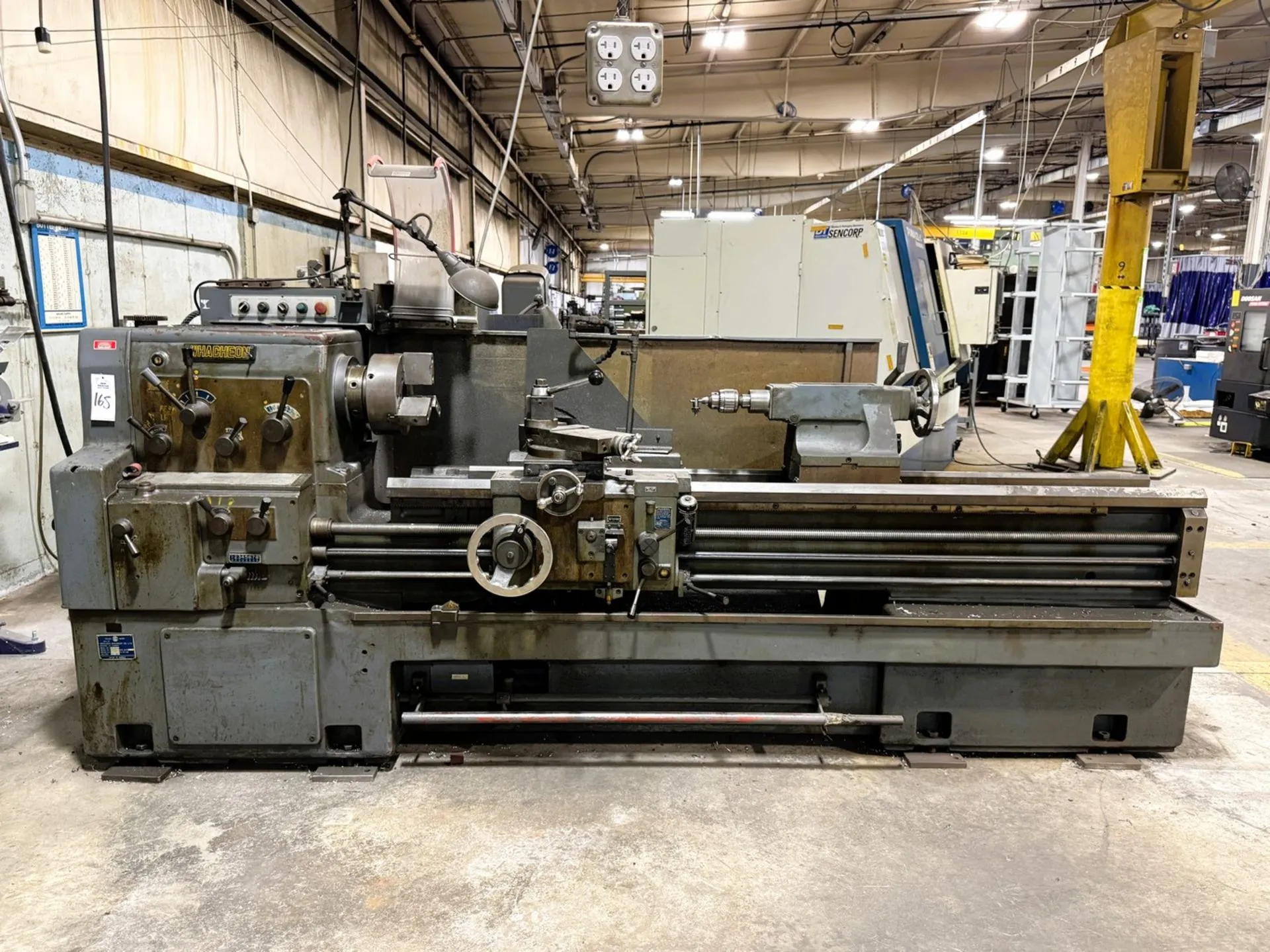

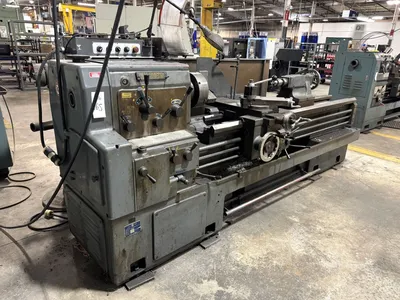

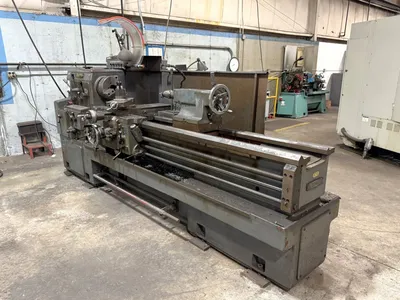

20.5"/29.5" x 80" WHACHEON GAP BED ENGINE LATHE

 S/N: L12851109, NEW 1985

SPECIFICATIONS:

SWING OVER BED AND CARRIAGE WINGS ......... 20-1/2"

SWING OVER GAP ............................ 29-1/2"

LENGTH OF GAP, APPROXIMATELY .............. 7-5/8"

SWING OVER CROSS SLIDE .................... 11-3/4"

DISTANCE BETWEEN CENTERS .................. 80"

SPINDLE HOLE .............................. 2-3/64"

SPINDLE NOSE CAMLOCK ...................... D1-6

HEADSTOCK SPINDLE CENTER TAPER ............ #4 MORSE

SPINDLE SPEEDS (12) ....................... 28 -1,350 R.P.M.

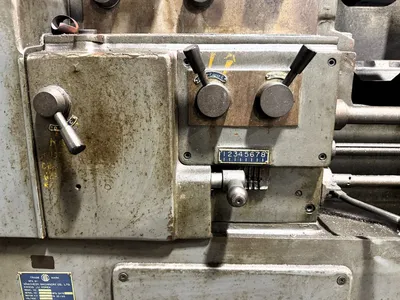

FEED CHANGES, LONGITUDINAL (40) ........... .0010 -.0196 IPR

THREADS, INCH ............................. 4-80 T.P.I.

METRIC .................................... .25-7 MM

TAILSTOCK SPINDLE CENTER TAPER ............ #5 MORSE

TAILSTOCK SPINDLE TRAVEL .................. 6"

APPROXIMATE DIMENSIONS .................... 137"x 54"

APPROXIMATE WEIGHT ........................ 7,500 LBS.

EQUIPPED WITH:

- REMOVABLE GAP BED

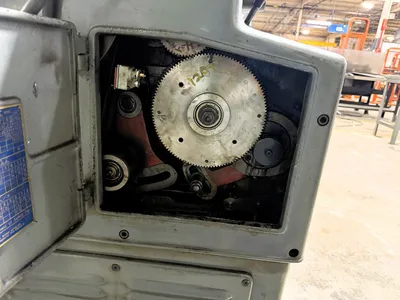

- INCH AND METRIC THREADING CAPABILITY

- HARDENED AND GROUND BED WAYS

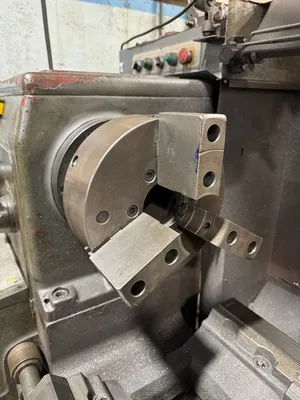

- THREE-JAW CHUCK

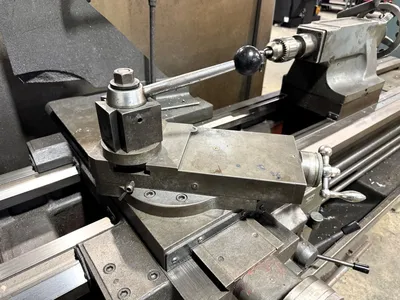

- QUICK CHANGE TOOLPOST WITH HOLDER

- FULL LENGTH FOOT TREADLE OPERATED SPINDLE BRAKE

- THREADING DIAL

- MICROMETER CARRIAGE STOP

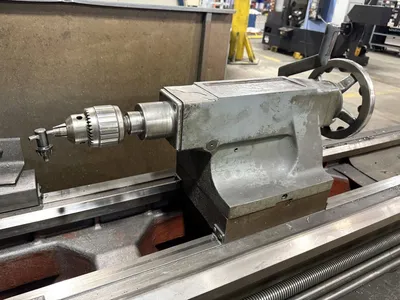

- JACOBS DRILL CHUCK FOR TAILSTOCK

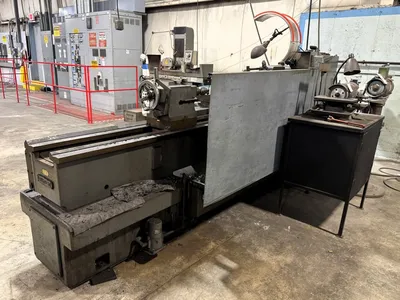

- SELF-CONTAINED COOLANT SYSTEM WITH FULL LENGTH REAR SPLASH GUARD

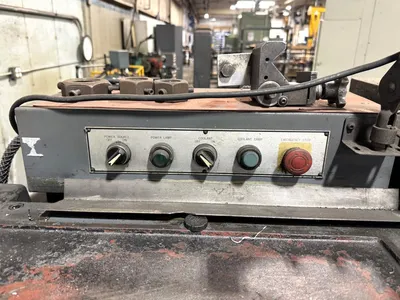

- 10 H.P. 3/60/220-440 VOLT SPINDLE DRIVE MOTOR AND ELECTRICAL CONTROLS

FOR MORE INFORMATION: Call David at 973-497-7570
