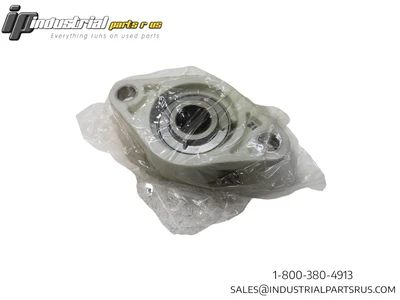

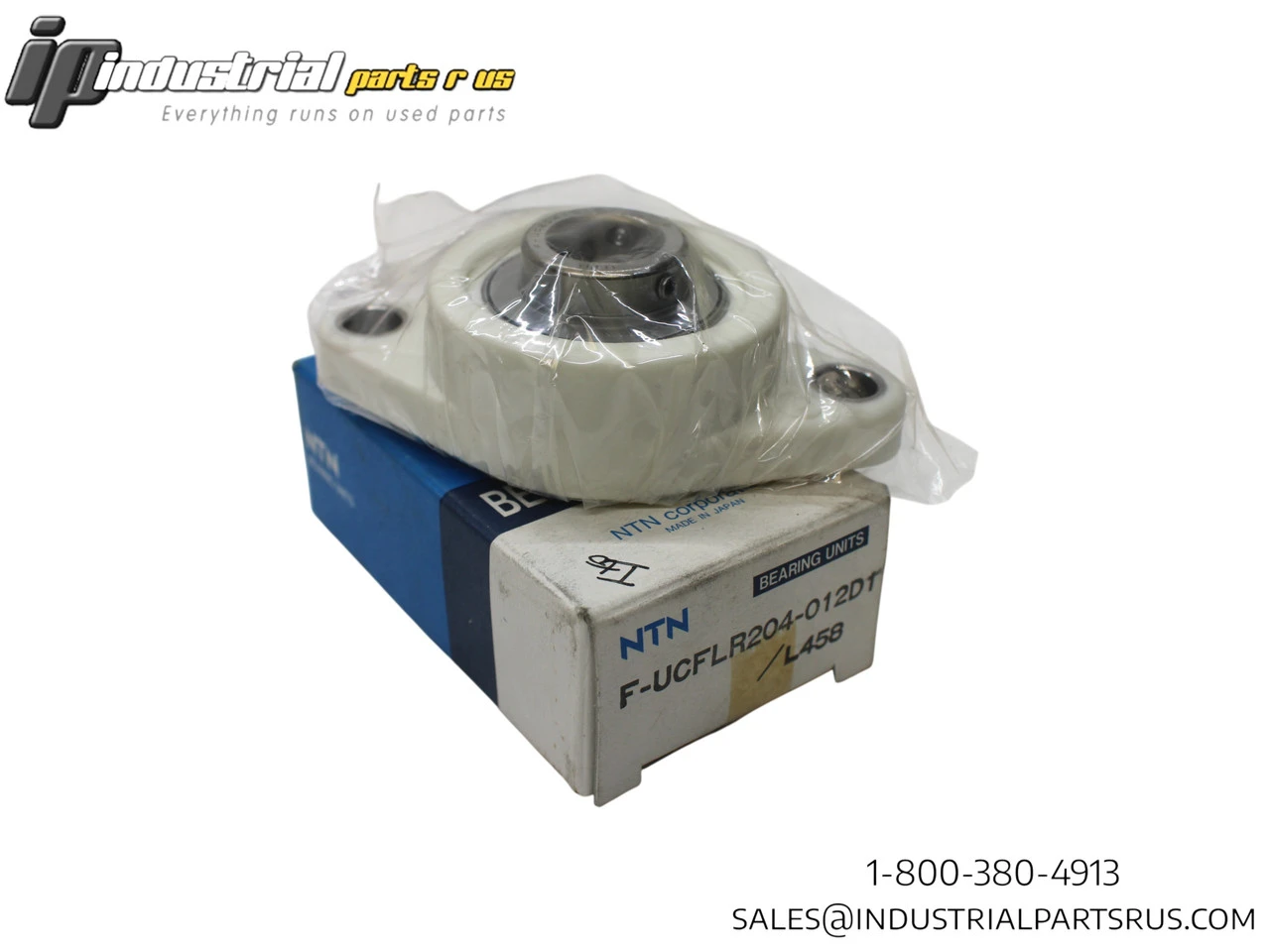

NEW NTN F-UCFLR204-012D1/L458

This NTN F-UCFLR204-012D1/L458 is a light duty flange bearing unit with a 3/4" (19.05 mm) bore diameter, featuring setscrew lock mechanism and contact and flinger seals in a cast iron housing
.
The unit operates at maximum speeds up to 6700 rpm with operating temperature range from -40 to 120°C
.
It provides 12800 N dynamic load capacity and 6650 N static load capacity
.
The bearing is regreasable for easy maintenance
and
features nitrile rubber seals for protection against contaminants
.
This 4-bolt square flange mounting configuration offers 64 mm bolt center-to-center spacing with 64 mm diameter bolt circle
.
Applications:
Industrial machinery, conveyor systems, agricultural equipment, and general mechanical power transmission applications requiring reliable shaft support and alignment.

SKU: AI0035
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Japan
GTIN: 679523686161
Manufacturer: NTN
Part Number: F-UCFLR204-012D1/L458
Shelf: A-2
Model: F-UCFLR204-012D1/L458
MPN: F-UCFLR204-012D1/L458
Type: Industrial Equipment
