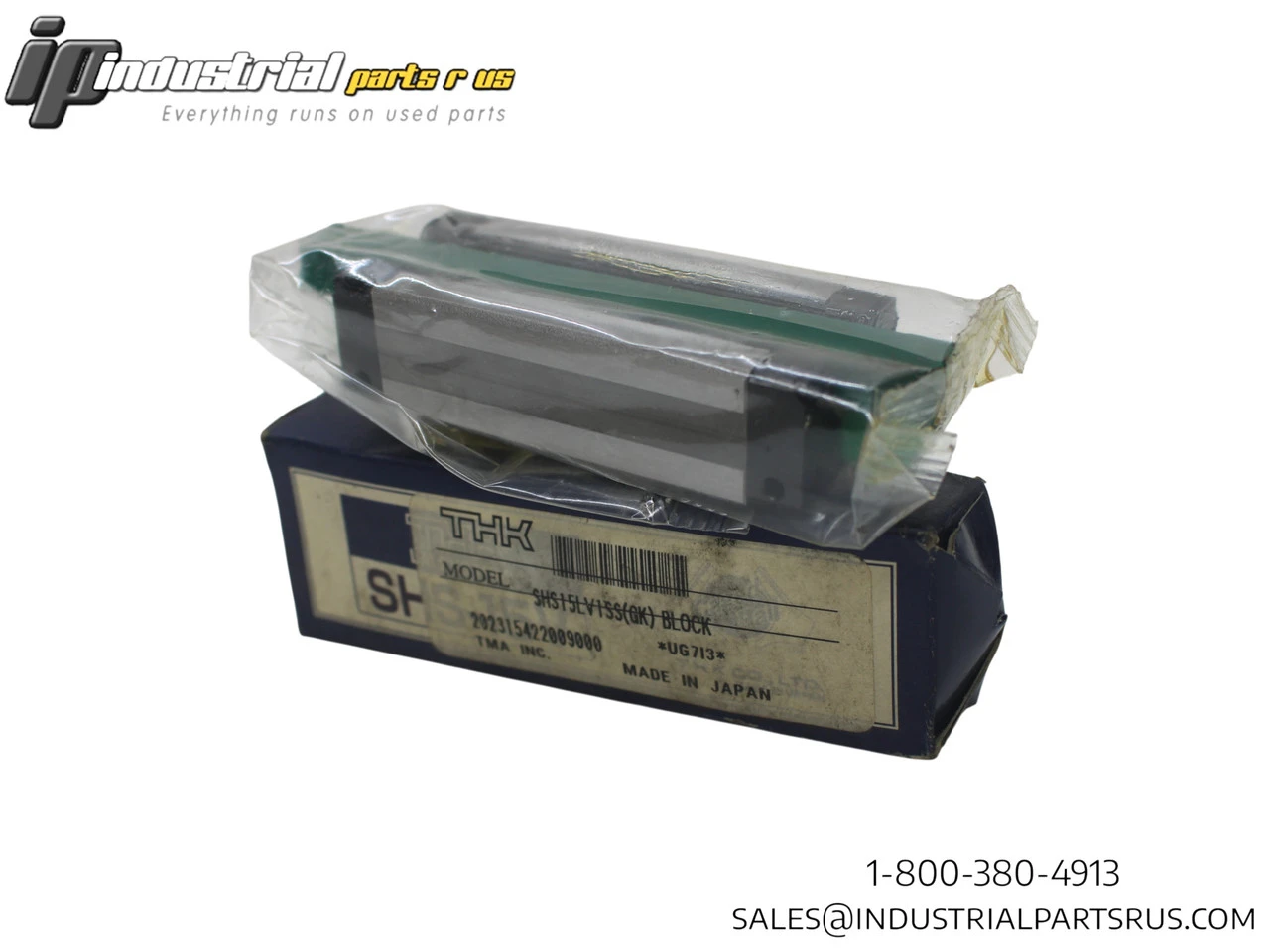

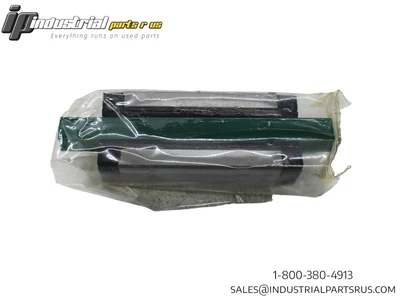

The THK SHS15LV1SS is a
caged ball linear guide block
from the SHS series, designed for precise linear motion applications.
This global standard interchangeable linear carriage is designed for 15mm rail with dimensions of 34mm wide x 79.4mm long
.
Caged ball design provides high-speed rotation, low noise level, and extended service life
Each row of balls is placed at a contact angle of 45° for uniform loads in all four directions (radial, reverse-radial and lateral directions)
Self-adjusting blocks enable mounting error absorption, even under preload, for highly accurate, smooth linear motion
Longer overall block length (L) and greater rated load compared to standard SHS-V blocks
Dynamic Load Rating: 17.2kN (17,200N)
Static Load Capacity: 31.9kN
Ideal for CNC machinery, automated systems, and precision equipment requiring smooth, accurate linear motion with high load capacity.
| Weight | 1.00 LBS | 1.00 LBS |
SKU: AI0041
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Japan
GTIN: 679523686161
Manufacturer: THK
Part Number: SHS15LV1SS
Shelf: A-6
Model: SHS15LV1SS
MPN: SHS15LV1SS
Type: Industrial Equipment
