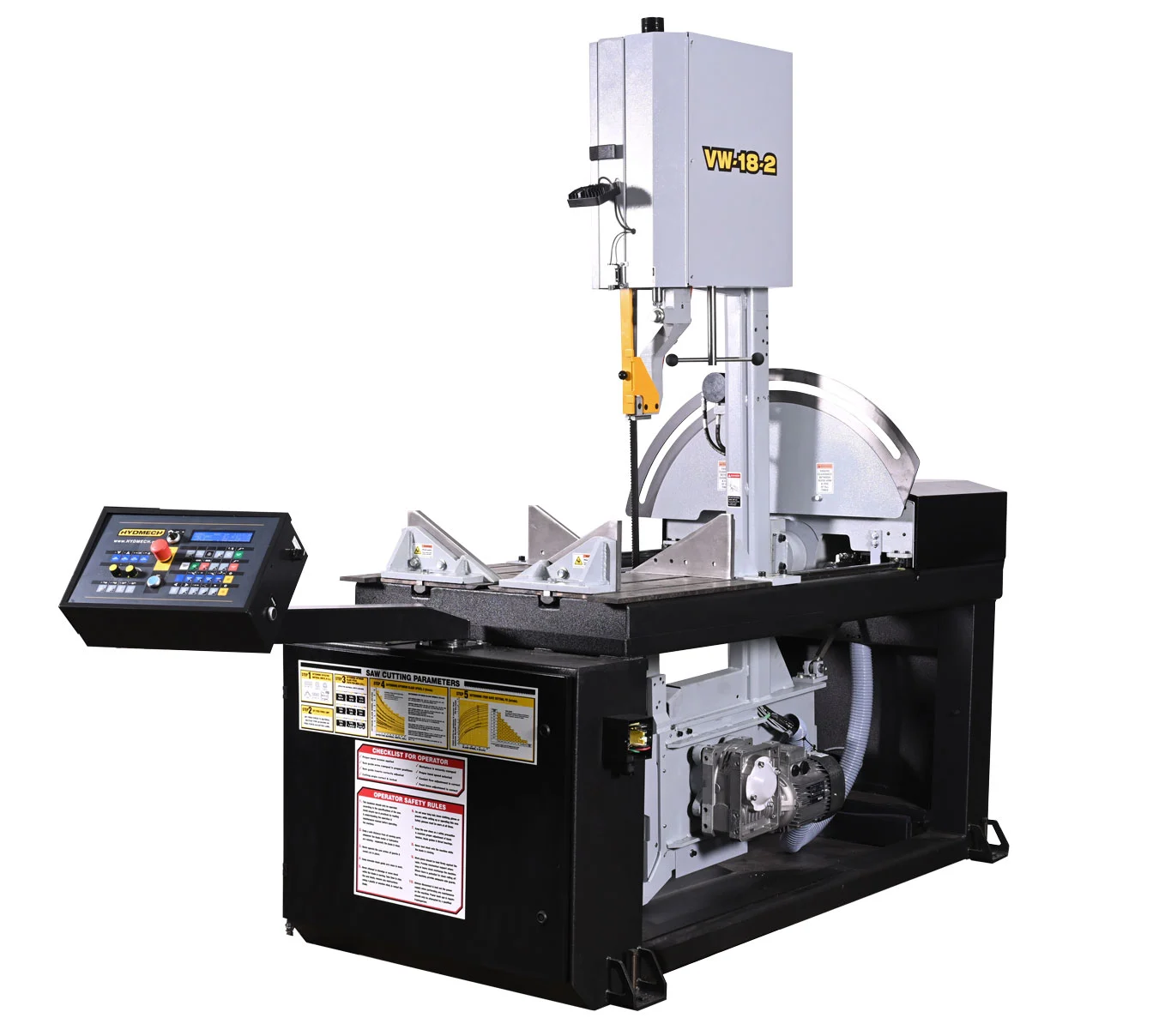

18″ x 22″ New HydMech Vertical Mitering Band Saw Model VW-18-2

18″ x 22″ New HydMech Vertical Mitering Band Saw Model VW-18-2 Specifications:
18″ x 22″ New HydMech Vertical Mitering Band Saw Model VW-18-2 Standard Features:
Adjustable 3° canted head
Double articulating, semi-automatic control
Two full stroking hydraulic vises
Manual precise head positioning from 60° left to 60° right
Digital angle display w/ protractor
Mechanically adjustable guide arm
On-demand hydraulics save energy
5 HP VFD. True direct blade drive – no belts/pulleys
Hydraulic positive down feed
Cast iron band wheels
Replaceable blade brush
Robust steel base
Easy access electrical panel and hydraulics
Blade breakage switch
Mechanical band tensioning with digital readout
Replaceable carbide guide inserts
.5 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Variable vise pressure
18″ x 22″ New HydMech Vertical Mitering Band Saw Model VW-18-2 Optional Features:
Power tilt with programmable go to angle
Chip bucket
Hydraulic overhead bundling (bundling and work stop cannot be used at the same time)
Mist lubrication
Work stop – 34″ (bundling and work stop cannot be used at the same time)
Tall square vise inserts
Power transformer
Idler conveyors

18″ x 22″ New HydMech Vertical Mitering Band Saw Model VW-18-2 Optional Accessories:

90° standard head rectangular (h x w): 22″ x 18″
90° standard head round: 17.5″ Tall square vise inserts are required if cutting a round piece larger than 12.5” and only allow for 90° cuts.
90° 3° canted head rectangle (h x w): 20.75″ x 18″
90° 3° canted head round: 17.5″ Tall square vise inserts are required if cutting a round piece larger than 12.5” and only allow for 90° cuts.
45° standard head rectangular (h x w): 15″ x 18″
45° standard head round: 12.5″
45° 3° canted head rectangle (h x w): 14″ x 18″
45° 3° canted head round: 12.5″
60° standard head rectangular (h x w): 10.25″ x 18″
60° standard head round: 10.25″
60° 3° canted head rectangle (h x w): 9.5″ x 18″
60° 3° canted head round: 9.5″
Blade Drive: 5 HP VFD
Blade Speed: 65-385 SFM
Blade Size: 1.25″ x 16′ 3″
Table Height: 36.5″
Voltages Available: 480 v (208 or 575 require transformer-available as an option)
Weight: 2,700 lbs
Dimensions (w x l x h): 36″ x 95″ x 96″
Coolant Tank Capacity: 12 Gallons
Hydraulic Tank Capacity: 4 Gallons
Mitering Capability: 60° left to 60° right
