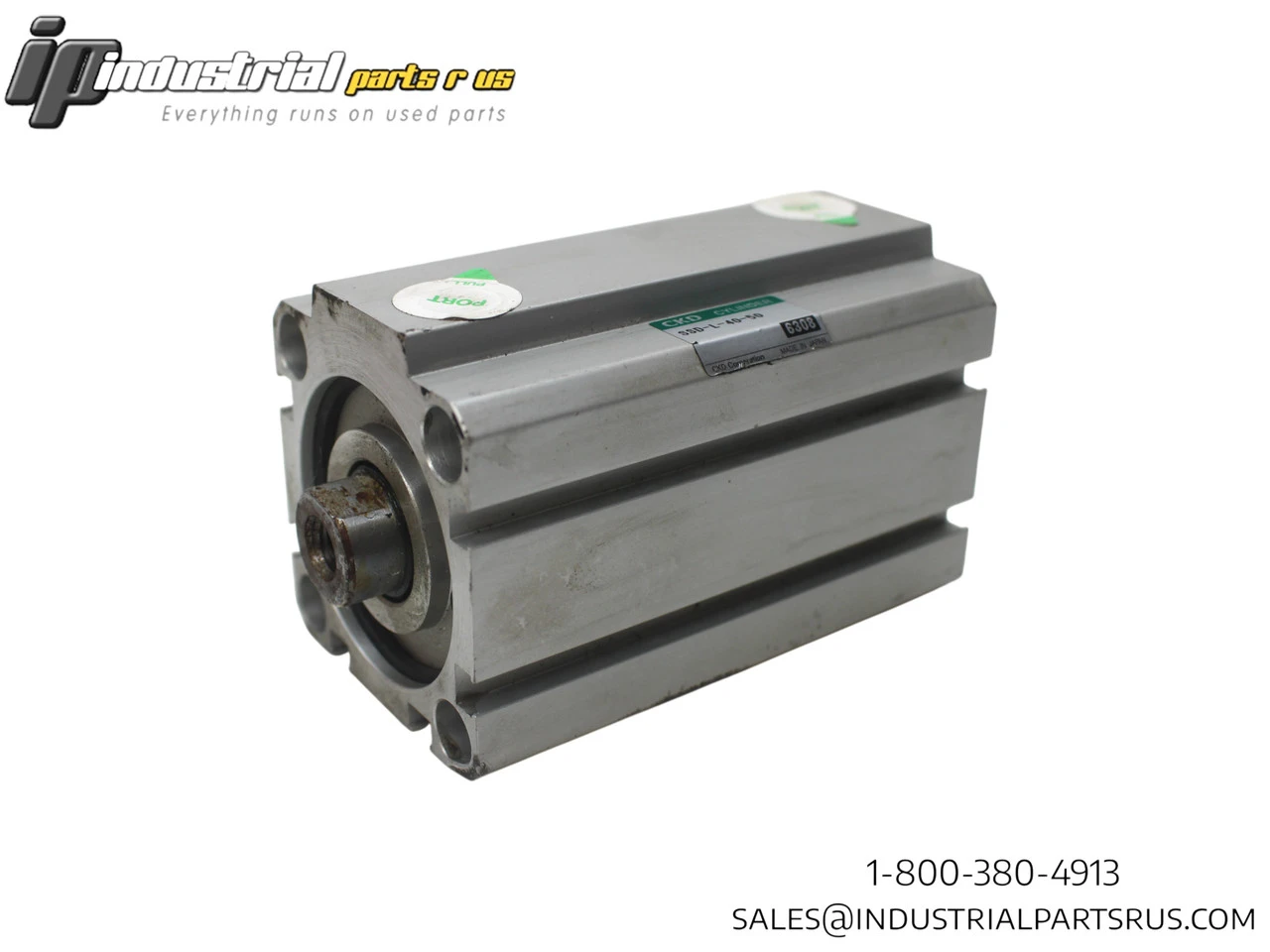

USED CKD CYLINDER SSD-L-40-50

This is a square, space saving cylinder that integrates the cylinder switch into the body for shorter total length.
The
space saving series with a wide range of stroke lengths and switch mounting surface options compared with conventional models. A widely varied series of space-saving cylinders, suitable for everything from general environments to specific applications.
40mm bore diameter with 50mm stroke length
Double acting operation using compressed air with maximum working pressure of 1.0 MPa (≈150 psi, 10 bar)
Rod ends can be selected from two options: female thread (standard) and male thread (option)
The T type switch used in many CKD products can be mounted on cylinders of all bore sizes
Square-shaped compact design for space efficiency
Space saving compact cylinder. Miniature switches are simply integrated into main body. Switch can be installed from 3 sides.
Ideal for automation systems, industrial machinery, and manufacturing applications requiring compact pneumatic actuation with reliable position sensing capability.

SKU: AI0022
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Country/Region of Manufacture: Japan
Manufacturer: Ckd Cylinder
Part Number: SSD-L-40-50
Shelf: B-6
Model: SSD-L-40-50
MPN: SSD-L-40-50
Type: Pneumatic Air Cylinder
