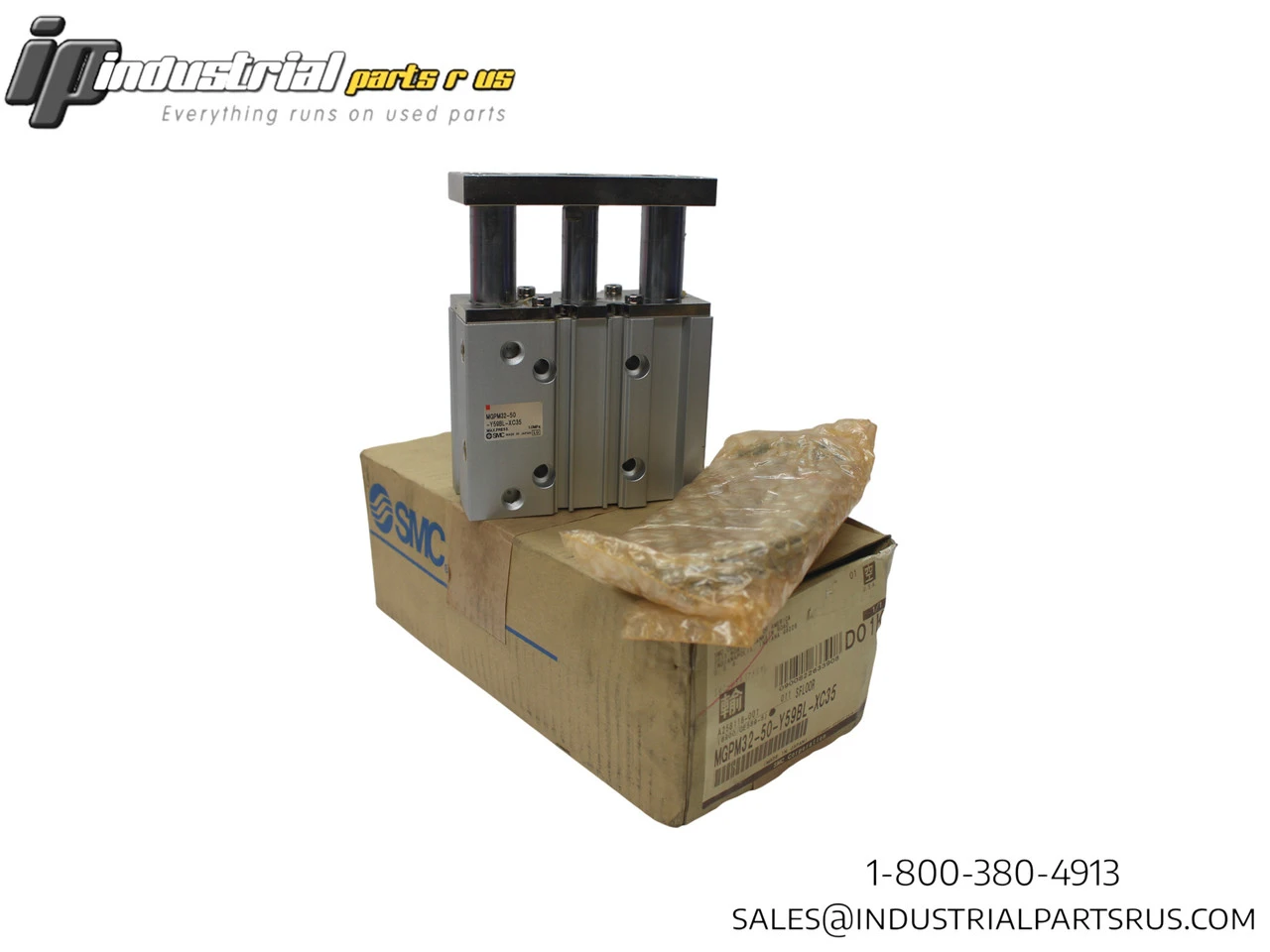

NEW SMC MGPM32-50-Y59BL-XC35

The SMC MGPM32-50-Y59BL-XC35 is a compact guided pneumatic cylinder designed for precision applications requiring high side load resistance and lateral stability. This double-acting cylinder features an internal guide shaft design that isolates load bearing from the actuator rod movement, making it ideal for material handling, lifting, and precision stopping applications.
Specification
Value
Brand
SMC
Model Number
MGPM32-50-Y59BL-XC35
Series
MGP Compact Guide Cylinder
Bore Diameter
32mm
Stroke Length
50mm
Action Type
Double Acting
Bearing Type
Slide Bearing
Maximum Operating Pressure
1.0 MPa
Proof Pressure
1.5 MPa
Port Thread
M5 x 0.8
Operating Temperature
-10°C to 60°C
Piston Speed
50 to 500 mm/s
Non-Rotating Accuracy
±0.06°
Built-in Magnet
Yes
Special Features
XC35 Environmental Resistance
We warranty all items for 30 days from date of purchase.

SKU: AI0032
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 6.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: Japan
Max. Operating Pressure: 1.0 MPa
Max. Pressure: 1.0 MPa
Stroke: 50mm
Bore Diameter: 32mm
GTIN: 679523686161
Manufacturer: SMC
Part Number: MGPM32-50-Y59BL-XC35
Shelf: B-4
Model: MGPM32-50-Y59BL-XC35
MPN: MGPM32-50-Y59BL-XC35
Type: Pneumatic Air Cylinder
