USED PEPPERL-FUCHS ML17-8-450/115/136

This

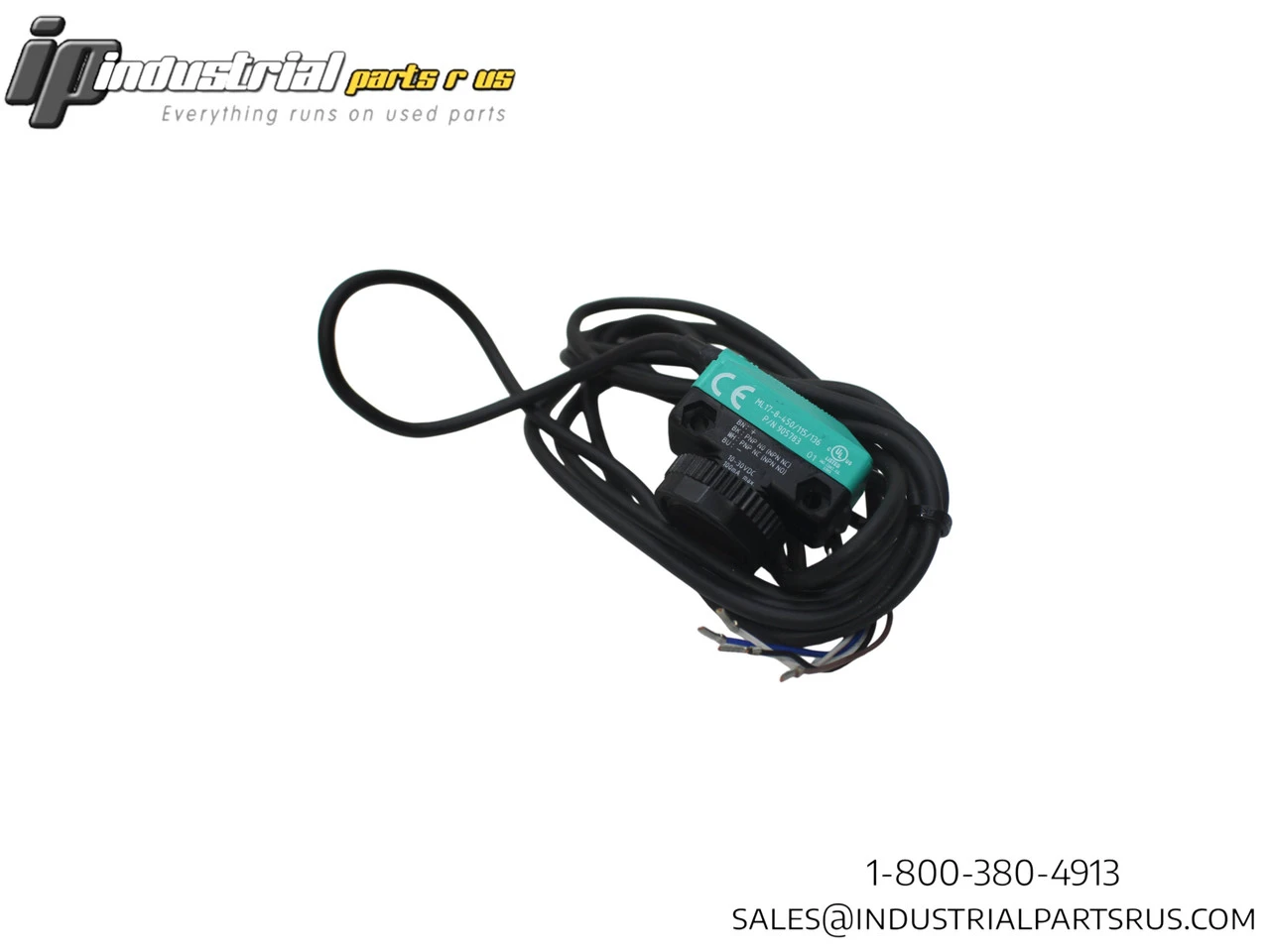

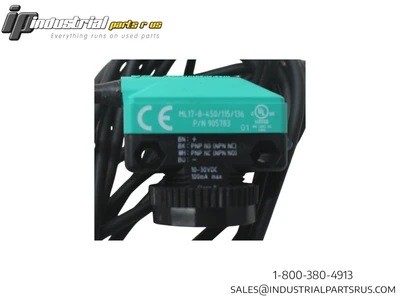

Pepperl+Fuchs ML17-8-450/115/136 is a diffuse mode photoelectric sensor featuring compact housing, 360° visibility LEDs, and adjustable sensing range
.
Part of the Tru-Vue™ series, these sensors are designed as economical, compact all-purpose photoelectric sensors with industry-standard housings for simplified mounting
.
The sensor features 4-in-1 output that auto-selects NPN or PNP
, making it ideal for industrial automation applications requiring reliable object detection.
Specification
Value
Brand
Pepperl+Fuchs
Model Number
ML17-8-450/115/136
Series
ML17 Tru-Vue
Sensing Method
Diffuse Mode
Sensing Range
10-450mm
Adjustment Range
60-450mm
Light Source
Infrared LED (950nm)
Supply Voltage
10-30V DC
Output Type
4-in-1 (Auto PNP/NPN)
Output Configuration
Light-On/Dark-On
Response Time
≤ 1.0ms
Switching Frequency
500Hz
Connection Type
4-pin M12 x 1 Connector
Housing Material
Polycarbonate (ABS)
IP Rating
IP67
Dimensions
29.3 x 15 x 34.5mm
Operating Temperature
-20°C to +55°C
Threading
M18 x 1
Indicators
360° LEDs (Green Power, Yellow Function)
We warranty all items for 30 days from date of purchase.

SKU: AI0024
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: PNP/NPN
Manufacturer: Pepperl-Fuchs
Part Number: ML17-8-450/115/136
Shelf: N-9
Model: ML17-8-450/115/136
MPN: ML17-8-450/115/136
Type: Industrial Proximity Sensor
