Machine Description

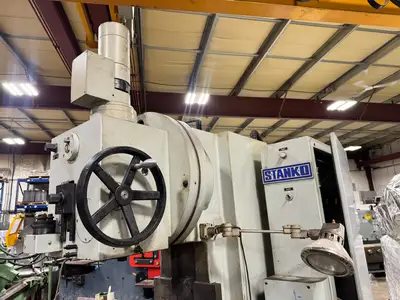

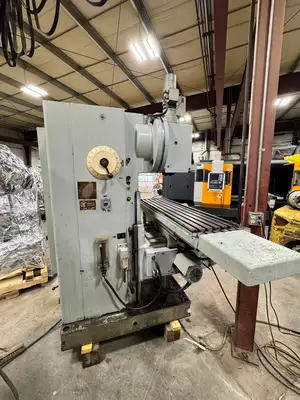

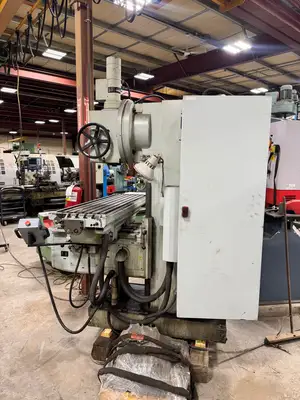

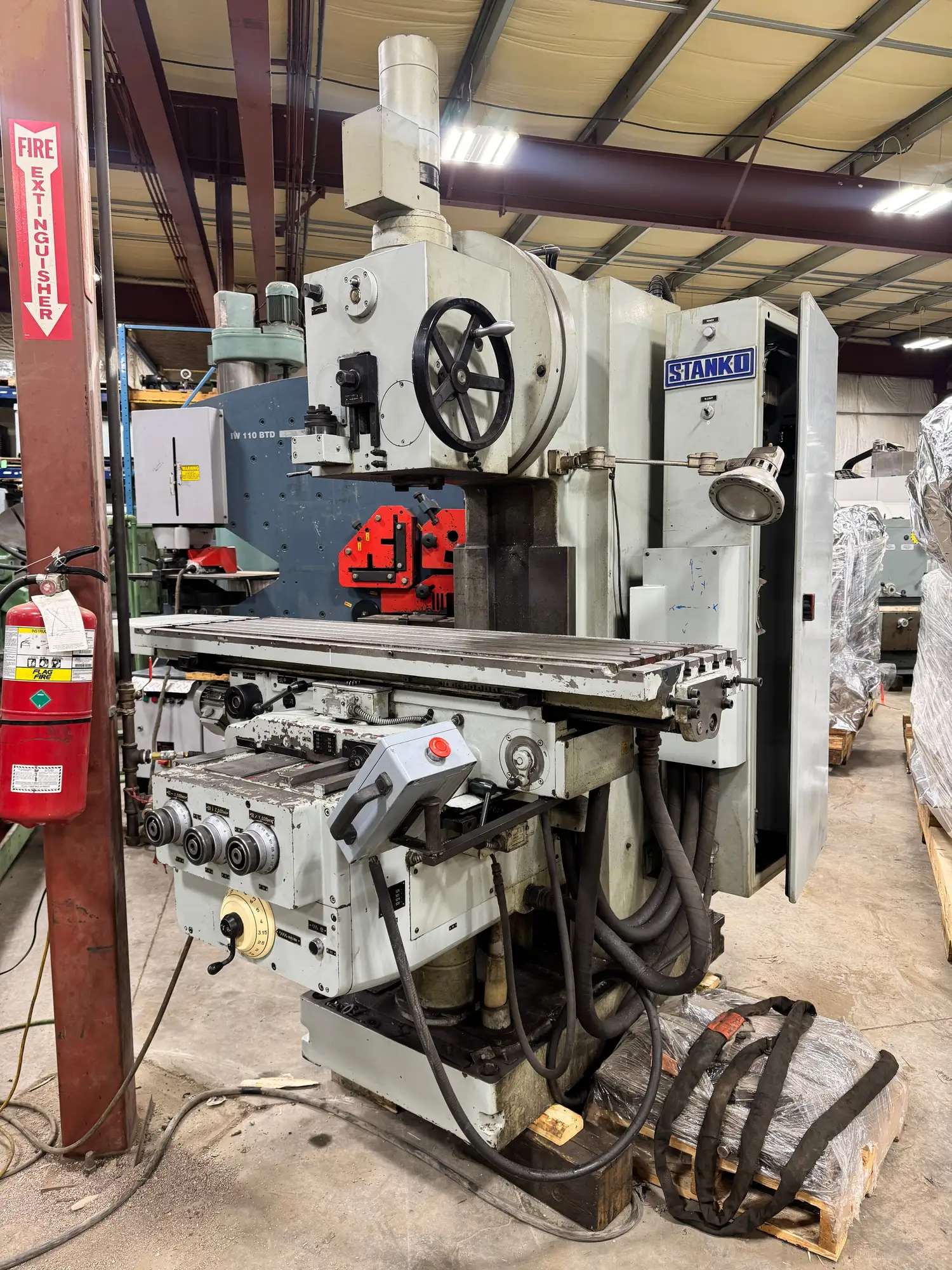

Heavy-duty STANKO BGV-375 vertical milling machine (factory model FSS315-3), built in 1997 in Europe and supplied by Stan Canada, designed for powerful metal cutting on long workpieces. The large 1600 × 315 mm (63" × 12.4") table with power feeds on X, Y and Z makes this mill suitable for toolrooms and production shops alike. ISO 50 spindle, wide speed range and rigid construction allow aggressive roughing as well as accurate finishing. This model is a popular choice in Canada for industrial machining, repair and fabrication shops looking for a robust manual mill with automatic cycle capability. Centralized lubrication, pendant control and generous travels provide a versatile platform for fixtures, vises and rotary tables.
Specification
Machine: STANKO Vertical Milling Machine

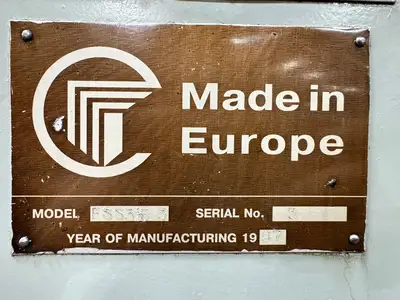

Model / Type: BGV-375 (factory model FSS315-3)
Serial No.: 3
Year of Manufacturing: 1997
Country of Origin: Europe
Table
Table size: 1600 × 315 mm (63" × 12.4")
Table type: rectangular, T-slotted
Travels
Table travel X (longitudinal): approx. 1000 mm (approx. 39.4")
Saddle travel Y (cross): approx. 320–400 mm (approx. 12.6"–15.7")
Vertical travel Z: approx. 400 mm (approx. 15.7")
Spindle
Spindle orientation: vertical
Spindle taper: ISO 50

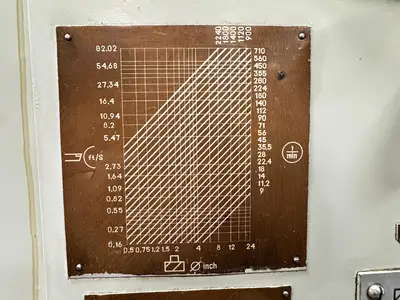

Spindle speed range: approx. 40–2000 rpm
Drive
Main spindle motor power: approx. 10–15 HP (approx. 7.5–11 kW)
Power feeds: X, Y, Z with pendant control and cycle buttons
Construction and features
Design: knee-type vertical mill with heavy column and base
Centralized lubrication system to ways

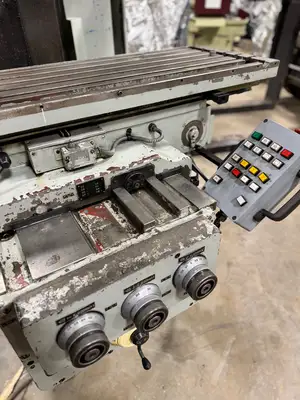

Pendant control station with cycle selection and axis buttons
Work light at machining area

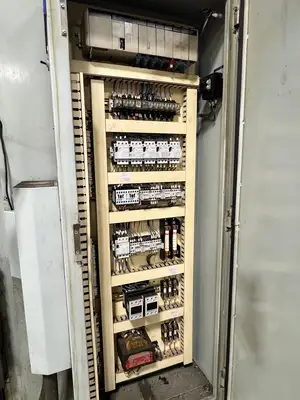

Electrical

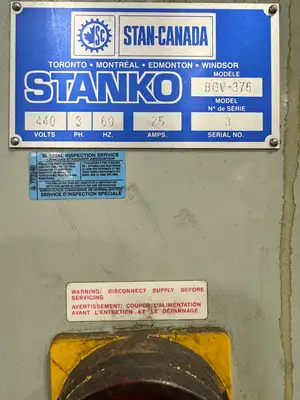

Power: 440 V, 3 Phase, 60 Hz
Full-load current: 25 A (approx. 19 kVA connected load)
CSA Special Inspection Service label
Main disconnect: rotary safety switch on cabinet front
Specifications are provided as guidance only. Buyer must verify all details prior to purchase. Stan Canada is not responsible for typographical or data-entry errors.
