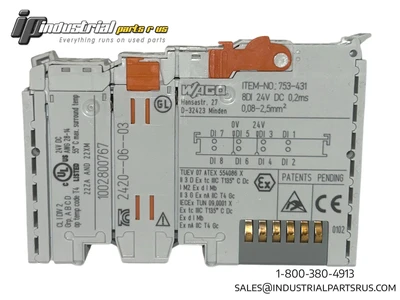

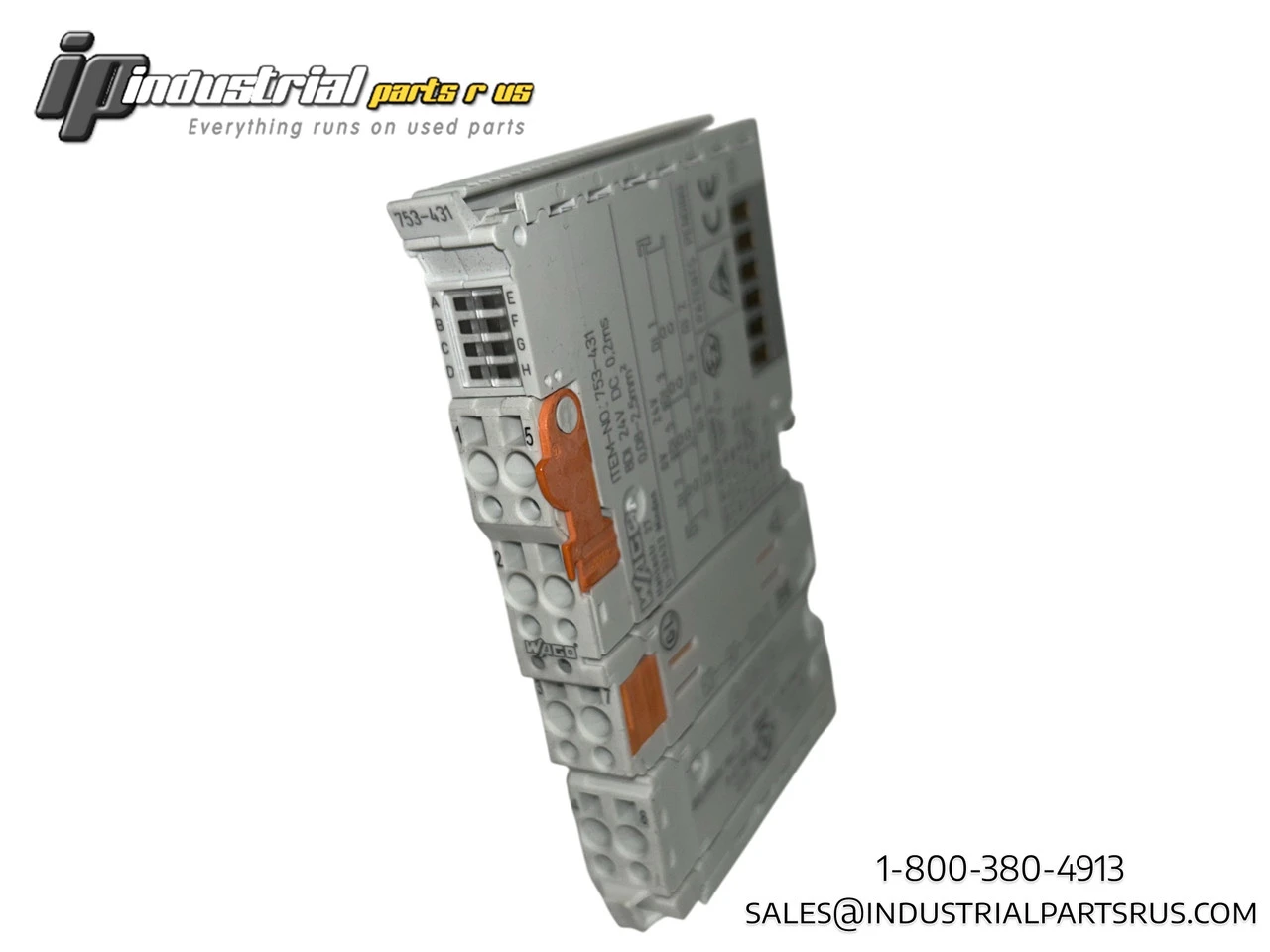

The WAGO 753-431 is a pluggable DC digital input slice module featuring 8 channels of 24VDC digital inputs with high-side switching and 1-wire configuration. It offers 0.2ms input filtering for fast response and includes LED status indicators for each input channel. The module mounts on DIN-35 rail and features push-in spring cage-clamp connections.
Specifications
8 x digital inputs, 24VDC transistor high-side switching
Input voltage range: -3...+5VDC (OFF) / 15-30VDC (ON)
Input filter time: 0.2ms
Supply voltage: 5VDC (supplied by system)
DIN-35 rail mounting, IP20 protection
Push-in spring cage-clamp connections
LED status indicators (A-D and E-H green LEDs)
Operating temperature: 0°C to +55°C ambient
| Weight | 1.00 LBS | 1.00 LBS |
SKU: IP16246
UPC: 721814248203
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Manufacturer: WAGO
Part Number: 753-431
Shelf: E-7 Tub 6
Model: 753-431
MPN: 753-431
Type: Digital Input Module
GTIN: 721814248203
