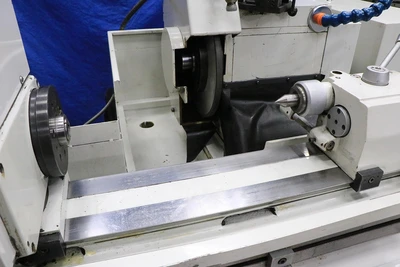

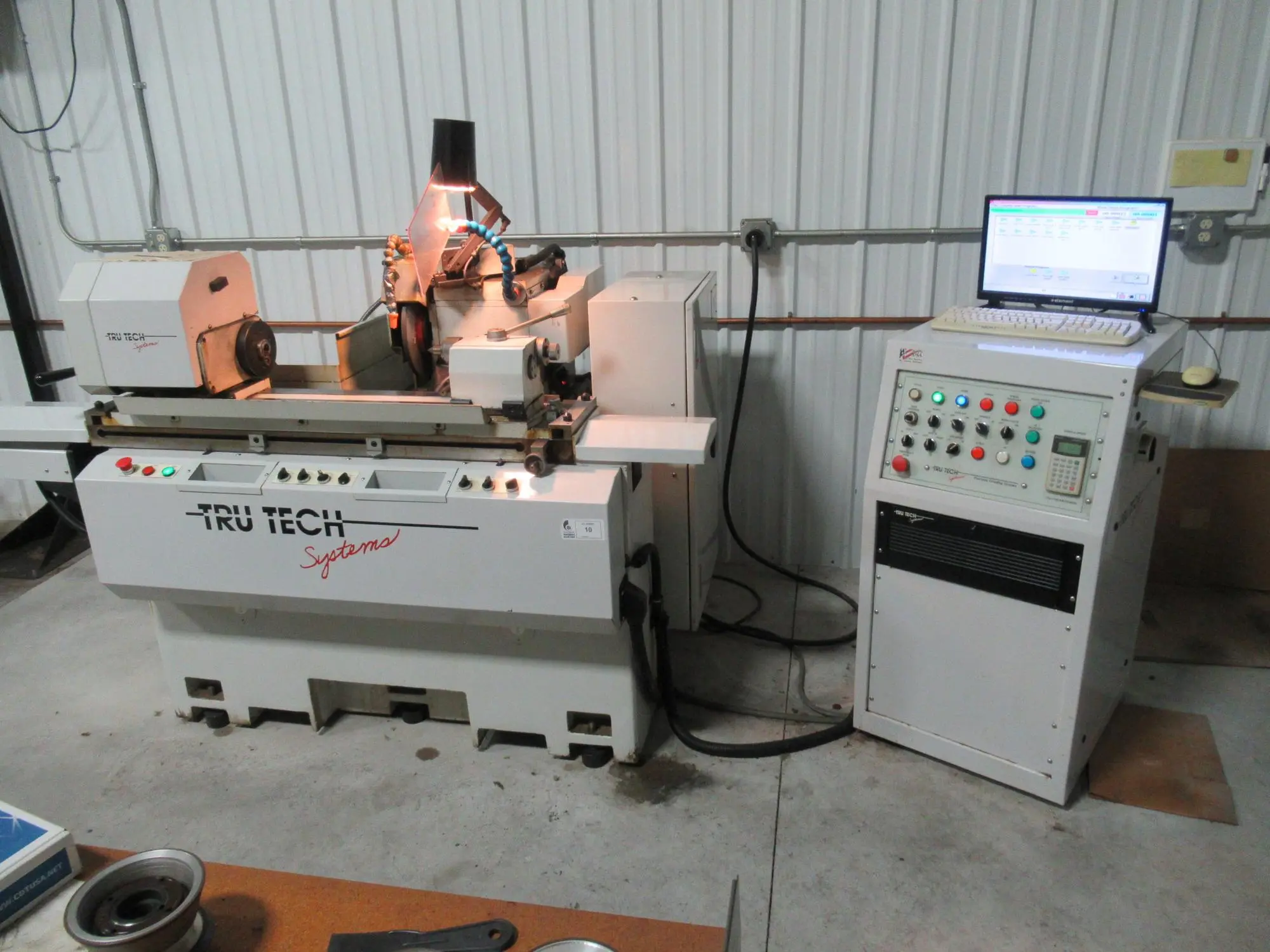

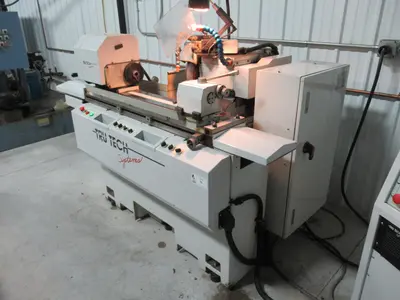

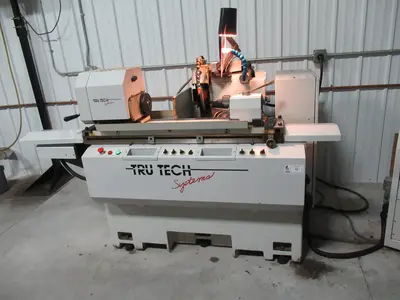

USED 2006 Tru-Tech TTS-8-20, 2006, RENISHAW TOUCH PROBE, ACCESSORIES

8" Swing 20" Centers Tru-Tech TTS-8-20, 2006, RENISHAW TOUCH PROBE, ACCESSORIES CNC OD GRINDER, 14" WHEEL, COOLANT,

               TRU TECH SYSTEMS CNC

           UNIVERSAL CYLINDRICAL GRINDER

MODEL:  TTS-OD-8-20    S/N: TTS-8080    NEW: 2006

MAXIMUM GRIND DIAMETER ......... 8"

DISTANCE BETWEEN CENTERS ....... 20"

STANDARD WHEEL SIZE ............ 14" DIAMETER,

                                  5" BORE,

                                  2.5" MAX. WHEEL WIDTH

GRINDING WHEEL SPEED ........... 500 - 3000 RPM

MAXIMUM VELOCITY, Y AXIS ....... 50" IPM

MAXIMUM VELOCITY, Z AXIS ....... 60" IPM

INPUT INCREMENT ................ 0.000010"

WHEEL SPINDLE MOTOR ............ 5 H.P. VARIABLE

GRINDING SPINDLE SPEEDS ........ 500 - 4,500 RPM

WORKHEAD SPINDLE SPEEDS ........ 50 - 800 RPM

WORKHEAD SWIVEL ADJUSTMENT ..... +/- 45 DEGREES

TABLE TAPER ADJUSTMENT ......... +/- 8 DEGREES

MACHINE FOOTPRINT .............. 60" x 60"

APPROXIMATE MACHINE WEIGHT ..... 4,500 LBS.

MACHINE FEATURES:

TRU TECH SYSTEMS CNC CONTROL

 - INDUSTRIAL COMPUTER WITH INDUSTRIAL SSD HARD DRIVE

 - INTEL PROCESSOR

 - LCD FLAT PANEL DISPLAY

TRU TECH SYSTEMS "PICK-N-PLACE" SOFTWARE/PROGRAMMING

 - SIMPLY DRAG MOVE ICONS INTO PLACE, EDIT

   THEIR VALUES AND START GRINDING

 - GRIND SHAPES & PROFILES

 - MULTIPLE DIAMOND & CBN WHEEL DRESSING CAPABILITIES

 - FULLY PROGRAMMABLE IN 10 MILLIONTHS GRADUATIONS

 - PROFILE GRIND, PLUNGE GRIND, PEEL GRIND

RIGID CAST IRON BASE

PRECISION BALLSCREWS

VARIABLE SPEED 5 H.P. GRINDING WHEEL SPINDLE, FULLY PROGRAMMABLE

VARIABLE SPEED 1/4 H.P. WORKHEAD, FULLY PROGRAMMABLE

WORKHEAD IS A 5C COLLET SPINDLE

MACHINE IS WIRED FOR 3/60/220 VOLTS, 14.7 AMPS SERVICE

OPTIONAL EQUIPMENT WITH THIS MACHINE:

"RENISHAW" "LP2" TOUCH PROBE, LATERAL LOCATOR

6-JAW CHUCK

QUICK ACTING LEVER TYPE 5C COLLET CLOSER

DRESSER MOUNTED ON TAILSTOCK, UNDERNEATH TAILSTOCK SPINDLE

GRINDING WHEEL BALANCING STAND

GRINDING WHEEL BALANCING ARBOR

DIAMOND WHEEL ON THE MACHINE PRESENTLY

(2) ADDITIONAL WHEEL HUBS

EXTRA GRINDING WHEELS, INCLUDING (1) DIAMOND WHEEL

WORK LIGHT

COOLANT SYSTEM WITH "EBBCO" FLUID CONDITIONING FILTER

MACHINE TOOL MANUAL/BOOK

PARTS & SERVICE AVAILABLE FROM OUR FRIENDS AT:

       "STAR CUTTER COMPANY",

  OEM FOR THE TRU TECH GRINDERS

https://starcutter.com/tool-grinders/tru-tech-grinders/

LINK TO VIDEO:https://youtu.be/hmlZsf7hMnM?si=vW__DPnCIbso1NeK

** EXCEPTIONAL CONDITION & APPEARANCE - ALL ORIGINAL **

** JUST ARRIVED TO OUR HARRISON, NJ WAREHOUSE  **

** INSPECT UNDER POWER IN OUR WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
