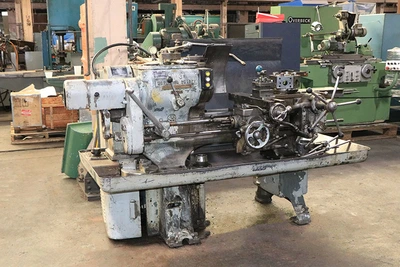

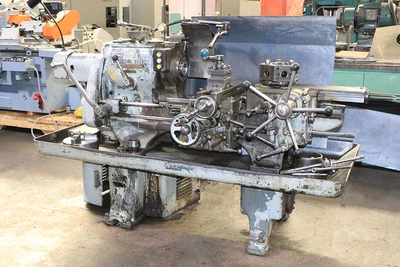

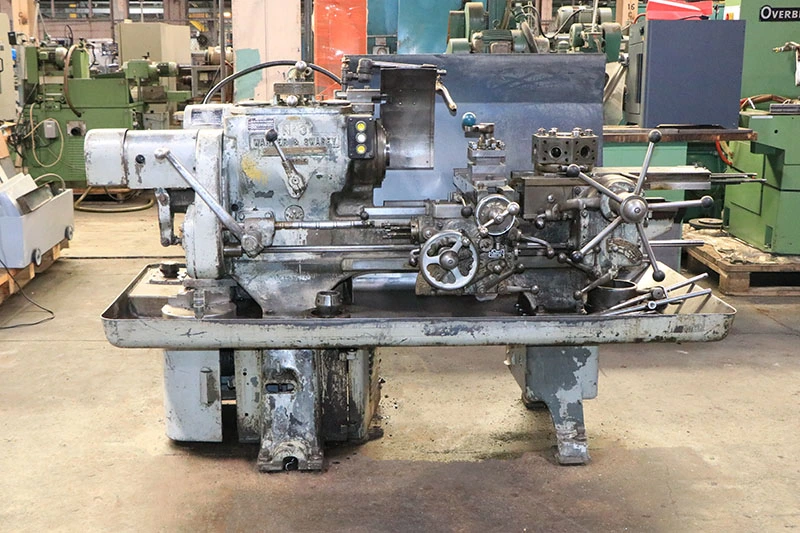

USED 1954 Warner & Swasey #3 M-1200 Ram Type turret Lathe

Warner & Swasey #3 M-1200 Ram Type turret Lathe TURRET LATHE

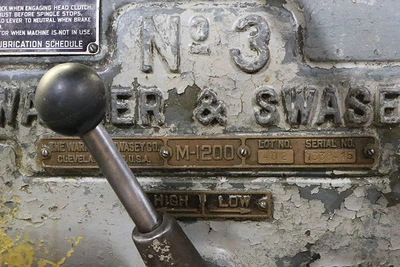

#3 W&S UNIVERSAL RAM-TYPE TURRET LATHE,

MODEL M-1200, S/N 1338415, MFG: 1954

SPECIFICATIONS:

MAXIMUM SWING OVER BED ................... 15-3/8"

MAXIMUM SWING OVER GUIDES ................ 13-1/4"

MAXIMUM SWING OVER CROSS SLIDE ........... 7"

BAR CAPACITY:

    ROUND ................................ 1-1/2"

    SQUARE ............................... 1-1/16"

    HEXAGONAL ............................ 1-5/16"

HOLE IN COLLET CHUCK PLUNGER ............. 1-9/16"

HOLE THROUGH SPINDLE ..................... 1-27/32"

SPINDLE NOSE, AMERICAN STANDARD, FLANGED .. 6"

MAX DISTANCE SPINDLE TO FACE OF TURRET .. 24-1/4"

CROSS SLIDE TRAVELS:

    LONGITUDINAL ....................... 17-1/4"

CROSS    .............................. 8"

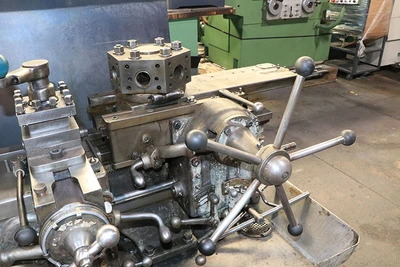

HEXAGON TURRET TRAVELS:

    MAXIMUM TRAVEL AT ONE SETTING ...... 10"

CROSS SLIDE FEEDS:

    LONGITUDINAL, SIX CHANGES .......... .003-.030 I.P.R.

    CROSS, SIX CHANGES ................. .0025-.026 I.P.R.

HEXAGON TURRET FEEDS, SIX CHANGES ........ .003-.030 I.P.R.

(12) SPINDLE SPEEDS ...................... 67-1,480 R.P.M.

APPROXIMATE WEIGHT ....................... 3,000 LBS.

EQUIPPED WITH:

- PRESELECTOR HEAD FOR SELECTION OF SPINDLE SPEEDS INCLUDING

SELECTION OF NEXT SPINDLE SPEED WHILE MACHINE IS CUTTING

HARDENED & REPLACEABLE STEEL BED WAYS

- 10" DIAMETER THREE-JAW CHUCK

- SQUARE TURRET-TYPE TOOLPOST

- SIX-POSITION TURRET-TYPE CARRIAGE STOP

- SELF-CONTAINED COOLANT SYSTEM w/ FULL LENGTH REAR SPLASH GUARD

- 3.75 - 7.5 H.P. 3/60/220V  TWO-SPEED DRIVE MOTOR & ELECTRICAL CONTROLS

FOR MORE INFORMATION: Call David at 973-497-7570
