USED SMC CDQ2B50-25D-F7BVL-X838
Overview

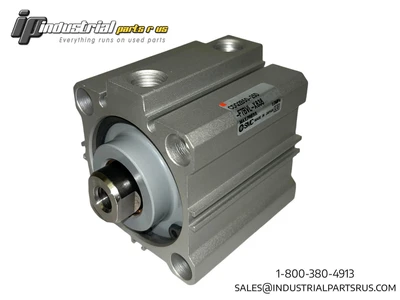

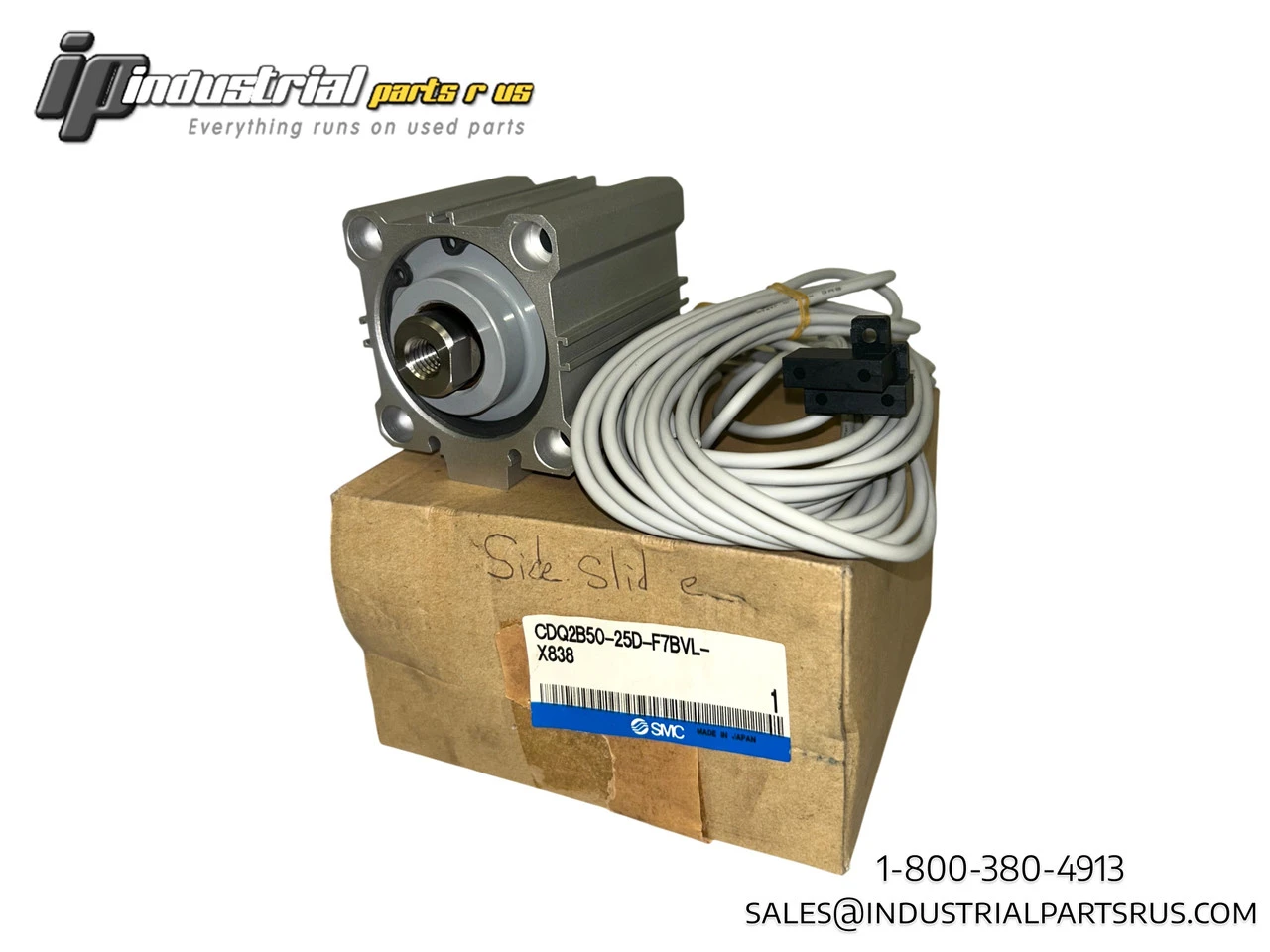

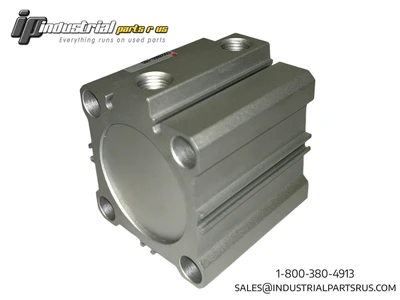

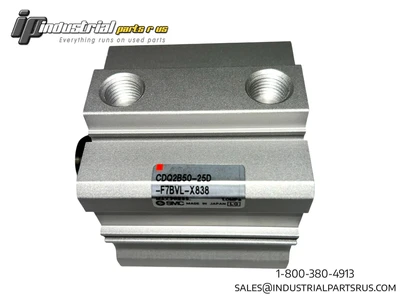

The SMC CDQ2B50-25D-F7BVL-X838 is a standard double acting, single rod compact pneumatic cylinder from the CQ2 series. This space-saving cylinder features a 50mm bore size and 25mm stroke length, equipped with an F7BVL rail-mounted solid state auto switch for position sensing. Designed with a compact body and through-hole mounting style, it supports auto switch mounting on multiple surfaces and operates at a maximum pressure of 1.0 MPa.
Specifications
Series: CQ2 Compact Cylinder
Bore Size: 50mm
Stroke Length: 25mm
Action: Double Acting, Single Rod
Mounting Style: Through-hole
Auto Switch: D-F7BVL Solid State, Rail Mounting
Maximum Operating Pressure: 1.0 MPa (145 PSI)
Port Thread Type: Rc/M Thread
Rod End: Male Thread
Built-in Magnet: Yes
Manufacturer: SMC Corporation
Specs
SKU: IP16221
UPC: 721814247855
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814247855
Max. PSI: 145 PSI
Max. Operating Pressure: 1.0 MPa
Useraction: Double Acting
Manufacturer: SMC
Max. Pressure: 1.0 MPa
Part Number: CDQ2B50-25D-F7BVL-X838
Shelf: B-10
Stroke: 25mm
Bore Diameter: 50mm
Model: CDQ2B50-25D-F7BVL-X838
MPN: CDQ2B50-25D-F7BVL-X838
Type: Compact Pneumatic Cylinder with Auto Switch
