USED REMKE CDQ2A50-100D-F7BVL-X838

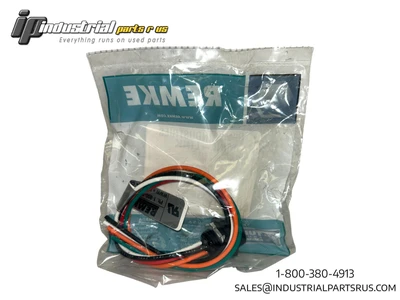

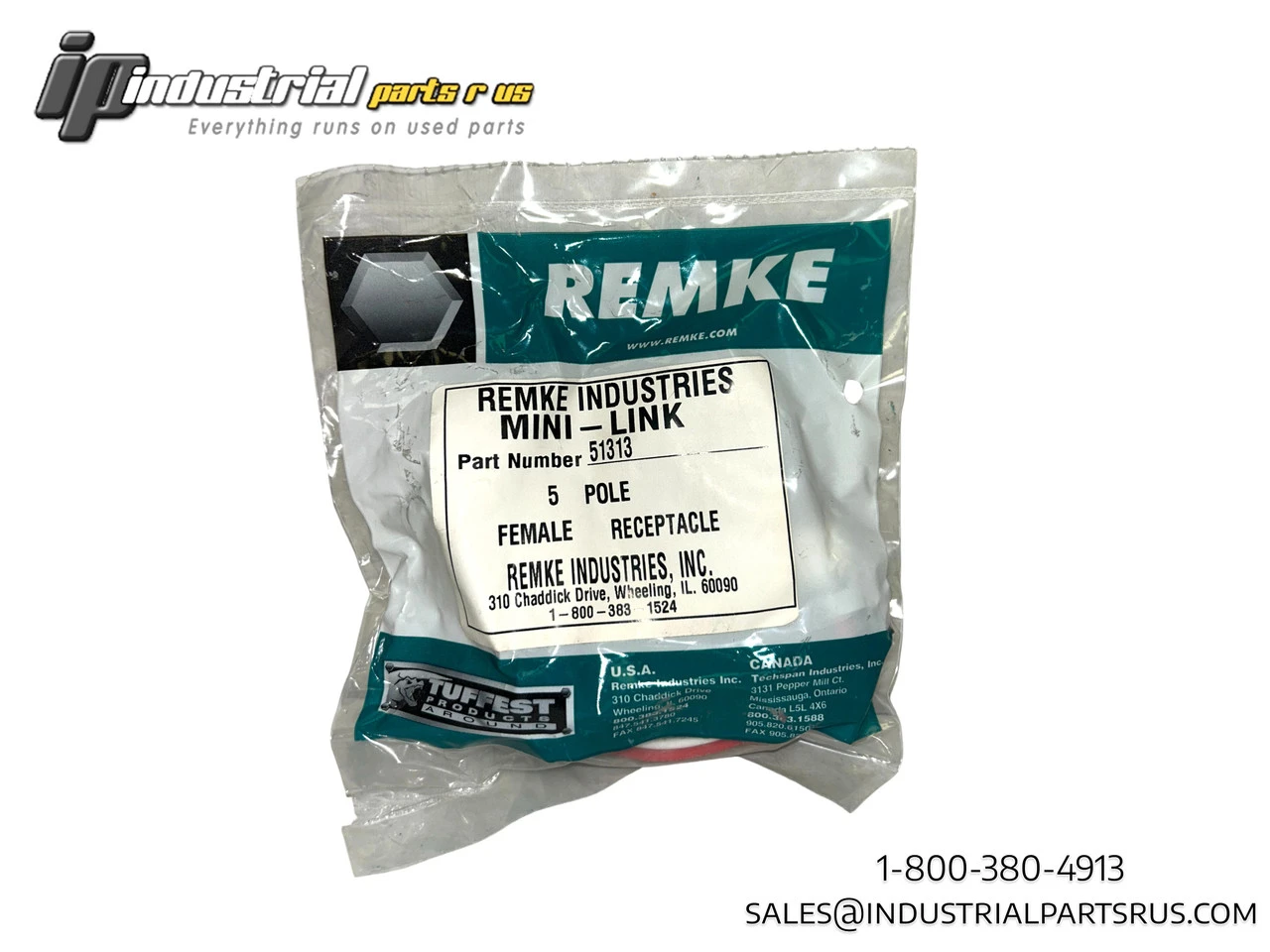

The Remke 105Q0010M is a Mini-Link molded receptacle connector designed for applications requiring flexibility and resistance to harsh industrial environments. This female connector features a 5-pole configuration with 1-foot pigtail leads and PVC construction for general industrial use. Ideal for automation, machinery, and equipment connections where durability and environmental protection are essential.
Specifications
Part Number: 105Q0010M (replaces old part number 51313)
Connector Type: Mini-Link Receptacle, Female
Pole Configuration: 5 Pole
Hub Size: 1/2 inch NPT
Cable Length: 1 foot pigtail leads
Wire Gauge: 16/1 AWG
Material: PVC (Polyvinyl Chloride)
Environmental Protection: IP68, NEMA 6P rated
Operating Temperature Range: -20°C to 105°C (-4°F to 221°F)
Contact Material: Nickel coated then gold-plated for corrosion resistance
Certifications: UL Recognized File No. E165657, CSA Certified
Applications: General industrial automation, machinery, equipment connections
Features: Attachable design for field wiring flexibility

SKU: IP16219
UPC: 721814247824
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814247824
Country/Region of Manufacture: USA
Manufacturer: Remke
Shelf: O-8
Model: CDQ2A50-100D-F7BVL-X838
MPN: 105Q0010M
Type: Connector
