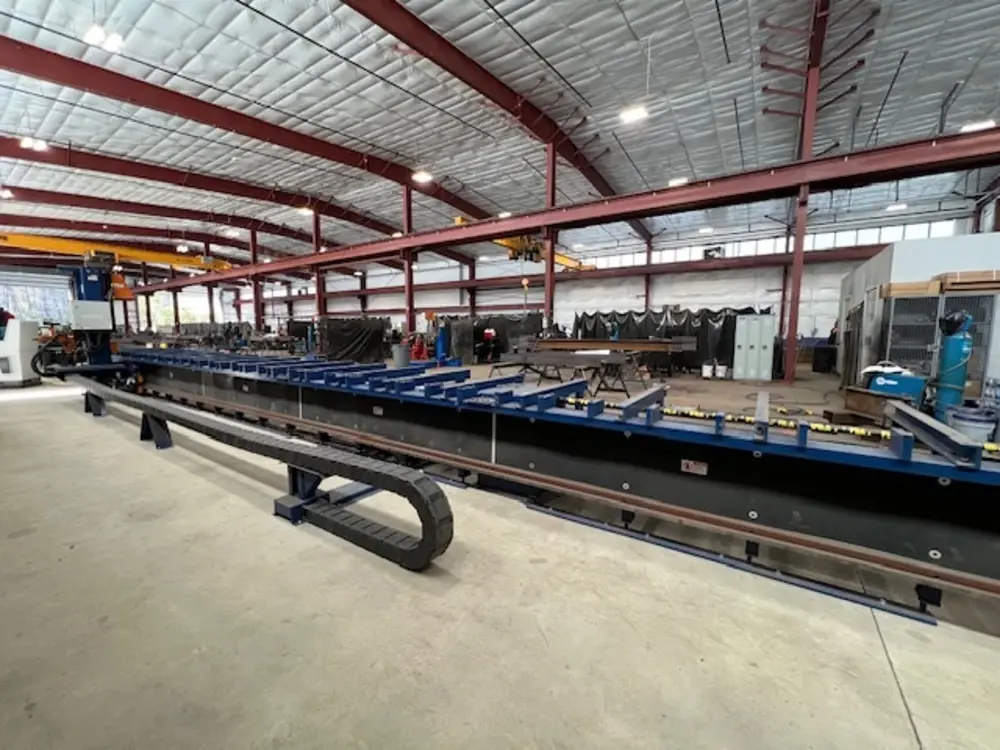

PEDDINGHAUS OCEAN AVENGER CNC BEAM DRILL LINE

Equipped With
PEDDINGHAUS OCEAN AVENGER CNC BEAM DRILL LINE
New: 2021
Specifications:
Maximum Beam Height:  Up to 40 in
Maximum Beam Length:  Up to 60 ft
Maximum Hole Diameter:  1-9/16 in (40 mm)
Minimum Hole Diameter:  Approximately 1/4 in
Maximum Material Thickness:  Up to approximately 10 in
Spindle:
Spindle Motor:  13.5 HP
Spindle Speed:  Variable speed ranges depending on configuration (e.g., 0–545 RPM or 200–850 RPM)
Axis Performance:
X/Y Axis Speed:  Up to approximately 120 ft/min
Accuracy:  High precision, typically within ±1/32 in over full beam length
Operation & Control:

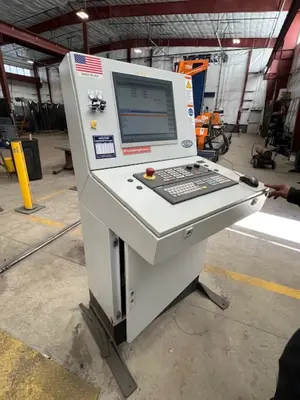

Control Type:  CNC-controlled beam drilling line
Axis Drive:  Servo-driven positioning
Drilling Function:  Automatic feed with breakthrough detection
Safety:

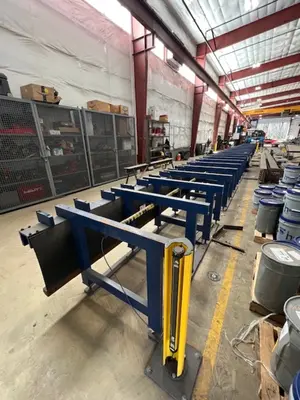

Safety System:  60 ft safety light curtain covering infeed and outfeed areas
Key Benefits:
Efficiency:  Automates complex layout and drilling operations, significantly faster than manual methods
Accuracy:  Reduces layout and drilling errors, improving fit-up in the field
Space Saving:  Fixed table design minimizes overall floor space requirements
