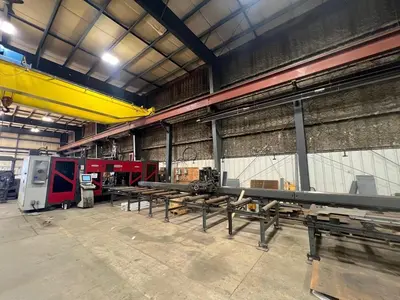

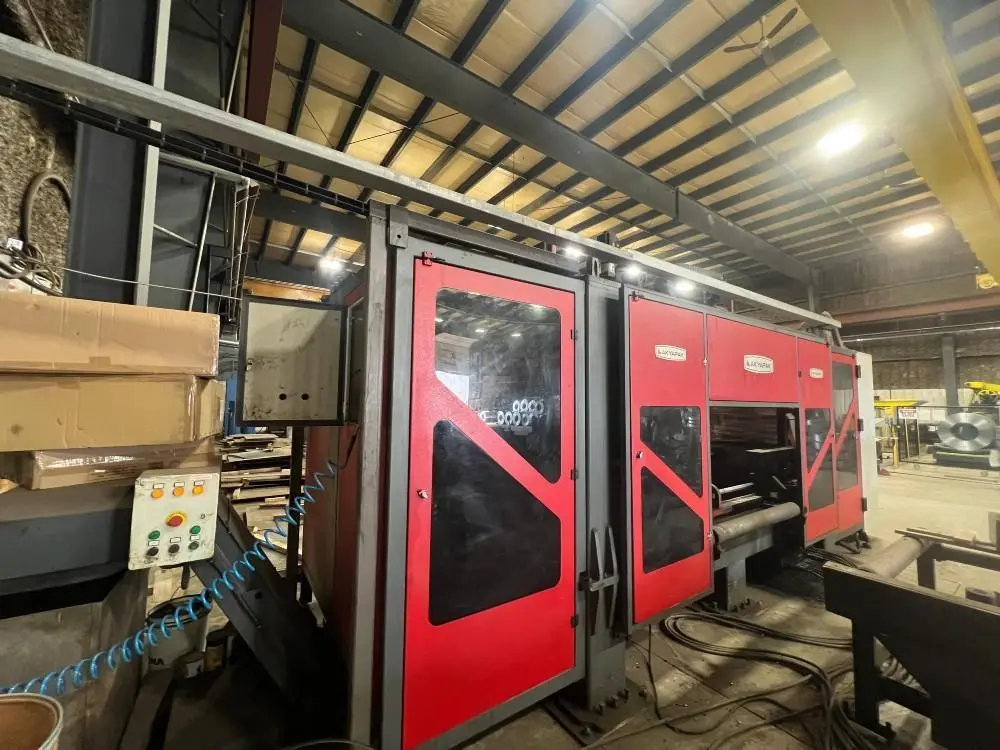

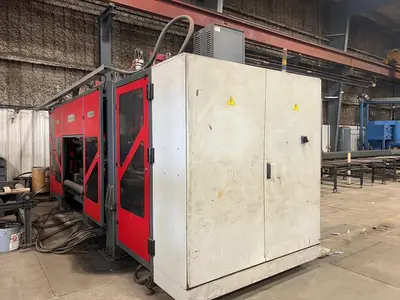

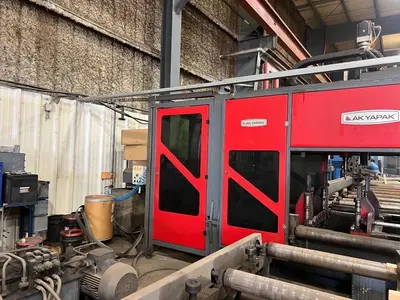

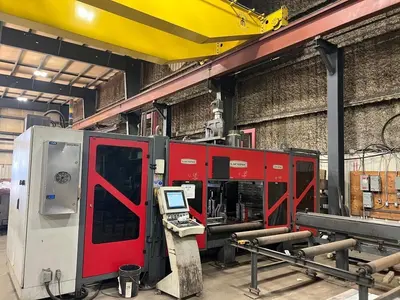

AKYAPAK 3-ADM CNC BEAM DRILLING LINE

Equipped With
AKYAPAK 3-ADM CNC BEAM DRILLING LINE
New: 2015
Specifications:
Number of Vertical Drilling Units:  1
Number of Horizontal Drilling Units:  2
Total Spindles:  3
Drilling Diameter Range:  3/8 in – 1-1/2 in
Max Operating Length:          40ft
Spindle Speed Range:  50 – 3000 RPM
Spindle Motor Power:  30 HP
Maximum Spindle Torque:  206 lbf-ft
Tool Cooling System:  MQL (Minimum Quantity Lubrication)
Maximum Beam Width:  48 in
Maximum Beam Height:  20 in
Horizontal Working Plane:  20 in without repositioning
Overall Dimensions:
Approximate Size:  7.9 ft × 23.0 ft × 10.5 ft
Equipped With:
Mitsubishi CNC Control
(3) Drilling Spindles
Automatic Tool Changer for Each Spindle (4 Tools per Spindle)
Material Feeding Arm
Robust Material Clamping System
30 HP Spindle Motor
